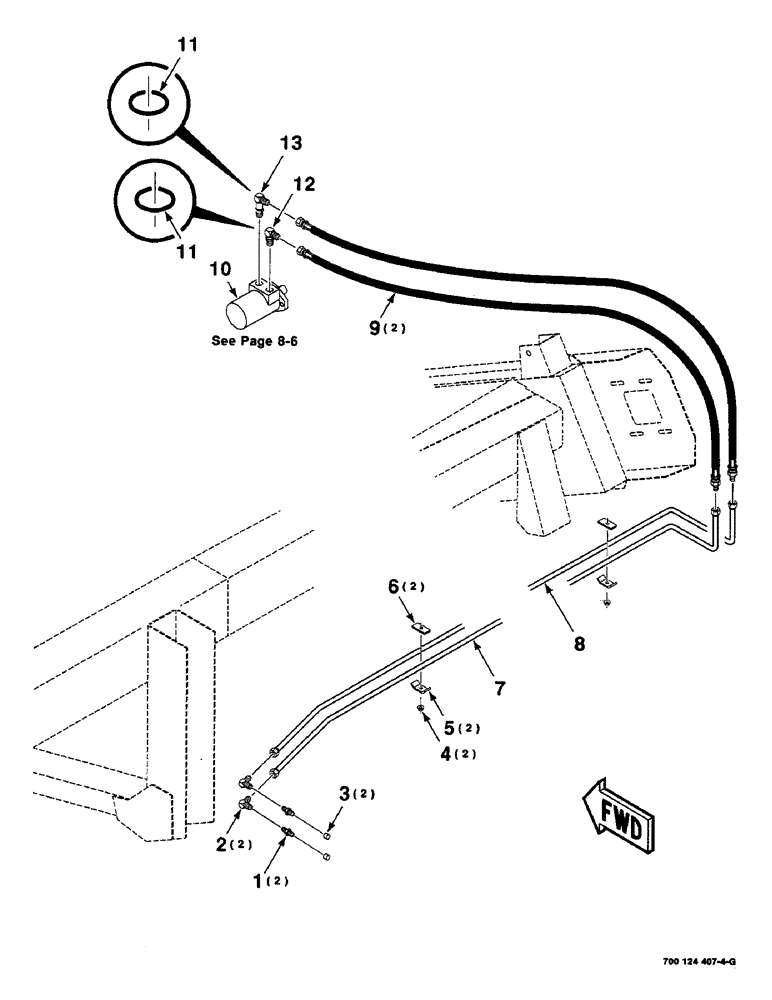

Запчасти Case IH 8820 (8-04) - HYDRAULIC ASSEMBLY, REEL DRIVE, 21 FOOT ONLY (35) - HYDRAULIC SYSTEMS

1

700707494

ADAPTER

FITTING - adapter

2шт.

2

700707491

ELBOW

FITTING - elbow

2шт.

3

746677

CAP

- 1/2 NPT

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

5

700102292

CLAMP

- line

2шт.

6

700121168

PAD

2шт.

7

700711891

TUBE

LINE - hydraulic (21 Foot)

1шт.

8

700711888

TUBE

LINE - hydraulic (21 Foot)

1шт.

9

700710185

HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm, SAE 100R2

12.70 mm ID x 1350.00 mm, SAE 100R2

2шт.

10

700707341

HYDRAULIC MOTOR

MOTOR ASSEMBLY - hydraulic

1шт.

11

738468

O-RING

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - elbow (Incl. item 11)

1шт.

13

700701939

ELBOW

FITTING - elbow (Includes item 11)

1шт.
