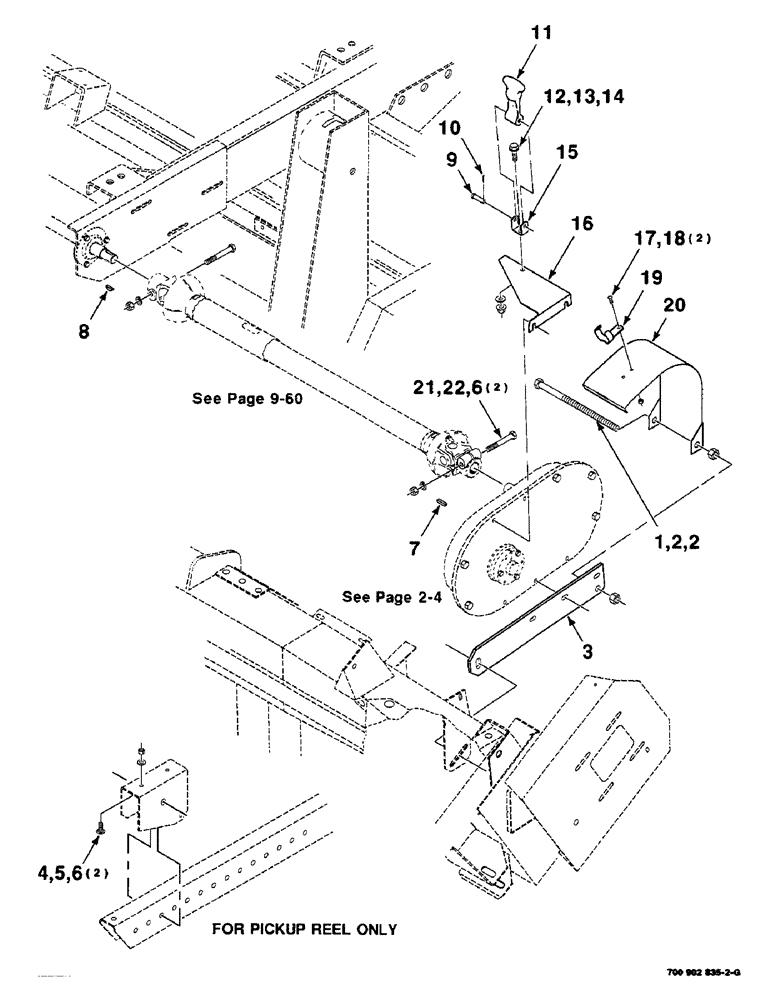

Запчасти Case IH 8820 (9-058) - CHAINBOX, SHIELD, AND DRIVELINE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

1шт.

2

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

700124361

STRAP

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

1707058

KEY

1/4 X 1-1/4 RD END KEY

1шт.

8

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

1шт.

10

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

11

494307C1

LATCH

HOOK

1шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

13

700710049

WASHER

3/8 FENDER WASHER

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

15

776674

SUPPORT

BRACKET

1шт.

16

700124363

ANGLE

1шт.

17

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHSM

2шт.

18

225-14110

NUT,#10-24

2шт.

19

7025075

BRACKET

1шт.

20

700124364

SHIELD

1шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.
