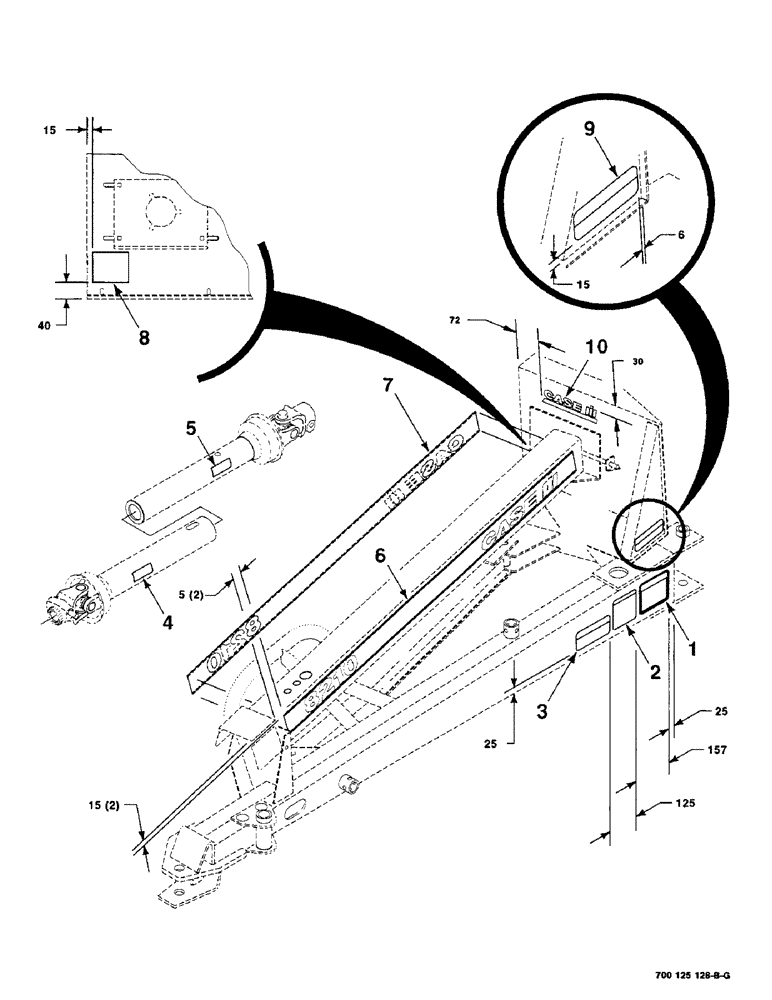

Запчасти Case IH 8240 (9-04) - DECALS AND LOCATION, TONGUE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700714229

DECAL

- warning

1шт.

2

878157

DECAL

1шт.

3

779199

DECAL

1шт.

4

80672C1

DECAL

- danger

1шт.

5

1326528C1

DECAL

- danger

1шт.

6

700714347

DECAL

- combo, 8210, left

1шт.

700714353

DECAL

- combo, 8220, left

1шт.

700714320

DECAL

- combo, 8230, left

1шт.

700714358

DECAL

- combo, 8240, left

1шт.

7

700714349

DECAL

- combo, 8210, right

1шт.

REF..7--8210 FOR THE RIGHT HAND DECAL, SHOULD BE PN 700714348.....700714349 IS FOR THE REAR

1шт.

700714355

DECAL

- combo, 8220, right

1шт.

ITem 7a, 700714355 , 8220 right hand , s/b 700714354 cam djo 10/6/98

1шт.

700714322

DECAL

- combo, 8230, right

1шт.

700714356

DECAL

- combo, 8240, right

1шт.

REF 7C, P/N 700714356, 8240 RH, S/B 700714357 PER PRINT JBEDFORD 8/17/99. P/N 700714356 IS THE REAR COMBO DECAL 800 MM LG X 76 MM HIGH.

1шт.

8

700710598

DECAL

- flotation

1шт.

9

7778368

DECAL

1шт.

10

192448A2

DECAL - CASE IH

1шт.

REF ITEM 10-P/N S/B 192849A1. SEE COMMENTS AGAINST P/N 91401C1 WHICH IS THE P/N SHOWN IN THE HARDCOPY OF THE 8220 PARTSBOOK. JBEDFORD 8/10/98.

1шт.
