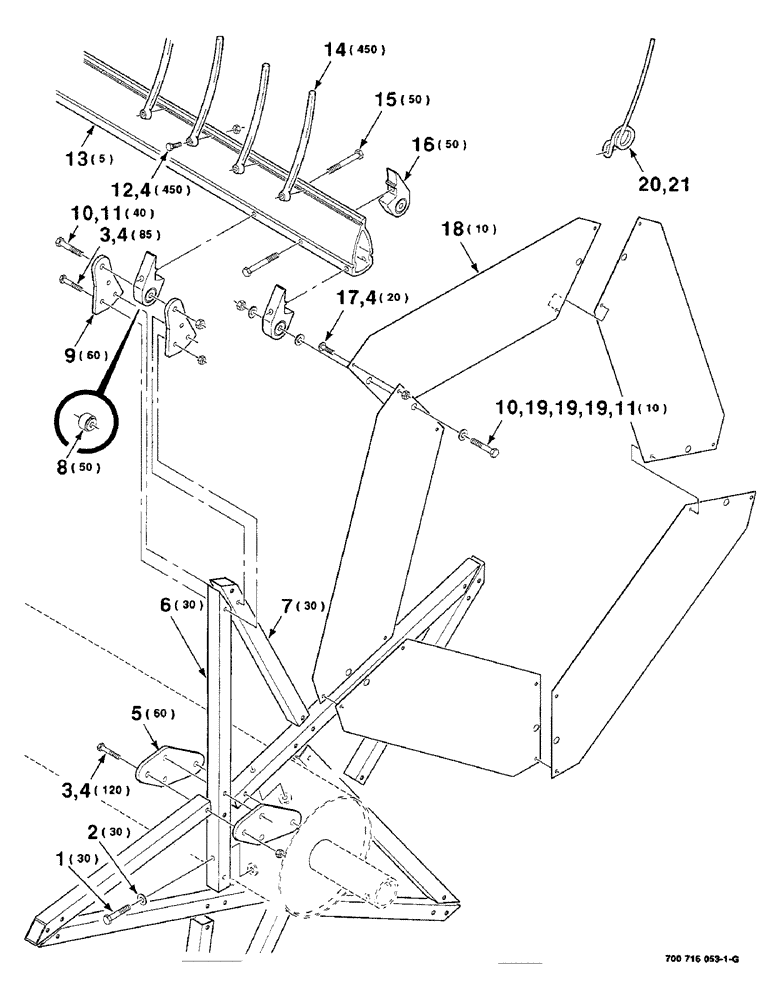

Запчасти Case IH 8220 (9-34) - REEL ASSEMBLY, 30 FOOT, PICKUP WITH ROLLER BEARINGS, HK609152, 30 FOOT PICKUP REEL COMPLETE (88) - ACCESSORIES

HK60912

KIT

PICKUP REEL COMPLETE - 30 Ft

1шт.

1

700708893

SCREW

5/16-18 X 1-3/4 BOLT - lock

30шт.

2

700708890

WASHER

5/16 WASHER - special

30шт.

3

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

205шт.

4

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

675шт.

5

700716054

PLATE

- inner

60шт.

6

700716055

ARM

- bat

30шт.

7

700716056

ARM

BRACE - arm, bat

30шт.

8

700713276

BALL BEARING

BEARING

50шт.

9

700708863

COVER PLATE

PLATE - tip

60шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

50шт.

11

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

50шт.

12

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

450шт.

13

700708901

BAT

(30 Foot)

5шт.

14

700714195

TINE

- plastic

450шт.

15

700708902

SCREW

5/16-18 X 2 SELF TAPPING SCREW

50шт.

16

700713277

BLOCK

HOLDER - bearing

50шт.

17

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS

20шт.

18

8745416

SHIELD

- end

10шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

20

700712427

TINE

- wire (Optional - single)

1шт.

21

700712428

TINE

- wire (Optional - box of 300)

1шт.
