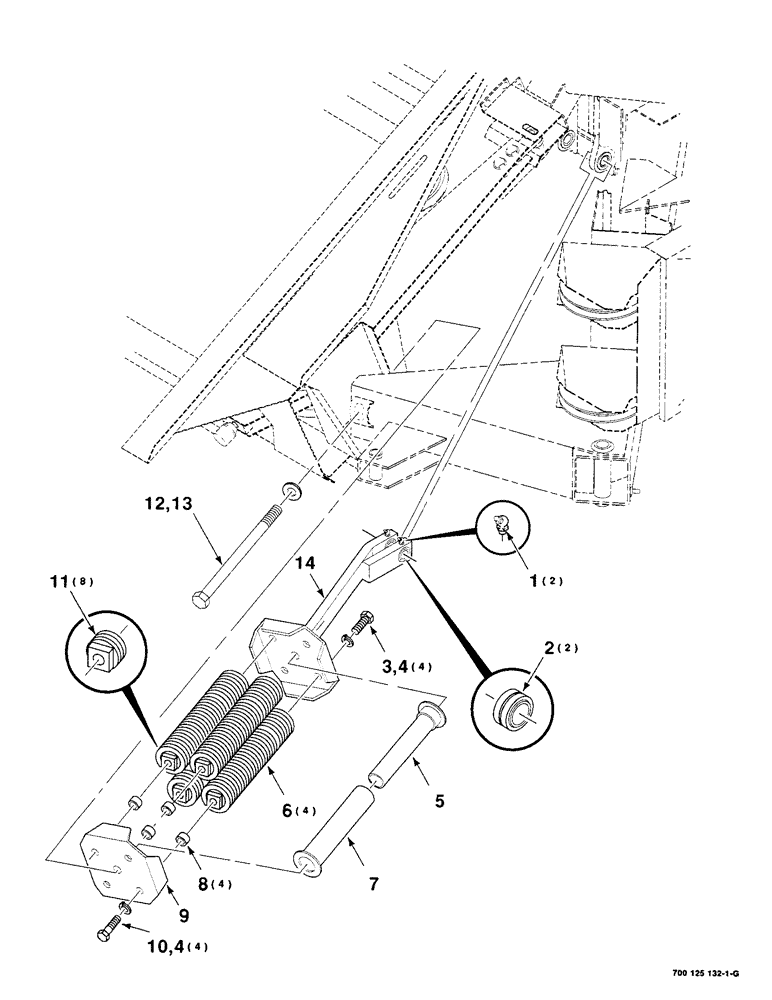

Запчасти Case IH 8220 (7-26) - FLOTATION SPRING ASSEMBLY, 35 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

2

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING

2шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

5

700126063

TUBE

WA

1шт.

6

428433

SPRING

ASSEMBLY (Includes item 11)

4шт.

7

700126053

TUBE

WA

1шт.

8

6344105

SPACER

4шт.

9

700125196

PLATE

WA

1шт.

10

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4-10 X 2-3/4 C

4шт.

11

378778

SPRING

PLUG - spring

8шт.

12

700710215

BOLT

1-8 X 14 B

1шт.

13

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

1шт.

14

700125193

PLATE

ASSEMBLY (Includes items 1 and 2)

1шт.
