Запчасти Case IH 8220 (7-18) - HEADER SHIELDS AND FRAME ASSEMBLY, 25, 30 AND 35 FOOT (58) - ATTACHMENTS/HEADERS

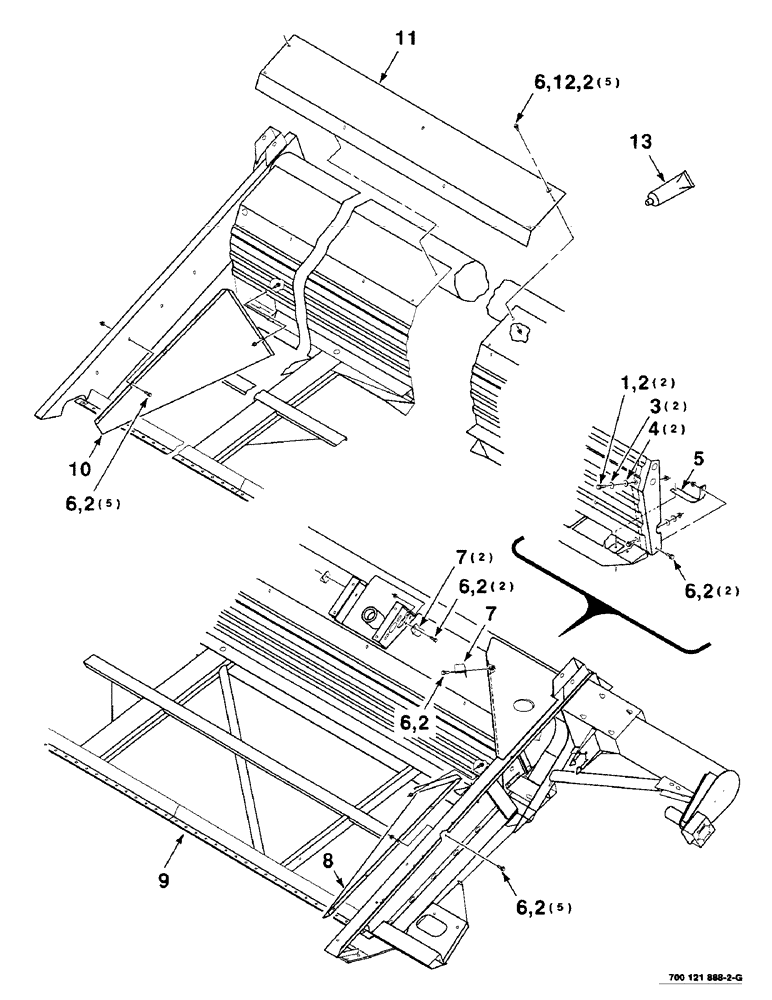

Схема запчастей Case IH 8220 - (7-18) - HEADER SHIELDS AND FRAME ASSEMBLY, 25, 30 AND 35 FOOT (58) - ATTACHMENTS/HEADERS
4
6
2
6
6
2
8
6
7
7
2
10
11
9
12
2
6
2
2
3
5
1
6
2
13

Артикул

Название

Примечание

Количество

1

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

22шт.

3

411579

WASHER

2шт.

4

700122398

RUBBER WASHER

- rubber

2шт.

5

700122425

STRAP

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

20шт.

7

700122367

ANGLE

1шт.

8

700122361

DEFLECTOR

- left

1шт.

9

700122410

FRAME

MAINFRAME WA (25 Foot only)

1шт.

700122220

FRAME

MAINFRAME WA (30 Foot only)

1шт.

700125140

CHASSIS

MAINFRAME WA (35 Foot only)

1шт.

10

700122360

DEFLECTOR

- right

1шт.

11

700122409

PANEL

- center (25 Foot only)

1шт.

700122365

PANEL

- center (30 Foot only)

1шт.

700125192

PANEL

- center (35 Foot only)

1шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

5шт.

13

700707823

SEALANT

- silastic (10.3 oz.)

1шт.

Выбрано товаров: 17
