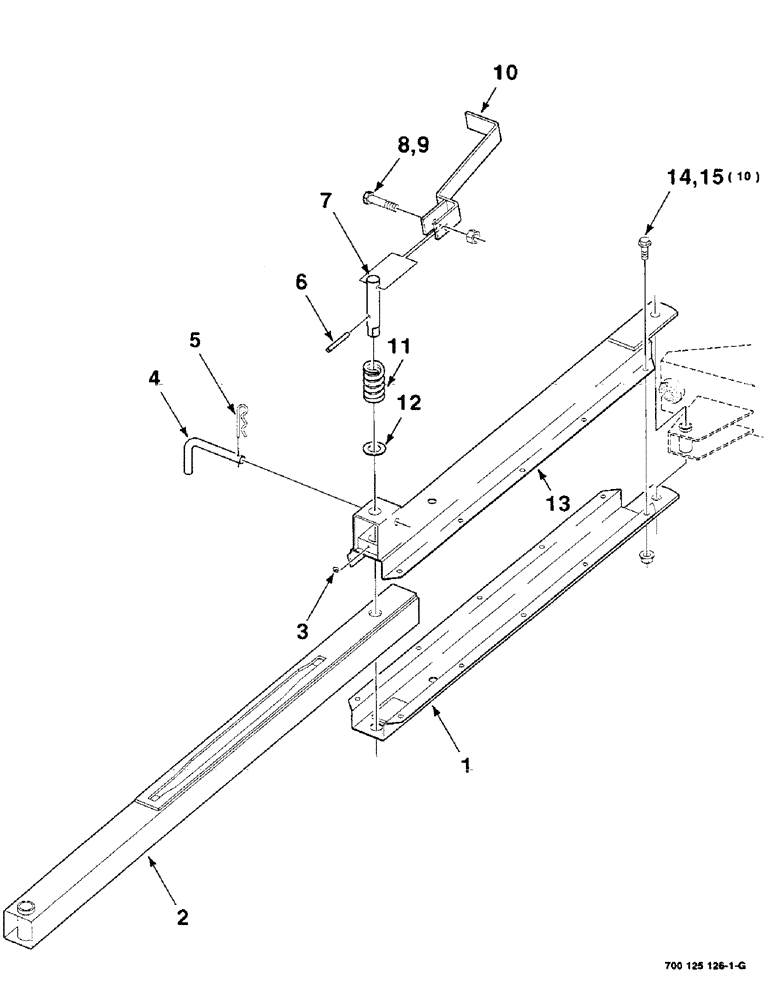

Запчасти Case IH 8220 (7-12) - LATCH ASSEMBLY, FIELD AND TRANSPORT (58) - ATTACHMENTS/HEADERS

1

700121945

CHANNEL

WA

1шт.

2

700121933

TUBE

WA

1шт.

3

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

4

700121960

PIN

1шт.

5

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

7

700121948

SHAFT

1шт.

8

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

9

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

1шт.

10

700121949

HANDLE

WA

1шт.

11

700709793

SPRING

- compression

1шт.

12

52258

BUSHING

1 X 14 GAUGE NRMB

1шт.

13

700121940

CHANNEL

WA

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

10шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.
