Запчасти Case IH 8220 (7-10) - TONGUE ASSEMBLY (58) - ATTACHMENTS/HEADERS

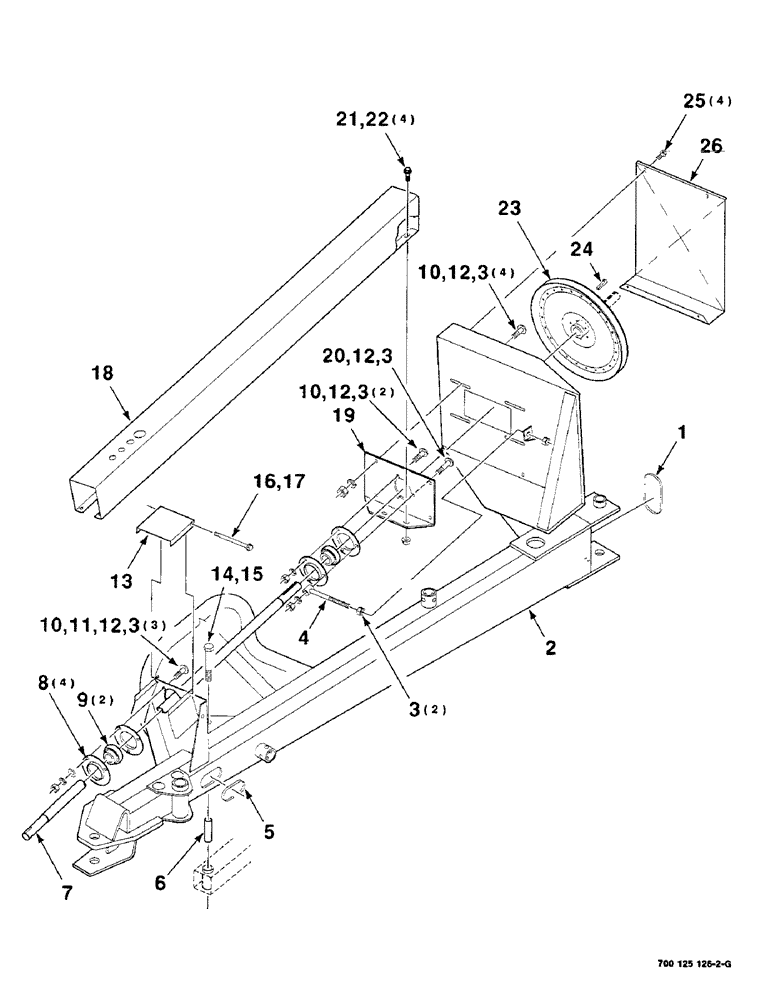

Схема запчастей Case IH 8220 - (7-10) - TONGUE ASSEMBLY (58) - ATTACHMENTS/HEADERS
17
4
2
10
3
5
3
16
6
7
23
1
10
8
22
9
11
18
3
12
19
15
12
25
26
12
14
21
12
3
3
20
24
10
13

Артикул

Название

Примечание

Количество

1

700121966

ORNAMENTAL STRIP

TRIM

1шт.

2

700121910

TOW BAR

TONGUE WA

1шт.

3

425-106

NUT,3/8"-16, Cl 5

12шт.

4

700121964

TRUSS ROD

DRAWBOLT WA

1шт.

5

700105139

GROMMET

1шт.

6

700121946

SPACER,34.93 mm OD, 84 mm Length

TUBE

1шт.

7

700121961

SHAFT

- PTO

1шт.

8

712612

FLANGE

4шт.

9

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

2шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

9шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

12

492-11038

LOCK WASHER,3/8"

10шт.

13

700126038

SHIELD

- front

1шт.

14

113-817

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

7/8-9 X 5-1/2 C

1шт.

15

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN GR/G

1шт.

16

413-488

BOLT,Hex, 1/4" - 20 x 5-1/2", Gr 5

1/4-20 X 5-1/2 C

1шт.

17

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

18

700126043

SHIELD

1шт.

19

700121963

PLATE

- bearing

1шт.

20

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

1шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

23

700709994

PULLEY

SHEAVE 540 RPM (15.5" Dia.)

1шт.

700709993

PULLEY

SHEAVE 1000 RPM (11.5" Dia.)

1шт.

24

249-1

KEY

1/4 X 1-3/4 KEY - gib

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

26

700121955

GUARD

SHIELD WA

1шт.

Выбрано товаров: 27
