Запчасти Case IH 8220 (5-18) - 30 FOOT DRAPER DRIVE ASSEMBLY, RIGHT, SERIAL NUMBER CFH0066008 AND LATER (58) - ATTACHMENTS/HEADERS

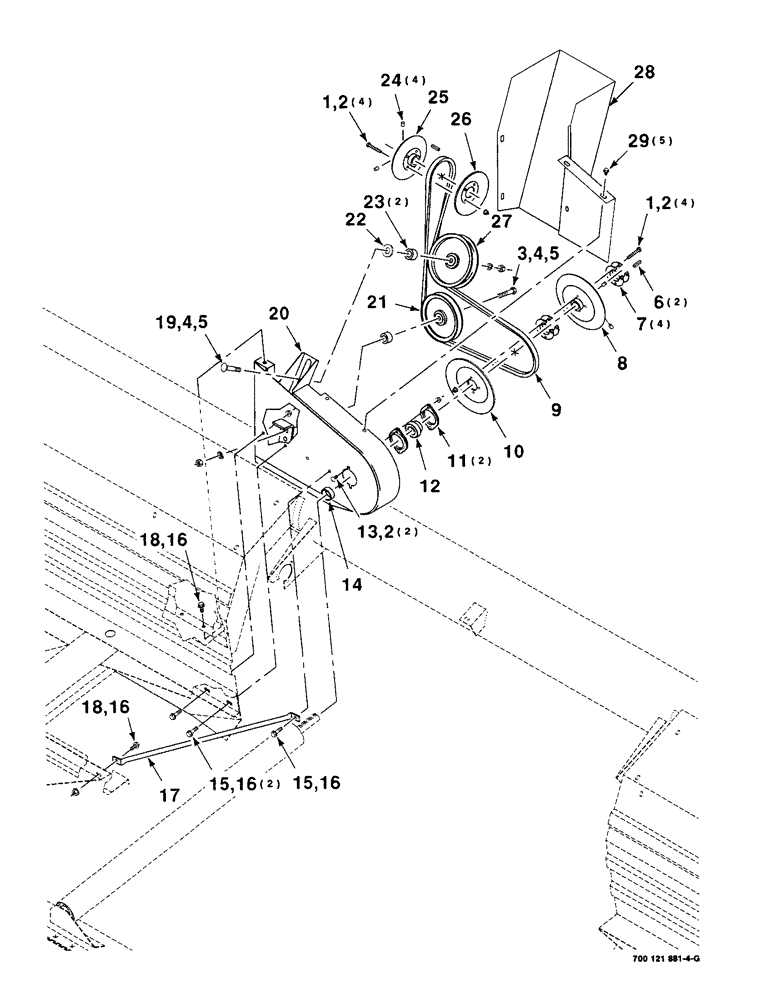

Схема запчастей Case IH 8220 - (5-18) - 30 FOOT DRAPER DRIVE ASSEMBLY, RIGHT, SERIAL NUMBER CFH0066008 AND LATER (58) - ATTACHMENTS/HEADERS
16
9
8
4
5
16
28
15
20
7
29
16
17
22
23
26
24
2
2
18
27
6
13
10
1
11
15
2
3
12
18
19
16
5
14
1
25
4
21

Артикул

Название

Примечание

Количество

1

7773930

BOLT

5/16-18 X 2 FTC

8шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

10шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

O3312AB

KEY

1/4 X 1/4 X 1-1/2 KEY

2шт.

7

700122195

SHIM

4шт.

8

700122045

ROLLER

SHEAVE WA - roller

1шт.

9

700710498

V-BELT,2082.80 mm L

1шт.

10

700122194

SHEAVE

- half

1шт.

11

50591

FLANGE,52mm

2шт.

12

710301

SPHERICAL BEARING

BEARING - spherical

1шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

14

158766

SPACER

1шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

17

700122434

TUBE,623 mm Length

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

19

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

20

700126022

SUPPORT

WA - right

1шт.

21

51200825

PULLEY

SHEAVE

1шт.

22

396-210066

5/8 HARDENED PLAIN WASHER

1шт.

23

6840847

BUSHING

SPACER

2шт.

24

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

4шт.

25

700122191

SHEAVE

WA

1шт.

26

700122193

SHEAVE

- half

1шт.

27

54122

PULLEY

IDLER - flat

1шт.

28

700126016

GUARD

SHIELD WA - right

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

Выбрано товаров: 29
