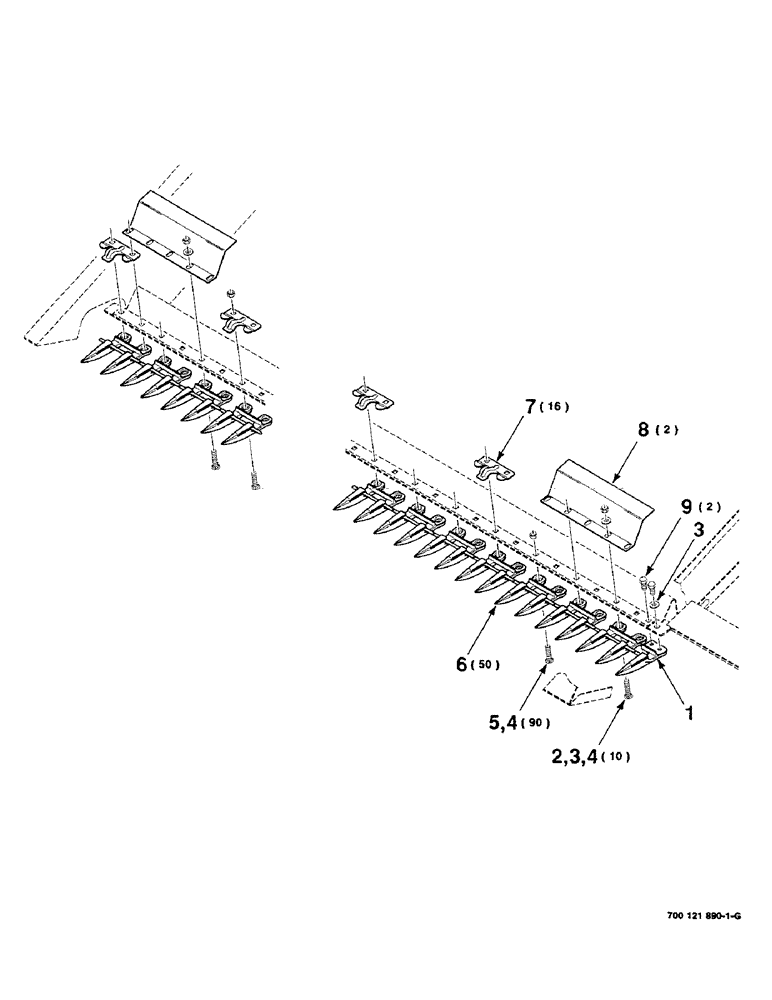

Запчасти Case IH 8220 (3-28) - GUARD ASSEMBLY, 25 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

NLS

NO LONGER SERVICED

- single

1шт.

2

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

10шт.

3

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

11шт.

4

425-107

NUT,7/16"-14, G5

7/16-14 H

100шт.

5

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

90шт.

6

700700845

GUARD

GUARD - double

50шт.

7

700111204

CLIP

HOLDDOWN

16шт.

8

700129119

SHIELD

2шт.

9

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
