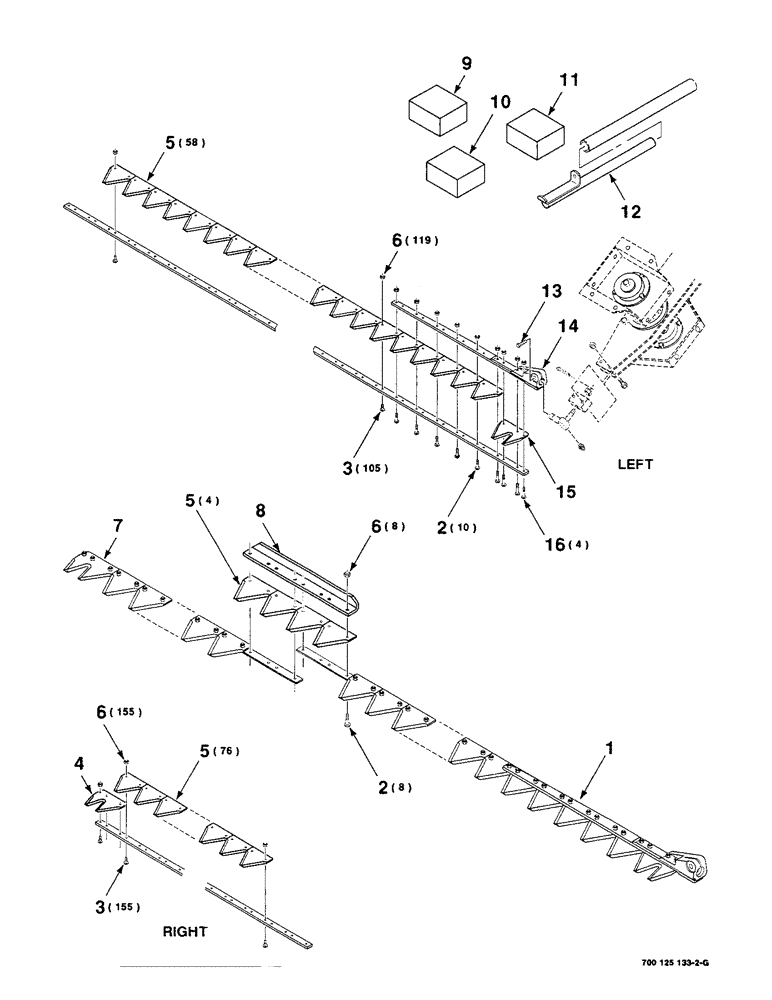

Запчасти Case IH 8220 (3-24) - SICKLE ASSEMBLY, 35 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

700709888

KNIFE ASSY

SICKLE ASSEMBLY - left complete

1шт.

2

700705519

RIVET

#12-24 X 1 BOLT (Order item 10)

18шт.

3

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 X 5/8 BOLT (Order item 9)

260шт.

4

700705463

KNIFE SECTION

SECTION - double end

1шт.

5

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 per box)

138шт.

6

1954816C1

LOCK NUT

#12-24 LOCKNUT (Packaged with bolts)

282шт.

7

700710967

KNIFE ASSY

SICKLE ASSEMBLY - right complete

1шт.

8

700122167

ANGLE

- sickle, center

1шт.

9

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT & LOCKNUT (Packaged 50 per box)

1шт.

10

700705297

KIT

#12-24 X 1 BOLT, LOCKNUT & HEX WASHER (Packaged 25 per box)

1шт.

11

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT & LOCKNUT (Packaged 50 per box)

1шт.

12

6135081

GUARD

STRAIGHTENER, guard

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

700709889

HEAD

SICKLE HEAD WA

1шт.

15

700705462

KNIFE SECTION

SECTION - double end

1шт.

16

700705520

RIVET

#12-24 X 1-1/4 BOLT (Order item 11)

4шт.
