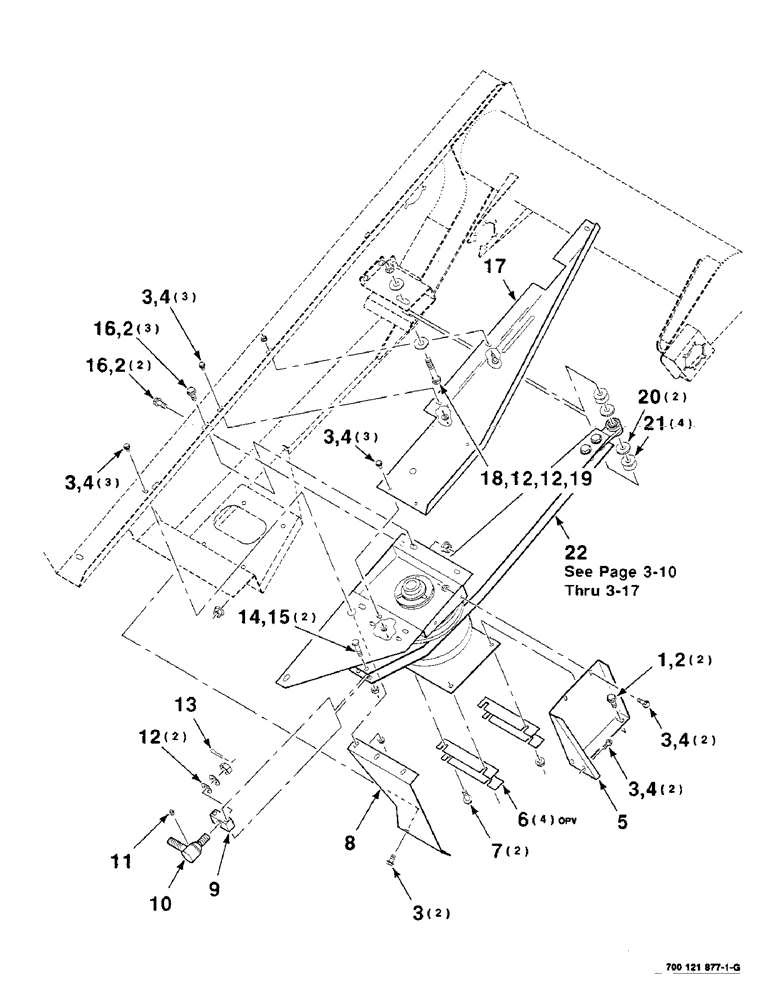

Запчасти Case IH 8220 (3-08) - SWAYBAR MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

7шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

15шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

13шт.

5

700122147

SUPPORT

1шт.

6

700122165

SHIM

4шт.

7

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2-13 X 1 HFSS

2шт.

8

700122148

SUPPORT

1шт.

9

700122217

BLOCK

- sickle

1шт.

10

700710494

SOCKET

BALL JOINT ASSEMBLY

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

13

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

14

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

2шт.

15

425-118

NUT,1/2"-20, G5

1/2-20 H

2шт.

16

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

5шт.

17

700122140

ANGLE

WA (S.N. CFH0064001 thru CFH0064280-21 foot) (S.N. CFH0065001 thru CFH0065717-25 foot) (S.N. CFH0066001 thru CFH0066534-30 foot) (S.N. CFH0067001 thru CFH0067131-35 foot)

1шт.

700130813

ANGLE

WA (S.N. CFH0064001 thru CFH0064280-21 foot) (S.N. CFH0065001 thru CFH0065717-25 foot) (S.N. CFH0066001 thru CFH0066534-30 foot) (S.N. CFH0067001 thru CFH0067131-35 foot)

1шт.

18

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

19

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

20

6855423

WASHER

2шт.

21

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

4шт.

22

700122151

KIT

SWAYBAR ASSEMBLY, see Ref. 17, 700130813 and 700130787

1шт.

700130787

SUPPORT

SWAYBAR ASSEMBLY, see Ref. 17, 700130813 and 22

1шт.
