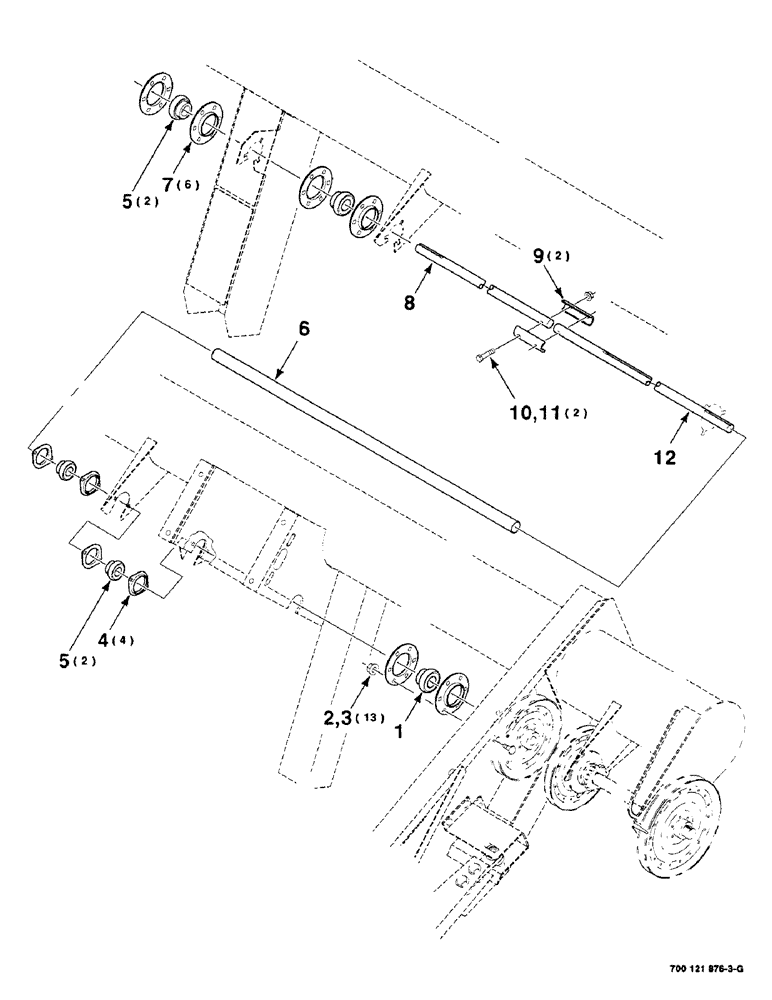

Запчасти Case IH 8220 (3-04) - CROSS SHAFT ASSEMBLY, 21 FOOT ONLY (58) - ATTACHMENTS/HEADERS

1

710301

SPHERICAL BEARING

BEARING

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

13шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

13шт.

4

50591

FLANGE,52mm

- bearing

4шт.

5

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

4шт.

6

700129117

SHIELD

1шт.

7

50567

RATCHET

- bearing

6шт.

8

700122171

SHAFT

- right

1шт.

9

700122170

COUPLING

COUPLER - half

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

12

700122172

SHAFT

- center

1шт.
