Запчасти Case IH 8220 (2-28) - REEL ASSEMBLY, LEFT HALF 35 FOOT, SERIAL NUMBER CFH0067004 AND LATER (58) - ATTACHMENTS/HEADERS

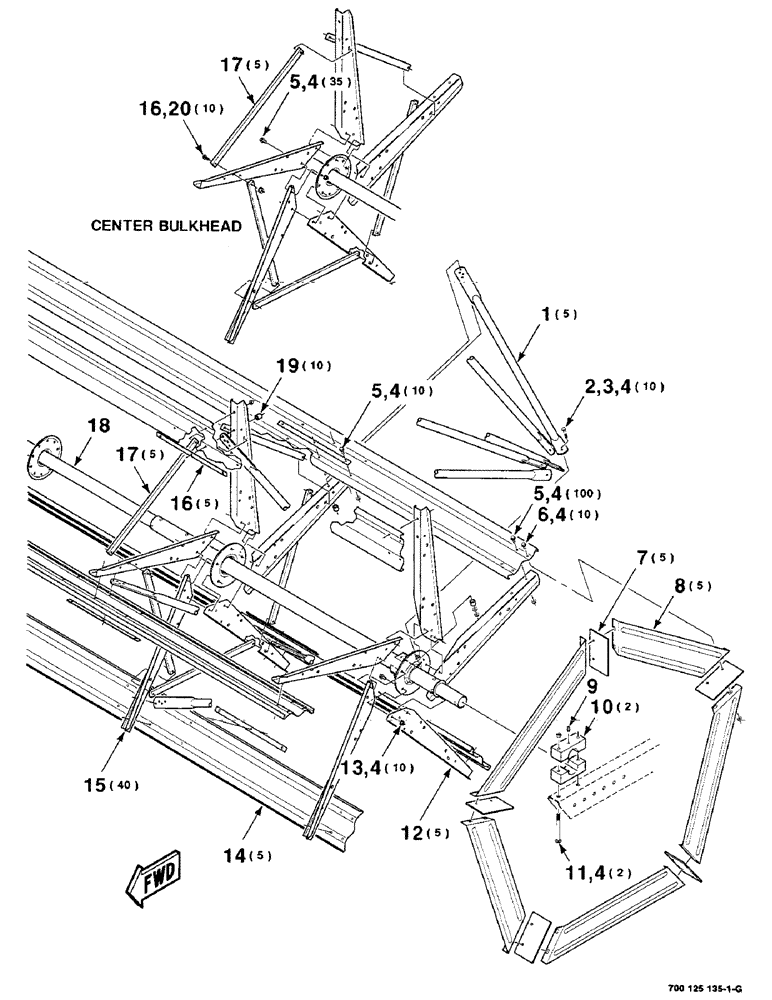

Схема запчастей Case IH 8220 - (2-28) - REEL ASSEMBLY, LEFT HALF 35 FOOT, SERIAL NUMBER CFH0067004 AND LATER (58) - ATTACHMENTS/HEADERS
6
4
16
13
18
16
12
10
11
7
15
4
1
20
2
8
14
17
5
19
4
3
4
4
5
4
5
4
9
17

Артикул

Название

Примечание

Количество

1

700129126

TUBE,31.75 mm OD, 1160 mm Length

- reel, arm

5шт.

2

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

10шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

177шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

145шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

7

700118408

FLAP

WEBBING

5шт.

8

700118409

SHIELD

- end, reel

5шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8 ZERK

1шт.

10

700707236

BEARING HALF

BEARING - wood

2шт.

11

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

2шт.

12

700129125

ARM

- reel, left

5шт.

13

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

10шт.

14

700713247

BAT

- reel

5шт.

15

700129124

ARM

- reel

40шт.

16

700129127

CLAMP

STRAP

15шт.

17

700126000

STRAP

10шт.

18

700125992

TUBE

WA - reel

1шт.

19

6605869

SPACER

10шт.

20

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

Выбрано товаров: 20
