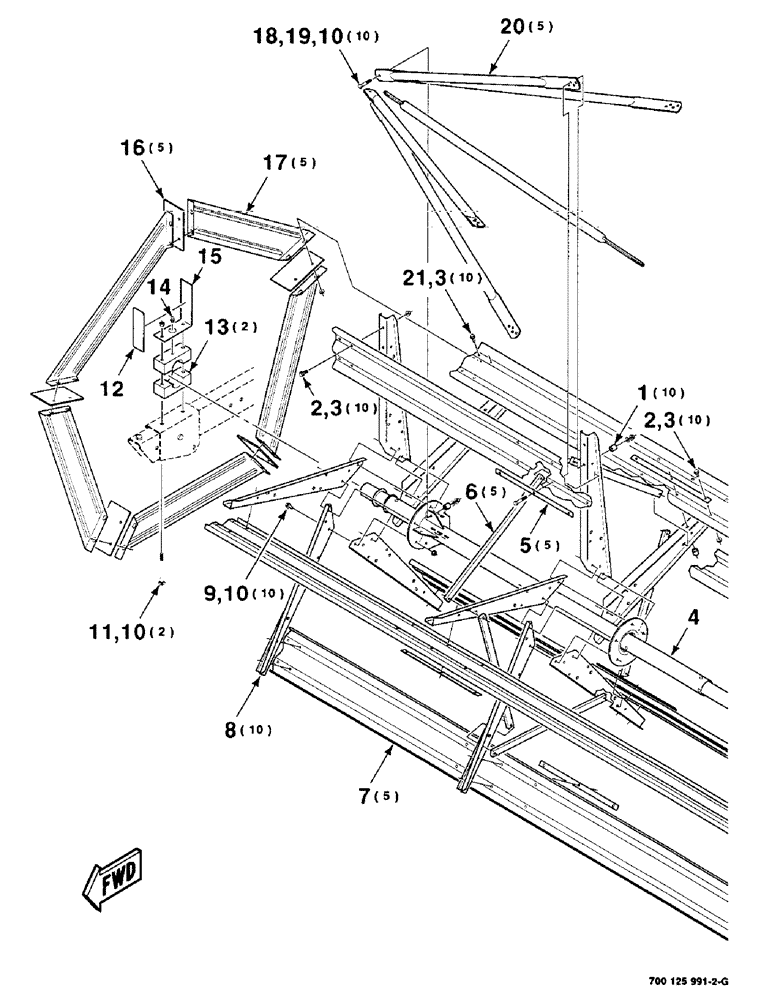

Запчасти Case IH 8220 (2-26) - REEL ASSEMBLY, RIGHT HALF 35 FOOT, SERIAL NUMBER CFH0067001 THRU CFH0067003 (58) - ATTACHMENTS/HEADERS

1

6605869

SPACER

10шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

20шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

30шт.

4

700125992

TUBE

WA - reel

1шт.

5

700129127

CLAMP

STRAP

5шт.

6

700126000

STRAP

5шт.

7

700710971

BAT

- reel

5шт.

8

700126001

ARM

- reel

10шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

22шт.

11

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

2шт.

12

878694

REFLECTOR

- amber

1шт.

13

700707236

BEARING HALF

BEARING - wood

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8 ZERK

1шт.

15

700116313

BRACKET

CAP - bearing

1шт.

16

700118408

FLAP

WEBBING

5шт.

17

700118409

SHIELD

- end, reel

5шт.

18

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

10шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

20

700129126

TUBE,31.75 mm OD, 1160 mm Length

- reel, arm

5шт.

21

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 WHWMS

10шт.
