Запчасти Case IH 8220 (2-16) - REEL ARM ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS

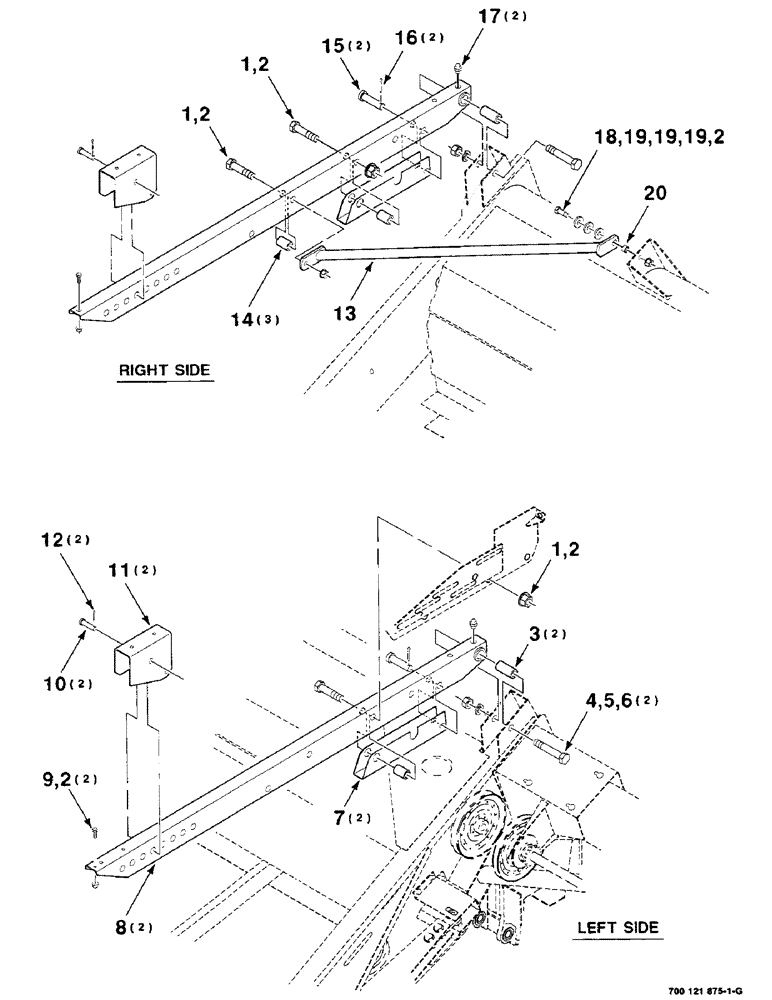

Схема запчастей Case IH 8220 - (2-16) - REEL ARM ASSEMBLY, LEFT AND RIGHT (58) - ATTACHMENTS/HEADERS
10
2
12
2
1
5
19
15
1
20
18
2
16
2
2
3
13
6
9
17
19
19
4
11
1
14
8
7

Артикул

Название

Примечание

Количество

1

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

3шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

3

700116331

SPACER

2шт.

4

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

700122099

CHANNEL

- stop

2шт.

8

700122087

ARM

WA

2шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

10

863423

CLEVIS PIN

1/2 X 3-1/2 CLEVIS PIN

2шт.

11

700121151

CHANNEL

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

700122123

SUPPORT

WA

1шт.

14

700122122

SPACER

TUBE

3шт.

15

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

3/8 X 3 CLEVIS PIN

2шт.

16

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

19

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

3шт.

20

700120298

BUSHING

1шт.

Выбрано товаров: 20
