Запчасти Case IH 8220 (2-04) - HEADER DRIVE AND LOCKING ASSEMBLY (58) - ATTACHMENTS/HEADERS

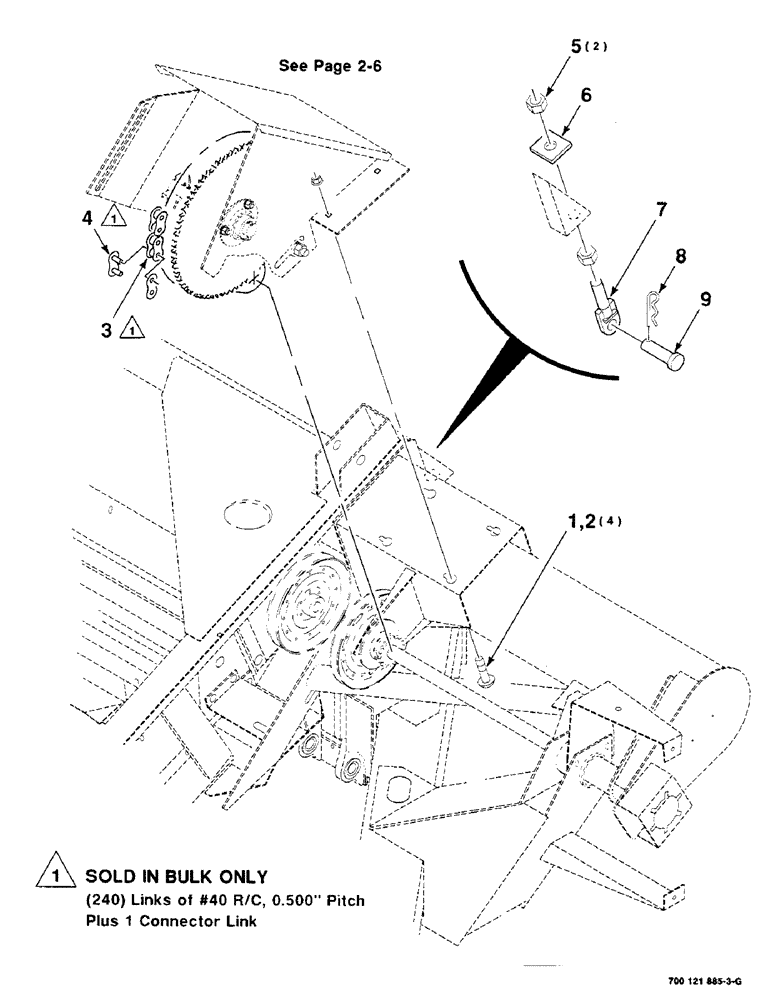

Схема запчастей Case IH 8220 - (2-04) - HEADER DRIVE AND LOCKING ASSEMBLY (58) - ATTACHMENTS/HEADERS
3
2
5
9
1
8
6
7
4

Артикул

Название

Примечание

Количество

1

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

3

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 Foot bulk)

1шт.

4

241-1314

CHAIN LINK

CONNECTOR LINK, #40

1шт.

5

425-1016

NUT,1"-8, G5

2шт.

6

HFI6363410

PLATE

DOUBLER - clutch, shaft

1шт.

7

700122356

PIN

1шт.

8

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

9

480255R1

HEADED PIN,1" x 2 3/16"

1 X 2 CLEVIS PIN

1шт.

Выбрано товаров: 9
