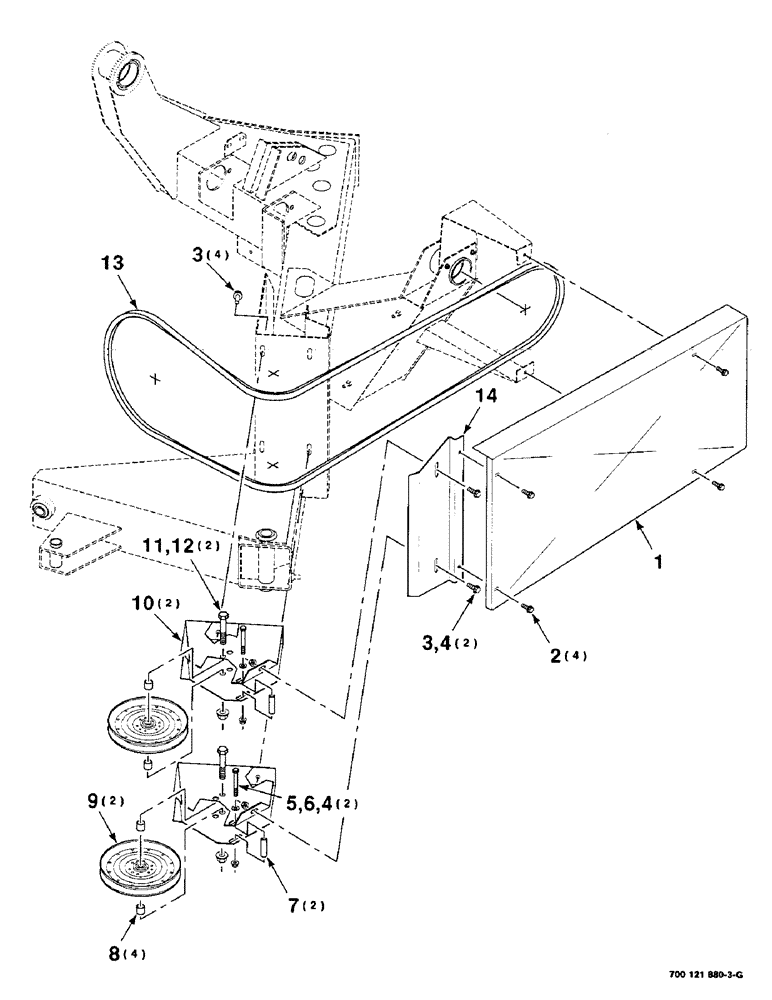

Запчасти Case IH 8220 (2-02) - HEADER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700122022

SHIELD

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

5

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

7

700122023

SPACER

2шт.

8

6558274

SPACER

4шт.

9

700709995

PULLEY

SHEAVE - idler

2шт.

10

700122016

SUPPORT

WA

2шт.

11

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

12

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

13

855007

BELT

V-BELT

1шт.

14

700122018

ANGLE

WA

1шт.
