(8-16) - HYD. CYL. ASSY., REEL, MASTER, 700709507 HYD.CYL. ASSY. COMPLETE 1-1/2 INCH BORE X 9-3/8 INCH STROKE

Запчасти Case IH 8220 (8-16) - HYD. CYL. ASSY., REEL, MASTER, 700709507 HYD.CYL. ASSY. COMPLETE 1-1/2 INCH BORE X 9-3/8 INCH STROKE (35) - HYDRAULIC SYSTEMS

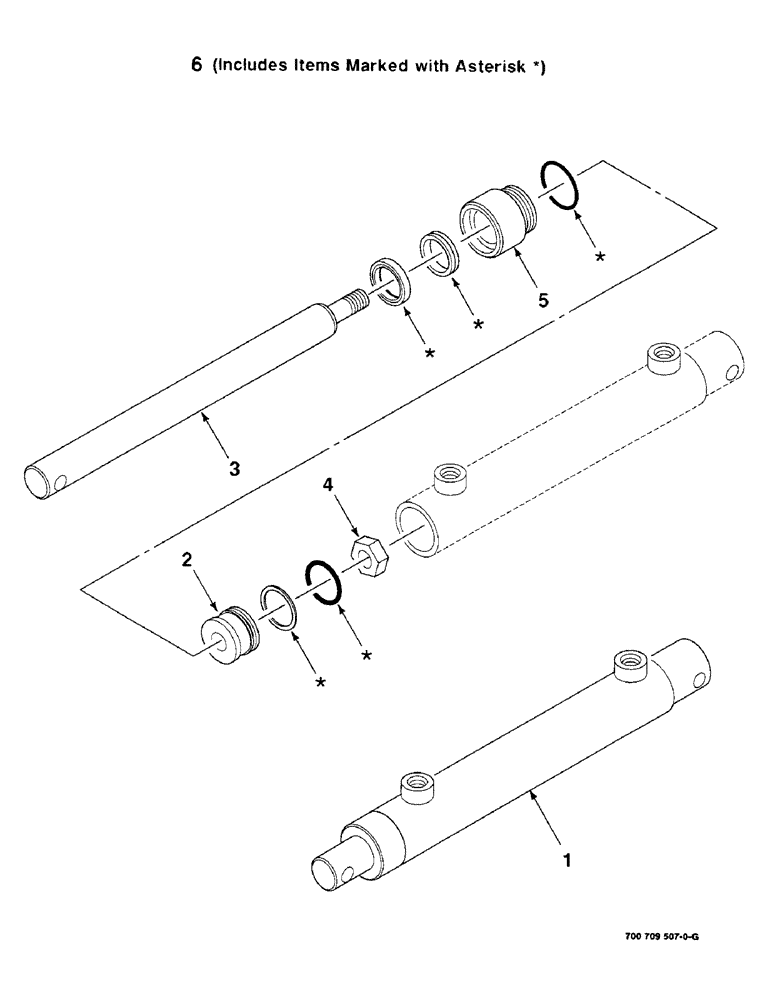

Схема запчастей Case IH 8220 - (8-16) - HYD. CYL. ASSY., REEL, MASTER, 700709507 HYD.CYL. ASSY. COMPLETE 1-1/2 INCH BORE X 9-3/8 INCH STROKE (35) - HYDRAULIC SYSTEMS
5
3
4
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709507

HYDRAULIC CYLINDER

COMPLETE (1-1/2 Inch bore x 9-3/8 inch stroke)

1шт.

2

700708856

PISTON

1шт.

3

700708854

PISTON ROD

ROD - psiton

1шт.

4

7738248

NUT

1шт.

5

700709510

CYLINDER HEAD

HEAD

1шт.

6

700709511

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
