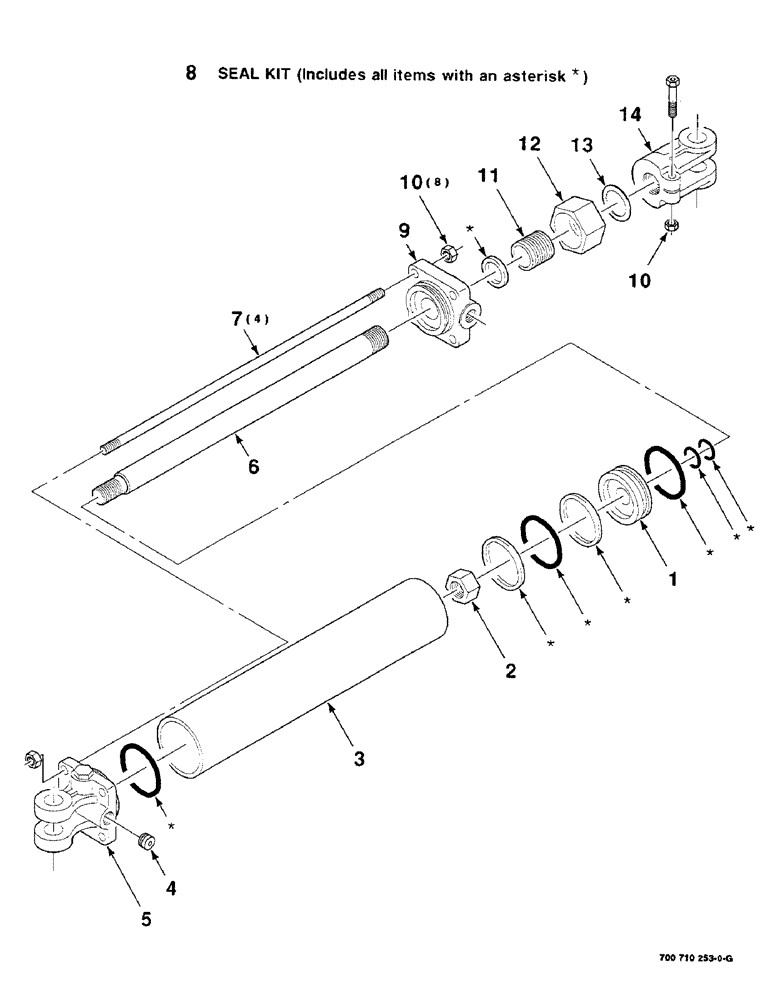

Запчасти Case IH 8220 (8-14) - HYD. CYLINDER ASSY., WHEEL CONTROL, 700710253 HYD. CYL. ASSY. COMPLETE, 2 INCH BORE X 10 INCH STROKE (35) - HYDRAULIC SYSTEMS

700710253

CYLINDER,Double Acting, 254mm Stroke

HYDRAULIC CYLINDER COMPLETTE (2 INCH BORE X 10 INCH STROKE)

1шт.

1

B17272

PISTON

1шт.

2

131-909

LOCK NUT,3/4"-16

NUT

1шт.

3

737718

TUBE ASSY.

BARREL

1шт.

4

700710609

ORIFICE

PLATE - orifice

1шт.

5

700710607

BASE

- clevis

1шт.

6

700710613

ROD

1шт.

7

700710610

TIE-ROD

TIE ROD

4шт.

8

737791

SEAL

KIT

1шт.

9

700709933

HEAD

1шт.

10

425-106

NUT,3/8"-16, Cl 5

9шт.

11

700710606

COLLAR

- inner

1шт.

12

B17258

STOP

COLLAR - outer

1шт.

13

840637

RING, SNAP

RING - retainer

1шт.

14

700709935

CLEVIS

- rod

1шт.
