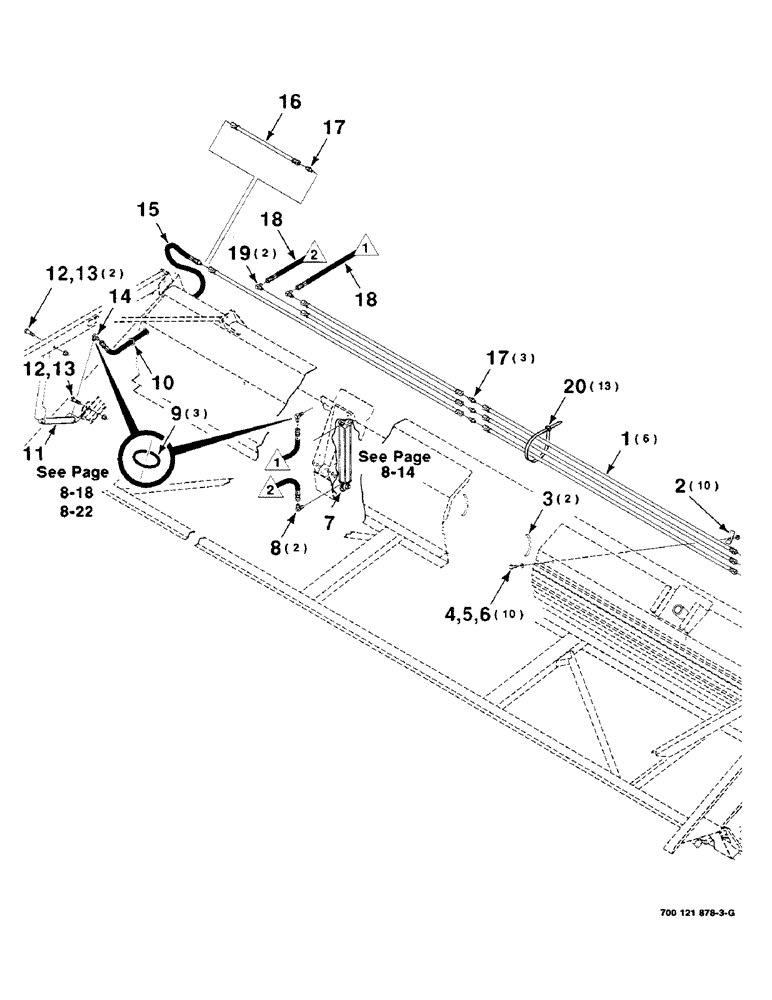

Запчасти Case IH 8220 (8-08) - HYDRAULIC ASSEMBLY, FRAME, 25 FOOT FRAME (35) - HYDRAULIC SYSTEMS

1

700710159

TUBE,9.52 mm OD, 2893 mm Length

LINE - hydraulic

6шт.

2

700122179

CLAMP

10шт.

3

700120657

ORNAMENTAL STRIP

TRIM

2шт.

4

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

10шт.

5

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

10шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

7

700710253

CYLINDER,Double Acting, 254mm Stroke

- hydraulic

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (Includes item 9)

2шт.

9

738468

O-RING

3шт.

10

248-2152

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

11

700711370

CYLINDER

- hydraulic (S.N. CFH0064001 thru CFH0064280-21 foot) (S.N. CFH0065001 thru CFH0065662-25 foot) (S.N. CFH0066001 thru CFH0066489-30 foot) (S.N. CFH0067001 thru CFH0067136-35 foot)

1шт.

700714179

CYLINDER,Double Acting, 25.4mm Rod, 238.12mm Stroke

- hydraulic (S.N. CFH0064281 and later-21 foot) (S.N. CFH0065663 and later-25 foot) (S.N. CFH0066490 and later-30 foot) (S.N. CFH0067137 and later-35 foot)

1шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

3шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

14

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree (Includes item 9)

1шт.

15

700710168

HYDRAULIC HOSE,9.65 mm ID x 925.00 mm, SAE J516

9.65 mm ID x 925.00 mm, SAE J516

1шт.

16

700710157

TUBE,9.52 mm OD, 1130 mm Length

LINE - hydraulic

1шт.

17

846477

UNION

- straight

4шт.

18

700710167

HYDRAULIC HOSE,9.65 mm ID x 700.00 mm, SAE J516

9.65 mm ID x 700.00 mm, SAE J516

2шт.

19

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degrees

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

13шт.
