Запчасти Case IH 8220 (8-02) - HYDRAULIC ASSEMBLY, TONGUE (35) - HYDRAULIC SYSTEMS

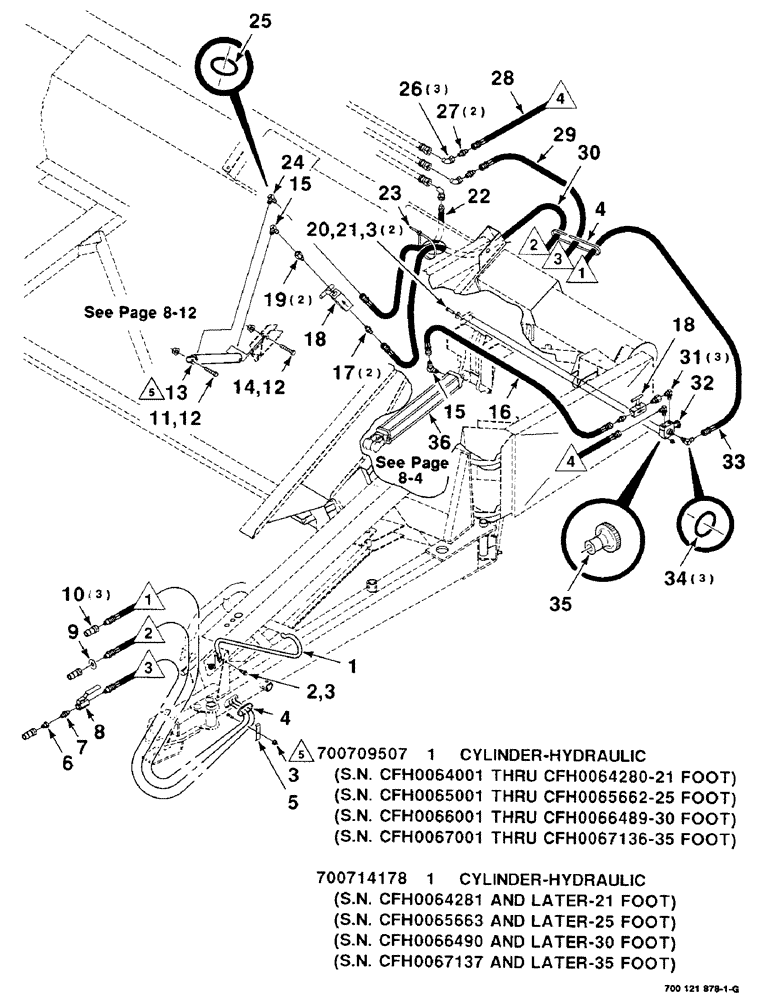

Схема запчастей Case IH 8220 - (8-02) - HYDRAULIC ASSEMBLY, TONGUE (35) - HYDRAULIC SYSTEMS
5
18
15
36
12
7
14
16
30
9
3
1
32
26
10
13
3
6
27
29
18
4
33
12
21
34
17
11
28
35
19
4
8
23
2
20
22
25
31
24
3
15

Артикул

Название

Примечание

Количество

1

700121990

SUPPORT

- PTO

1шт.

2

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

4

700105139

GROMMET

2шт.

5

700102291

CLAMP

- line

1шт.

6

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

1шт.

7

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE

1шт.

8

700709593

VALVE

- ball

1шт.

9

495-81055

WASHER,29/32" x 1 3/8" x .134"

7/8 X 10 GAUGE NRMB

1шт.

10

1-7141

FITTING

COUPLING - quick disconnect

3шт.

11

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

13

700709507

HYDRAULIC CYLINDER

CYLINDER - hydraulic (See note on image)

1шт.

700714178

CYLINDER,Double Acting, 28.58mm Rod, 238.12mm Stroke

- hydraulic (See note on image)

1шт.

14

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees

2шт.

16

700710166

HYDRAULIC HOSE,9.65 mm ID x 550.00 mm, SAE J516

9.65 mm ID x 550.00 mm, SAE J516

1шт.

17

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male

2шт.

18

700711345

VALVE

- needle

2шт.

19

700711344

FITTING

2шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

22

700710168

HYDRAULIC HOSE,9.65 mm ID x 925.00 mm, SAE J516

9.65 mm ID x 925.00 mm, SAE J516

1шт.

23

529070

CABLE TIE,368.3mm L

TIE

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (Includes item 25)

1шт.

25

738468

O-RING

1шт.

26

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degrees

3шт.

27

846477

UNION

2шт.

28

700710167

HYDRAULIC HOSE,9.65 mm ID x 700.00 mm, SAE J516

9.65 mm ID x 700.00 mm, SAE J516

1шт.

29

700710497

HYDRAULIC HOSE,9.65 mm ID x 6500.00 mm, SAE J516

9.65 mm ID x 6500.00 mm, SAE J516

1шт.

30

700710170

HYDRAULIC HOSE,9.65 mm ID x 7200.00 mm, SAE J516

9.65 mm ID x 7200.00 mm, SAE J516

1шт.

31

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 (Includes item 34)

3шт.

32

700710156

VALVE

- selector (Includes item 35)

1шт.

33

700710169

HYDRAULIC HOSE,9.65 mm ID x 6000.00 mm, SAE J516

9.65 mm ID x 6000.00 mm, SAE J516

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

35

700712911

KNOB

1шт.

36

700710496

CYLINDER

- hydraulic

1шт.
