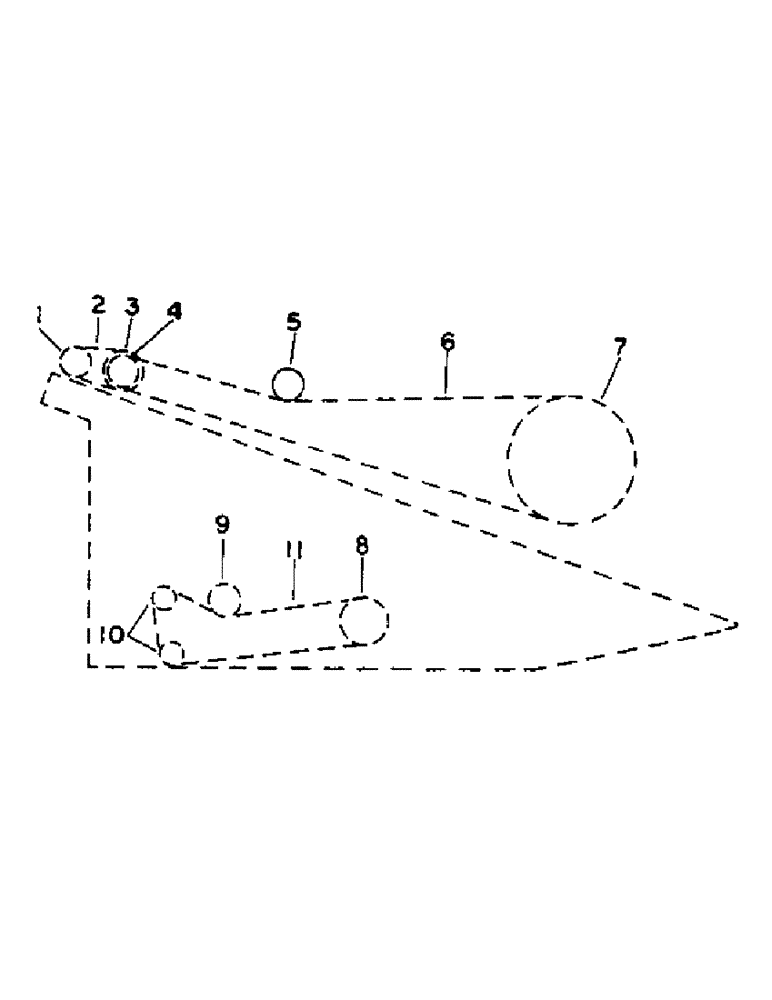

Запчасти Case IH 810 (B-03) - DRAPER HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM - RIGHT SIDE (58) - ATTACHMENTS/HEADERS

1

164959C91

SPROCKET ASSY.

SPROCKET ASSY, reel jackshaft drive, 16T, refer to group 6 under double hydraulic reel drive

1шт.

2

CHAIN ASSY, reel jackshaft drive, refer to group 6 under double hydraulic reel drive

1шт.

3

180362C1

SPROCKET ASSY.

SPROCKET ASSY, reel drive inner, 27T, refer to group 6 under double hydraulic reel drive

1шт.

4

180361C1

SPROCKET ASSY.

SPROCKET, reel drive outer, 7T, refer to group 6 under double hydraulic reel drive

1шт.

5

559168R91

PTO

PULLEY ASSY, reel drive chain tightener, 3-1/2 in. OD, 88.9mm OD, refer to group 6 under double hydraulic reel drive

1шт.

6

CHAIN ASSY, reel drive, refer to group 6 under double hydraulic reel drive

1шт.

7

164962C1

DRIVE SPROCKET

SPROCKET, reel drive, 50T, refer to group 6 under double hydraulic reel drive

1шт.

8

180336C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 25T, refer to group 5 under header auger

1шт.

9

180338C1

DRIVE SPROCKET

SPROCKET, drive, 41T, refer to group 5 under header auger

1шт.

10

565442R91

SPROCKET

idler, 17T, refer to group 5 under header auger

2шт.

11

CHAIN ASSY, drive, refer to group 5 under header auger

1шт.
