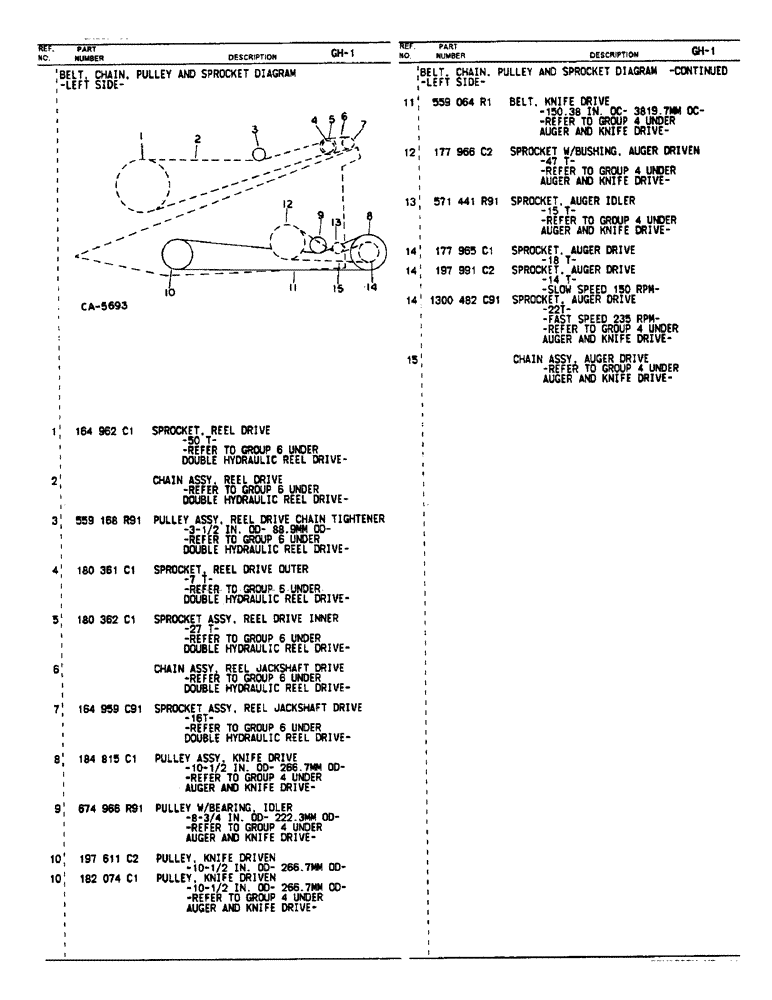

Запчасти Case IH 810 (B-02) - DRAPER HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM - LEFT SIDE (58) - ATTACHMENTS/HEADERS

1

164962C1

DRIVE SPROCKET

SPROCKET, reel drive, 50T, refer to group 6 under double hydraulic reel drive

1шт.

2

CHAIN ASSY, reel drive, refer to group 6 under double hydraulic reel drive

1шт.

3

559168R91

PTO

PULLEY ASSY, reel drive chain tightener, 3-1/2 in. OD, 88.9mm OD, refer to group 6 under double hydraulic reel drive

1шт.

4

180361C1

SPROCKET ASSY.

SPROCKET, reel drive outer, 7T, refer to group 6 under double hydraulic reel drive

1шт.

5

180362C1

SPROCKET ASSY.

SPROCKET ASSY, reel drive inner, 27T, double hydraulic reel drive

1шт.

6

CHAIN ASSY, reel jackshaft drive, refer to group 6 under double hydraulic reel drive

1шт.

7

164959C91

SPROCKET ASSY.

SPROCKET ASSY, reel jackshaft drive, 16T, refer to group 6 under double hydraulic reel drive

1шт.

8

184815C1

PULLEY ASSY.

PULLEY ASSY, knife drive, 10-1/2 in. OD, 266.7mm OD, refer to group 4 under auger and knife drive

1шт.

9

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

W/BEARING, idler, 8-3/4 in. OD, 222.3mm OD, refer to group 4 under auger and knife drive

1шт.

10

197611C2

X

PULLEY, knife driven, 10-1/2 in. OD, 266.7mm OD

1шт.

10

182074C1

PULLEY

knife driven, 10-1/2 in. OD, 266.7mm OD, refer to group 4 under auger and knife drive

1шт.

11

559064R1

V-BELT,0.88" W

Knife drive, 150.38 in. OC, 3819.7mm OC, Refer to group 4 under auger and knife drive 0.88" W

1шт.

12

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47T, refer to group 4 under auger and knife drive

1шт.

13

571441R91

SPROCKET ASSY.,15T

SPROCKET, auger idler, 15T, refer to group 4 under auger and knife drive

1шт.

14

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T

1шт.

14

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T, slow speed 150 RPM

1шт.

14

1300482C91

SPROCKET ASSY.

SPROCKET, auger drive, 22T, fast speed 235 RPM, refer to group 4 under auger and knife drive

1шт.

15

CHAIN ASSY, auger drive, refer to group 4 under auger and knife drive

1шт.
