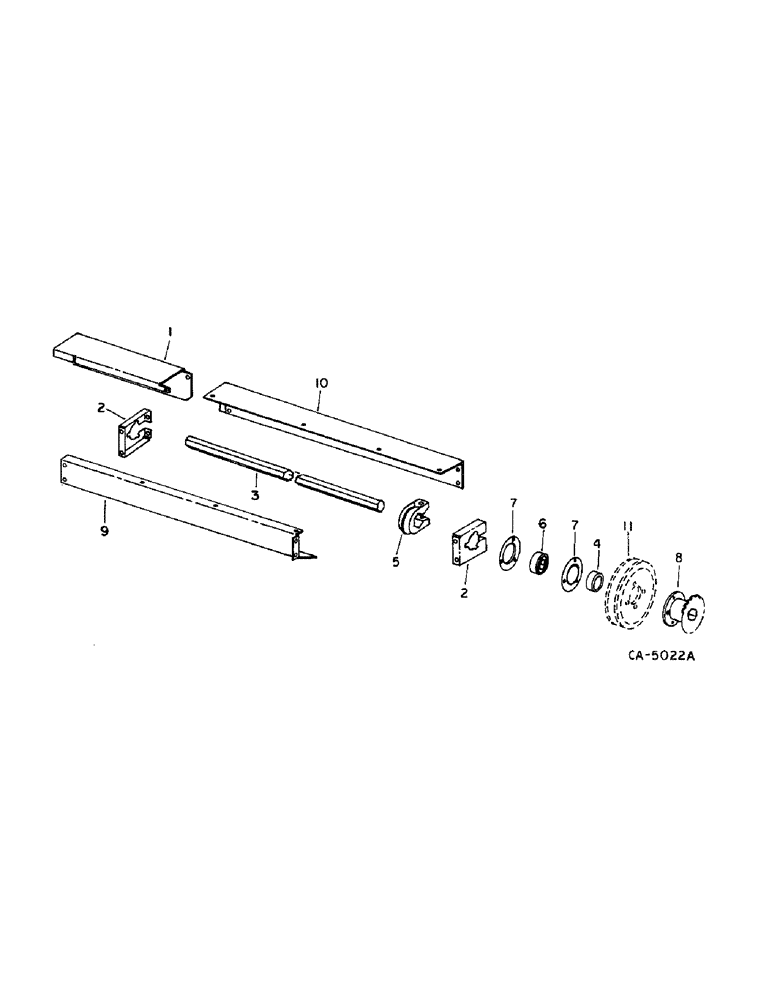

Запчасти Case IH 810 (B-23) - HEADER JACKSHAFT, HEADER, JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

178253C1

COVER

header jackshaft coupling

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

546766R1

HEADED PIN,3/8" x 5 1/2"

PIN, 3/8 x 5.5 znd std-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .065 znd

1шт.

2

178254C1

SUPPORT

header jackshaft shield

2шт.

3

197167C1

JACKSHAFT

header

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

8шт.

4

650363R1

SPACER

1-1/4 x 1 std pipe

1шт.

5

225265R1

CLAMP

COLLAR, jackshaft, replaces 177961C1

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, header jackshaft outboard

1шт.

7

180955C1

FLANGED BEARING,0.375"

FLANGE, header jackshaft outboard brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

142619H

WASHER

.406 x .750 x .105

6шт.

8

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T, refer to this section group 4 under auger and knife drive

1шт.

9

197391C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

10

197401C2

SHIELD

jackshaft upper

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

6шт.

11

PULLEY ASSY, drive, refer to this section group 4 under auger and knife drive

1шт.
