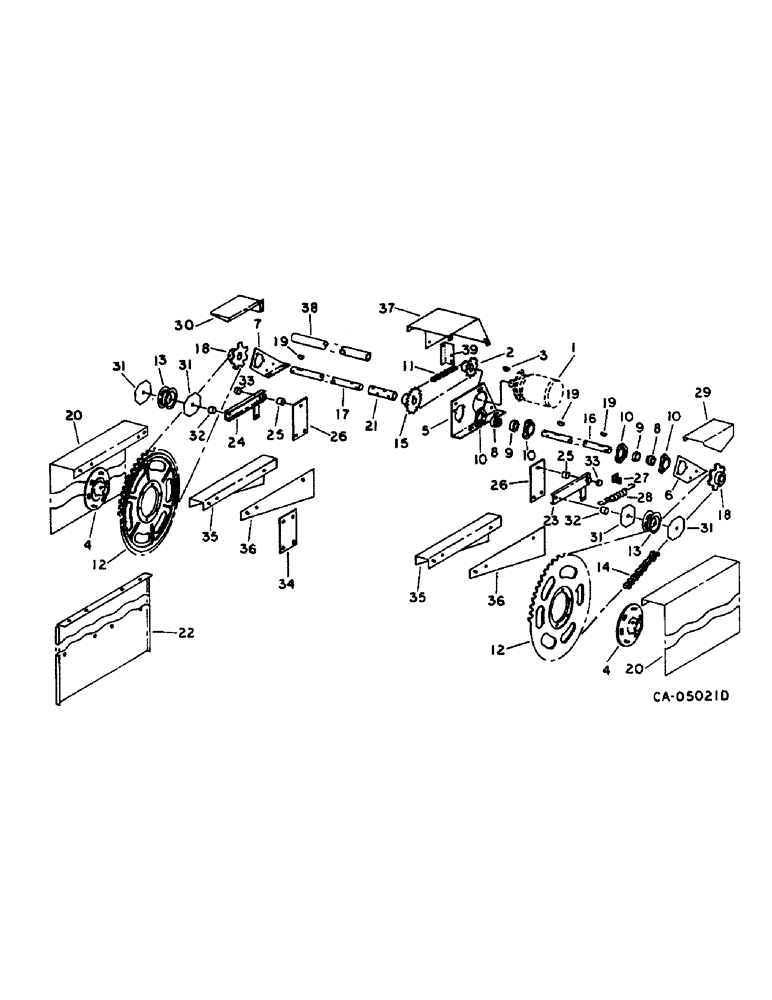

Запчасти Case IH 810 (B-21) - REEL, DOUBLE HYDRAULIC REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic reel drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

164959C91

SPROCKET ASSY.

SPROCKET ASSY, reel jackshaft drive, 16T

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8 NF x 3/8 znp c/pt hdl/hs set

1шт.

3

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

4

164960C1

HUB

driven sprocket

2шт.

271501

SOCKET

NUT, 7/16 type 5

4шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

7/16 x 2-3/4 type 5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

5

180354C2

BRACKET

motor mounting

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

180355C1

BRACKET

outer end LH

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

180356C1

BRACKET

outer end RH

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

ASSY, drive shaft

4шт.

9

557995R11

COLLAR

W/SET SCREW, lkg

4шт.

10

571425R1

FLANGED BEARING

bearing

8шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

CHAIN ASSY, reel jackshaft drive, use 39 links from 10 ft roll marded 1791D, 1 offset link 1315D and 1 connecting link 1310D

1шт.

12

164962C1

DRIVE SPROCKET

SPROCKET, reel drive, 50T

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga znd

1шт.

13

559168R91

PTO

PULLEY ASSY, chain tightener, 3-1/2 in. OD, 88.9mm OD

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

14

CHAIN ASSY, reel drive, use 129 links from 10 ft roll marked 569089R91, 5 connecting links 587372R91, 5 offset links 456929R91 and 4 roller links 456979R91

2шт.

15

180362C1

SPROCKET ASSY.

SPROCKET ASSY, reel drive inner, 27T

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8NF X3/8 znp c/pt hdl/hs set

1шт.

16

180357C1

SHAFT

reel drive LH

1шт.

17

180359C2

SHAFT

ASSY, reel drive RH

1шт.

18

180361C1

SPROCKET ASSY.

SPROCKET, reel drive outer, 7T

2шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

2шт.

19

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 SAE B Woodruff

3шт.

20

187266C1

SUPPORT

SHIELD, reel driven sprocket

2шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

21

180360C2

HUB

coupler

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 X 2-1/4 std-hd

1шт.

22

179057C1

PLATE

EXTENSION, reel shield, serial no. 23000 and below

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 znd hex-hd mach

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

23

170726C91

ARM

ASSY, reel drive chain idler left, includes ref. no. 33

1шт.

24

170727C91

ARM

ASSY, reel drive chain idler right, includes ref no. 33

1шт.

25

675601R1

SPACER

idler arm pivot

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

.5313 x 1.000 x .105

2шт.

26

165134C1

BAR

SUPPORT, idler pivot

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

27

631965R1

BRACE

ANGLE, idler spring anchor

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

662632R1

SPRING

idler pulley

2шт.

29

180365C2

SHIELD

reel drive LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znp slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

30

180366C2

SHIELD

reel drive RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znp slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

31

178060C1

GUARD

SHIELD, idler

4шт.

32

156879C1

SPACER

chain tightener pulley, serial no. 26000 and below

2шт.

20601R1

WASHER

.531 x 1.250 x .12

1шт.

33

398274R1

BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L

idler arm

2шт.

34

179056C1

PLATE

EXTENSION, shield support

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

35

187251C1

SUPPORT

SHIELD, reel driven sprocket

2шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

36

187264C1

BAR

SHIELD, reel driven sprocket cover

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

142619H

WASHER

.406 x .750 x .105

16шт.

37

187268C2

SHIELD

ASSY, motor drive

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

2шт.

38

HOSE, drive shaft tube LH, use 50.5 in. from 20 ft length marked 1307207C1

1шт.

38

HOSE, drive shaft tube center, use 81.7 in. from 20 ft length marked 1307207C1

1шт.

38

HOSE, drive shaft tube RH, use 48.5 in. from 20 ft length marked 1307207C1

1шт.

39

1313016C1

ANGLE, shield support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.
