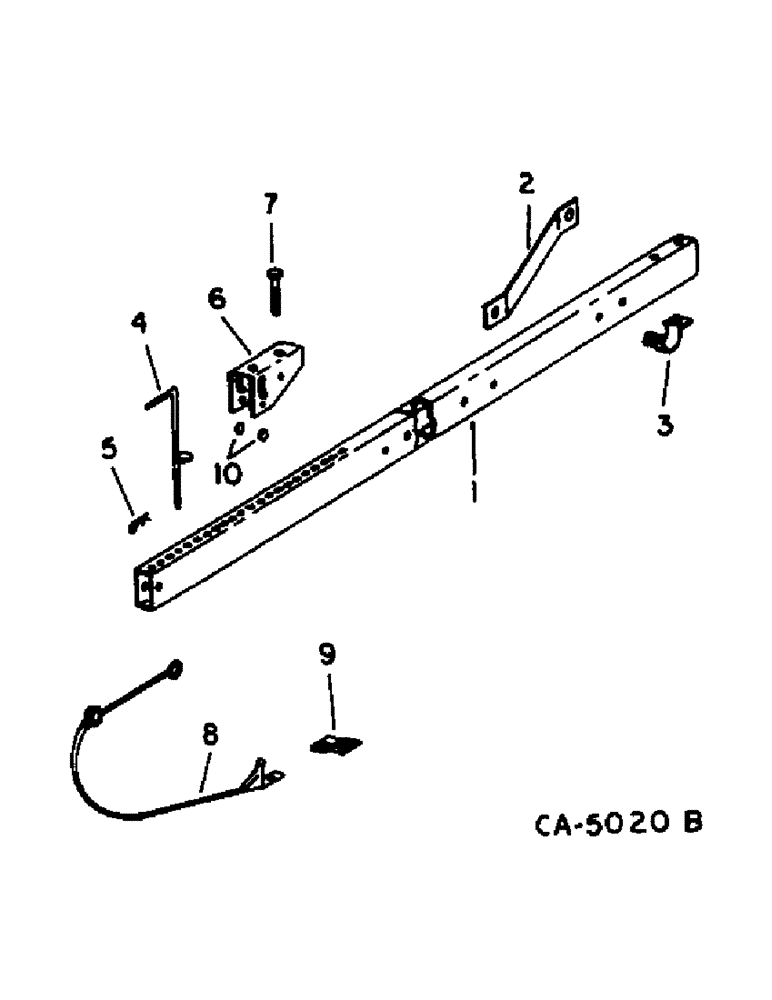

Запчасти Case IH 810 (B-18) - REEL, REEL SUPPORT ARMS (58) - ATTACHMENTS/HEADERS

1

180353C2

ARM

reel support

2шт.

2

197954C1

BRACE

reel support arm

2шт.

3

176787C2

CLAMP

reel arm

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 znd type 5

4шт.

4

176788C2

ROD ASSY.

ROD ASSY, reel locking

2шт.

5

586591R1

COTTER PIN

PIN, 1/8 QA cot.

2шт.

6

176728C1

CLEVIS

W/NUT REEL LIFT ARM

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

7

667486R1

BOLT

BOLT, reel lift arm

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

178618C1

ROD ASSY.

ROD ASSY, divider LH, long

1шт.

8

178619C1

ROD ASSY.

ROD ASSY, divider RH, long

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 8 ga znd

1шт.

9

197875C1

FILLER

divider rod

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

2шт.

10

872534R1

SPACER,1/2" Pipe x 3/8"

pivot pin

4шт.
