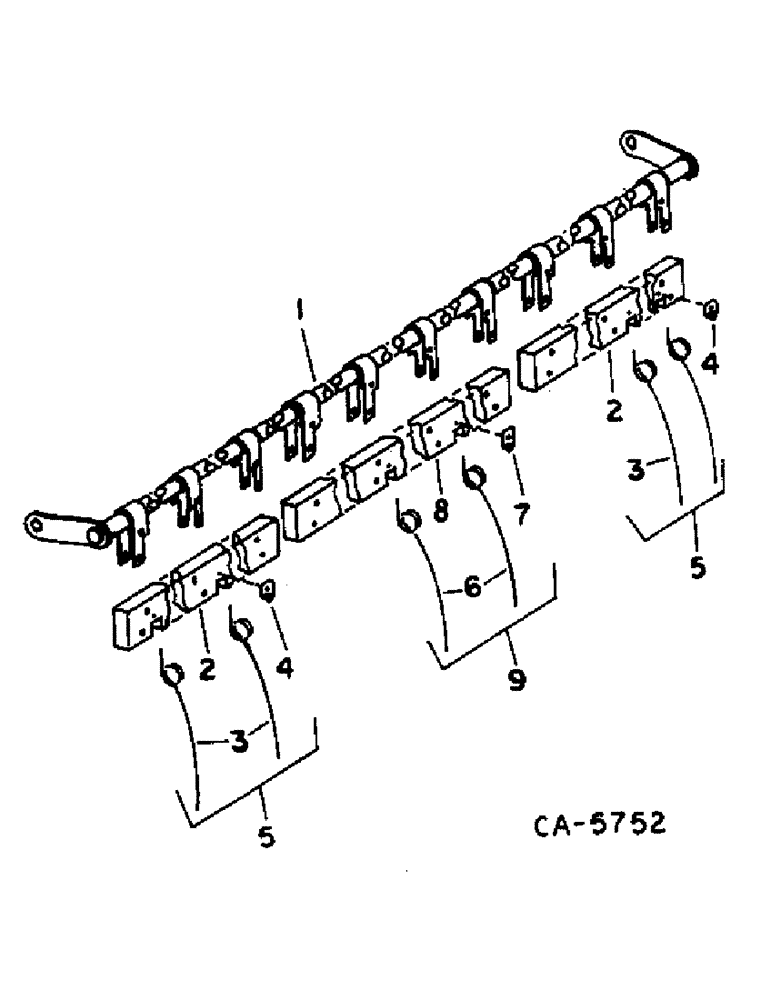

Запчасти Case IH 810 (B-17) - REEL, BAT ASSY (58) - ATTACHMENTS/HEADERS

1

167679C2

BAT

SHAFT ASSY

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 CAD p/t lock type 1

1шт.

2

BAT, wood, not serviced separately, order bat assy, 598188R91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

26шт.

4

592616R1

CLIP

riveted tine

26шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

5

598188R91

BAT

ASSY, 57 in., includes ref nos. 2, 3 and 4

2шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

14шт.

7

592616R1

CLIP

riveted tine

14шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

8

BAT, wood, not serviced separately, order bat assy, 598194R91

1шт.

9

598194R91

BAT ASSY.

BAT ASSY, 63 in., includes ref nos. 6, 7 and 8

1шт.
