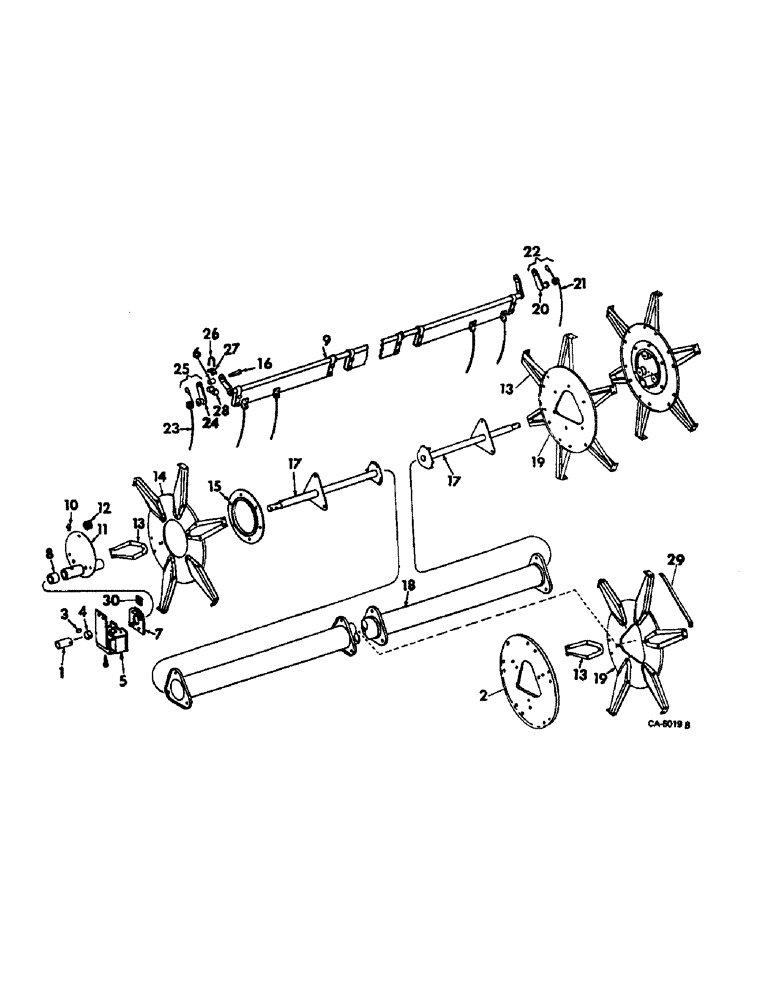

Запчасти Case IH 810 (B-14) - REEL, PICKUP REEL, 6 IN. DIA. CENTER SHAFT (58) - ATTACHMENTS/HEADERS

1

167612C1

SPACER

reel driven hub

2шт.

2

180379C1

RETAINER

PLATE ASSY, aux spider stiffener

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

NUT, 5/16 hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard

1шт.

4

180400C91

COLLAR

2шт.

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW, 3/8-24 x 5/16 hex-soc-hd

1шт.

5

180380C1

BRACKET

eccentric adjusting LH

1шт.

5

179231C2

BRACKET

eccentric adjusting RH

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

633184R1

SET SCREW

1/2 x 2-1/4 C-Z sq-hd set

1шт.

6

598246R1

SPACER

.568 ID x .810 OD x 1.25 in. long tubing

12шт.

6

1316568C1

SPACER

.515 ID x .840 OD x 1.12 in. long tubing

12шт.

7

598217R1

PLATE

eccentric adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex jam

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

633184R1

SET SCREW

1/2 x 2-1/4 set

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

167666C1

BUSHING

eccentric roller frame

4шт.

9

BAT ASSY, batshaft, refer to this section group 6 under bat assy

6шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

11

598241R11

HUB ASSY.

FRAME ASSY, eccentric roller, includes ref. nos. 8 and 10

2шт.

12

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING ASSY, roller ball

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

167657C1

ARM

ASSY, reel

36шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

180377C1

PLATE

eccentric spider

2шт.

15

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

16

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

1/2 x 2-1/2 hex. shank, used with spacer, 598246R1

12шт.

16

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, used with spacer, 1316568C1

12шт.

9411818

NUT

1/2-NF CAD p/t lock type 5

12шт.

178374R1

WASHER

.531 x 1.250 x .054, used w/bolt, 827385C1

12шт.

120390

WASHER,1/2"

.562 x 1.375 x .086, used w/bolt, 180181

12шт.

17

179229C1

SHAFT

driving end

2шт.

23040R1

WASHER

1-5/8 x 2-1/4 x 11 ga

1шт.

18

167618C1

SHAFT

center

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-3/4 znd sq-nk crg

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 C-Z hex lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

1шт.

19

180378C1

PLATE, spider

4шт.

20

592627R21

STRAP

ASSY, finger RH

6шт.

21

167651C1

TORSION SPRING

FINGER, aux pickup RH

6шт.

22

167606C91

TINE

FINGER ASSY, aux pickup RH, includes ref. nos. 20 and 21

6шт.

23

167652C1

TINE,Coiled, 1 Prong, 437mm L

FINGER, aux pickup LH

6шт.

24

592627R21

STRAP

ASSY, finger LH

6шт.

25

167605C91

TINE

FINGER ASSY, aux pickup LH, includes ref. nos. 23 and 24

6шт.

26

598236R1

U-BOLT,U, 1/4" - 20

BOLT, U

36шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4-20 cdp hex. lock

1шт.

27

598235R1

BEARING CAP,1.025"

bearing

36шт.

28

598234R1

BASE

bearing

36шт.

29

(Not used this application)

1шт.

30

(Not used this application)

1шт.
