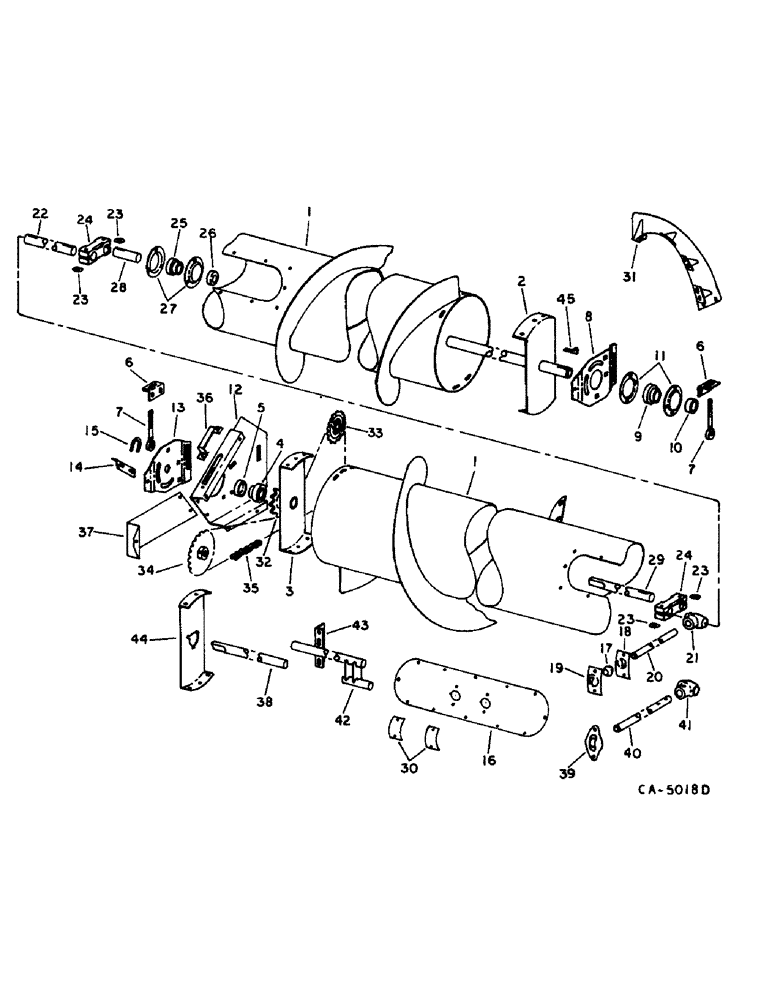

Запчасти Case IH 810 (B-12) - AUGER, HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

180339C3

AUGER

ASSY, header, 23.6 in. OD, 600.0 mm OD

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

2

180344C2

SHAFT

ASSY, auger LH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

6шт.

3

180346C91

RETAINER

W/BRG, RH shaft, includes ref. no. 4

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

6шт.

4

586609R92

BEARING ASSY,1.0005" ID x 52 mm OD x 1.21875"

ASSY

1шт.

5

455102R21

COLLAR

W/SET SCREW, bearing LKG

1шт.

6

177065C1

ANGLE

auger adjusting

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

7

180350C1

EYEBOLT,1/2" - 13 x 229mm

BOLT, auger adjusting eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

8

177081C1

BRACKET

auger bearing LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

9

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING, auger shaft LH

1шт.

10

455112R11

COLLAR

W/SET SCREW, bearing LKG

1шт.

11

663562R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

12

180351C2

SUPPORT

auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

4шт.

13

177082C1

BRACKET

auger bearing RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

14

177663C4

ANGLE

finger adjusting

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

finger adjusting

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

2шт.

16

150731C2

COVER

auger finger

1шт.

24580R1

SELF-TAP SCREW,Slotted Pan Hd, 5/16" x 1/2"

SCREW, 5/16 x 1/2 p/hds tap

12шт.

17

170720C1

BUSHING,13.13mm ID x 28.4mm OD

finger guide, for 1/2 in., 12.7 mm dia. finger

12шт.

18

150723C1

RETAINER

finger bushing inner, for 1/2 in., 12.7 mm dia. finger

12шт.

19

150726C1

RETAINER

finger bushing outer, for 1/2 in., 12.7 mm dia. finger

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

153416C1

SHAFT

FINGER, retractable, 1/2 in. dia., 12.7mm dia.

12шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

21

HUB, finger, for 1/2 in., 12.7 mm dia. finger, not serviced separately order package 180925C92

16шт.

22

159181C1

SHAFT

auger center, serial no. 30000 and below

1шт.

23

28459KA

WASHER

auger center shaft, serial no. 30000 and below

4шт.

24

158912C1

CLAMP

auger center shaft, serial no. 30000 and below

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, auger shaft inner

2шт.

26

455102R21

COLLAR

W/SET SCREW, brg lkg

2шт.

27

937517R1

FLANGE

inner bearing

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

28

558353R1

SHAFT

auger stub, serial no. 30000 and below

1шт.

29

180352C1

SHAFT

auger adjusting, serial no. 30000 and below

1шт.

30

167823C1

COVER

auger finger hole

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

8шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

8шт.

31

936768R92

AUGER

EXTENSION ASSY, auger LH

1шт.

31

936769R92

AUGER

EXTENSION ASSY, auger RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

32

180338C1

DRIVE SPROCKET

SPROCKET, drive, 41T

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

565442R91

SPROCKET

idler, 17T

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.531 x 1.500 x .105 sq/h

1шт.

34

180336C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 25T

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21916R1

PIN

1/4 x 2. hd type 1

1шт.

35

CHAIN ASSY, drive, use 105 links from 10 ft roll marked 1791D, 1 connecting link 1310D and 2 offset links 1315D

1шт.

36

180334C1

SHIELD

RH drive upper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

2шт.

37

180335C1

SHIELD

RH draper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

3шт.

38

184939C2

SHAFT

auger adjustment, serial no. 30001 and above

1шт.

39

189649C1

GUIDE

finger, for 5/8 in., 15.7mm dia. finger

12шт.

273924

SNAP RING

NUT, 1/4 CAD p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

40

184934C3

FINGER

retractable, for 5/8 in. dia, 15.7 mm dia.

12шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

41

187071C1

HUB

finger, for 5/8 in., 15.7mm dia. finger

1шт.

42

185638C1

SHAFT ASSY.

SHAFT ASSY, center, serial no. 30001 and above

1шт.

43

197879C1

ANGLE

auger center shaft clamp, serial no. 30001 and above

1шт.

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

BOLT, 3/8 x 1.38CL x 1.75 x .75

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

1шт.

44

(Not used in this application)

1шт.

45

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib-hd sq tapered

1шт.

180925C92

PACKAGE

FINGER, service package, for 5/8 in. dia, 15.7 mm dia., consists of

1шт.

184934C3

FINGER

retractable

1шт.

187071C1

HUB

finger

1шт.

189649C1

GUIDE

finger

1шт.
