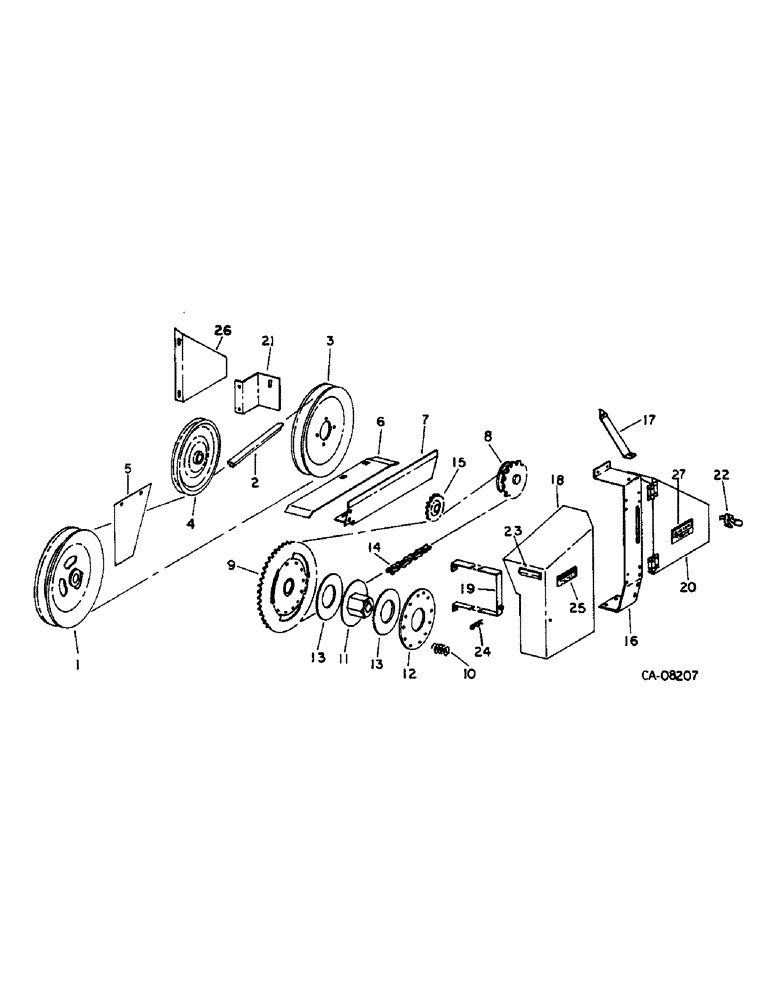

Запчасти Case IH 810 (B-10) - AUGER, AUGER AND KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

197611C2

X

PULLEY, driven, 10-1/2 in. OD, 266.7mm OD, use w/197610C1 shaft

1шт.

1

182074C1

PULLEY

driven, 10-1/2 in. OD, 266.7mm OD, use w/184757C1 shaft

1шт.

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8 pln jam type 5

2шт.

2

559064R1

V-BELT,0.88" W

Drive, 150.38 in. OC, 3819.7mm OC 0.88" W

1шт.

3

184815C1

PULLEY ASSY.

PULLEY ASSY, drive, 10-1/2 in. OD, 266.7mm OD

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

W/BEARING, idler, 8-3/4 in. OD, 222.3mm OD

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

668752R1

WASHER

.906 x 1.250 x .054

1шт.

5

187267C1

SHIELD

knife drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

197955C1

SHIELD, knive drive belt

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

7

(Not used in this application)

1шт.

8

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T

1шт.

8

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T, slow speed 150 rpm, parts accessory

1шт.

8

1300482C91

SPROCKET ASSY.

SPROCKET, auger drive, 22T, replaces 1305959C, high speed 235 RPM

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

1шт.

9

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47T

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

10

568243R1

SPRING

clutch

12шт.

11

177962C1

HUB

auger clutch

1шт.

12

177963C1

PLATE

clutch

1шт.

13

177964C2

FACING

clutch

2шт.

14

CHAIN ASSY, auger drive, use 91 links 10 ft roll marked 611362R91, 1 connecting link 574532R91 and 2 offset link 612612R91

1шт.

15

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler, 15T

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

16

177968C3

SUPPORT

idler sprocket

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

177969C1

BRACE

idler support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

180569C92

SHIELD

ASSY, knife drive, includes ref. no. 25

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

19

180329C1

BRACKET

ASSY, shield

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

2шт.

20

1319301C91

SHIELD

W/HINGES, rear drive, includes ref. no. 27, replaces 177972C1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

21

189224C3

SUPPORT

rear shield latch

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

22

168481C1

LATCH ASSY.

LATCH ASSY, auger drive rear shield

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

174732C1

REFLECTOR

amber

1шт.

24

585614R1

PIN

1/16 quick attachable cot.

1шт.

25

1320694C1

DECAL

PRODUCT GRAPHIC, danger instruction, replaces 176977C1

1шт.

26

187248C1

GUARD ASSY.

SHIELD ASSY, knife drive pulley rear

1шт.

27

179749C2

PRODUCT GRAPHIC

danger

1шт.
