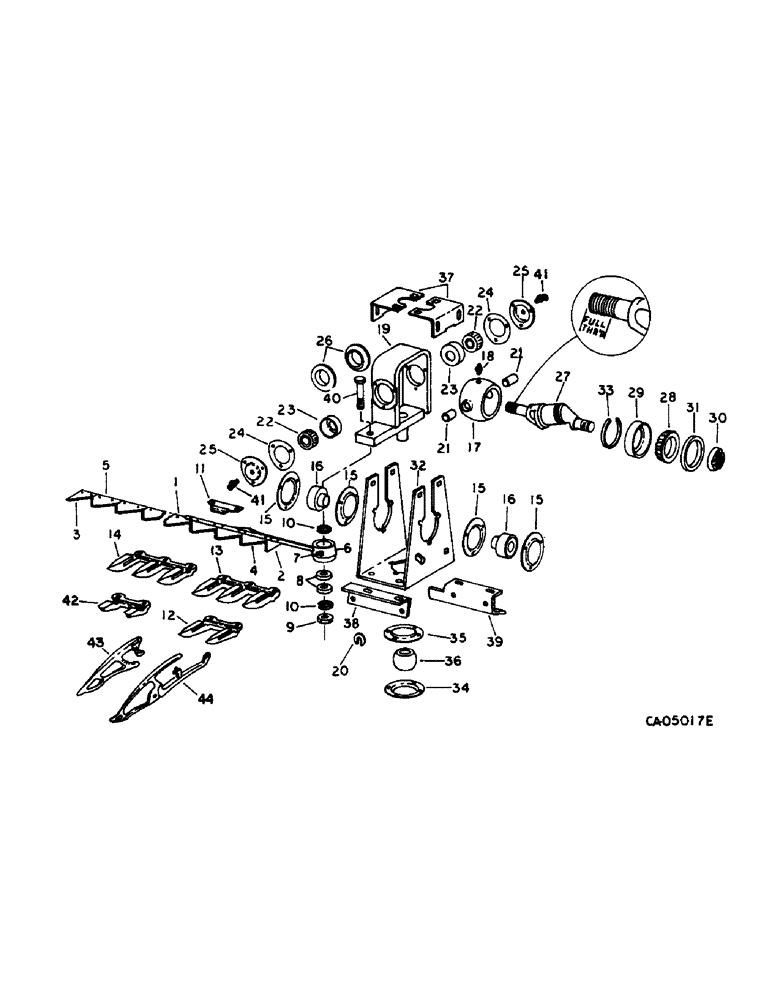

Запчасти Case IH 810 (B-08) - KNIFE, KNIFE (58) - ATTACHMENTS/HEADERS

1

197183C93

KNIFE ASSY

plain, includes ref. nos. 2 thru 6

1шт.

1

197185C93

BLADE

KNIFE ASSY, chrome, includes ref. nos. 2 thru 6, parts accessory

1шт.

13968R1

RIVET,Csk, 1/4" x 7/8"

1/4 x 7/8 ctsk-hd

1шт.

14755R1

RIVET,Oval Hd, .203" x 5/8"

no. 6 x 5/8 sm-o-hd

1шт.

14763R1

RIVET,Oval Hd, .203" x 7/8"

no. 6 x 7/8 sm o-hd

1шт.

2

1319390C1

KNIFE SECTION

SECTION, half LH, plain serrated, replaces 634789R1 & 634790R1

1шт.

3

1319391C1

KNIFE SECTION

SECTION, half RH, plain serrated, replaces 634791R1 & 634792R1

1шт.

4

634787R2

KNIFE SECTION

SECTION, knife LH, plain serrated

3шт.

4

634788R2

KNIFE SECTION

SECTION, knife LH, chrome serrated, parts accessory

3шт.

5

634793R2

KNIFE SECTION

SECTION, knife, plain serrated

61шт.

5

634794R2

KNIFE SECTION

SECTION, knife, chrome serrated, parts accessory

61шт.

6

178466C91

HEAD ASSY.

HEAD W/BEARINGS ETC., knife, includes ref. nos. 7, 8 and 10

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tapping lub

1шт.

8

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

knife head ball

2шт.

9

22244R1

LOCK NUT

3/4 nylon insert

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , knife head brg 1.625", Int, #162

2шт.

11

176722C1

CLIP

knife hold down

15шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

633098R1

GUARD

knife double

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

176724C1

GUARD

knife triple LH

1шт.

550795R1

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

633240R1

GUARD

knife triple

16шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

202909C1

BEARING HOUSING

FLANGE, shaft bearing, replaces 470746R1

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

1306680C1

FLANGE NUT

NUT, 3/8 pt flange

1шт.

16

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

shaft support

2шт.

17

178020C1

HOUSING

bearing

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

19

187067C1

CLEVIS

YOKE W/STUD, drive, serial no. 26000 and below

1шт.

19

181865C2

SUPPORT ASSY.

YOKE W/STUD, drive, serial no. 26001 and above

1шт.

20

(Not used in this application)

1шт.

21

178025C1

PIN,21.49mm OD x 36.58mm L

brg housing

2шт.

22

458952R91

ROLLER BEARING

W/CUP AND SEAL, roller, includes ref. no. 25, serial no. 19000 and below

2шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, serial no. 19001 and above

2шт.

23

371883R1

BEARING CUP

2шт.

24

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

brg retainer, .002

5шт.

24

458956R1

SHIM

brg retainer, .005

5шт.

24

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

brg retainer, .010

12шт.

25

1316859C1

CAP

RETAINER, brg, replaces 458956R1

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

2шт.

26

197895C1

SEAL

SEAL, bearing

2шт.

27

197610C1

SHAFT

wobble, 1.65 in. full thread, serial no. 30000 and below, for service order, (1) shaft, wobble 184757C1, (1) pulley, driven 182074C1

1шт.

27

1305084C1

SHAFT

wobble, replaces 184757C1, 2.05 in. full thread, serial no. 30001 and above

1шт.

28

G15215

ROLLER BEARING

BEARING ASSY, cone

2шт.

29

619387R1

BEARING CUP

BEARING, cup

2шт.

30

178028C1

LOCK NUT

lock

1шт.

The spanner wrench for the 178028C1 is listed in 1600 service manual section 9115 as a 16-569.

1шт.

31

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL, oil

2шт.

32

1307386C2

SUPPORT

drive, replaces 178030C2 by also ordering, (1) flange 1307388C1 and (1) flange 1307387C1

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

1шт.

9412231

NUT

5/8 PHC p/t lock type 8

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

1шт.

33

627095C1

SPACER

snap ring cup

1шт.

34

167878C11

FLANGE

W/FITTING, brg, 3 bolt, use w/drive support 1780303C2

1шт.

34

1307388C1

FLANGE

W/FITTING, brg, 4 bolt, use w/drive support 1307386C2

1шт.

35

202909C1

BEARING HOUSING

FLANGE, bearing, 3 bolt, replaces 470746C1, use w/drive support 178030C2

1шт.

35

1307387C1

FLANGED BEARING

bearing, 4 bolt, use w/drive support 1307386C2

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

25534R1

WASHER

.406 x .812 .065 PHC hdn

1шт.

36

178031C91

BEARING ASSY,1.125" ID x 1.438"

W/BEARING, ball, serial no. 26000 and below

1шт.

36

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

HOUSING W/BEARING, ball, replaces 181866C91, serial no. 26001 and above

1шт.

37

178033C1

SHIELD

drive

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

38

(Not used in this application)

1шт.

39

178035C1

CONDUIT

CHANNEL, rear mounting

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 hex-hd type 8

1шт.

9412231

NUT

5/8 PHC p/t lock type 8

1шт.

40

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

knife head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga hard

1шт.

41

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

2шт.

42

176723C1

GUARD

knife double, stub

6шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

43

(Not used in this application)

1шт.

44

(Not used in this application)

1шт.

1330048C91

WOBBLE BOX

800 SERIES WOBBLE BOX

1шт.

1330048C91R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

1330048C91C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING

1шт.

1307388C1

FLANGE

W/FITTING

1шт.

1307387C1

FLANGED BEARING

1шт.

178020C1

HOUSING

1шт.

178025C1

PIN,21.49mm OD x 36.58mm L

2шт.

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL

2шт.

1307386C2

SUPPORT

DRIVE SUPPORT

1шт.

178033C1

SHIELD

2шт.

181865C2

SUPPORT ASSY.

SUPPORT W/STUD

1шт.

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSY

1шт.

197895C1

SEAL

BEARING SEAL

2шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

2шт.

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

.002

2шт.

458956R1

SHIM

.005

2шт.

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

.010

3шт.

1316859C1

CAP

RETAINER

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

202909C1

BEARING HOUSING

FLANGE

4шт.

1306680C1

FLANGE NUT

NUT, 3/8 p/t flange

1шт.

G15215

ROLLER BEARING

BEARING CONE

2шт.

619387R1

BEARING CUP

2шт.

627095C1

SPACER

1шт.

1305084C1

SHAFT

WOBBLE SHAFT

1шт.

178028C1

LOCK NUT

LOCK NUT

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, and all attaching hardware

2шт.
