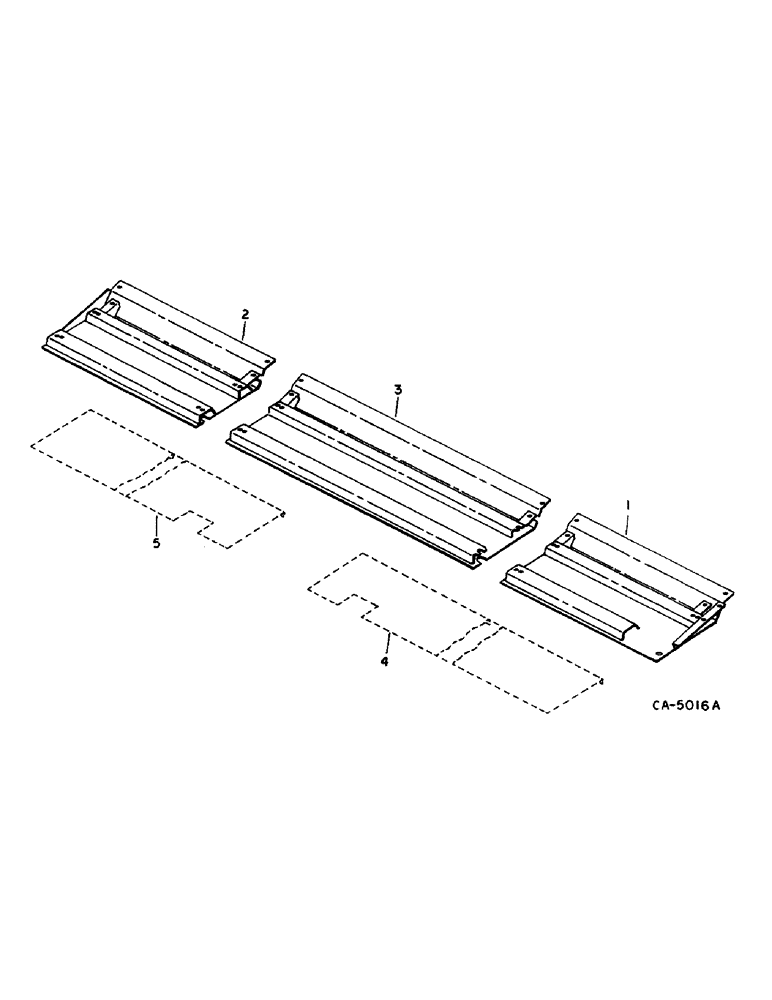

Запчасти Case IH 810 (B-07) - DRAPER HEADER, BOTTOM SHIELDS (58) - ATTACHMENTS/HEADERS

1

197189C2

GUARD ASSY.

SHIELD ASSY, bottom LH

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT, 3/8 x 1 znp slt-truss-hd

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

2

197191C2

GUARD ASSY.

SHIELD ASSY, bottom RH

1шт.

21721R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 3/4", Gr 2

BOLT, 1/2 x 3/4 C-Z sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 znp slt-truss-hd

1шт.

3

176732C2

GUARD ASSY.

SHIELD ASSY, bottom center

1шт.

4

SHEET, bottom LH, refer to this section group 3 under header draper extension

1шт.

5

SHEET, bottom RH, refer to this section group 3 under header draper extension

1шт.
