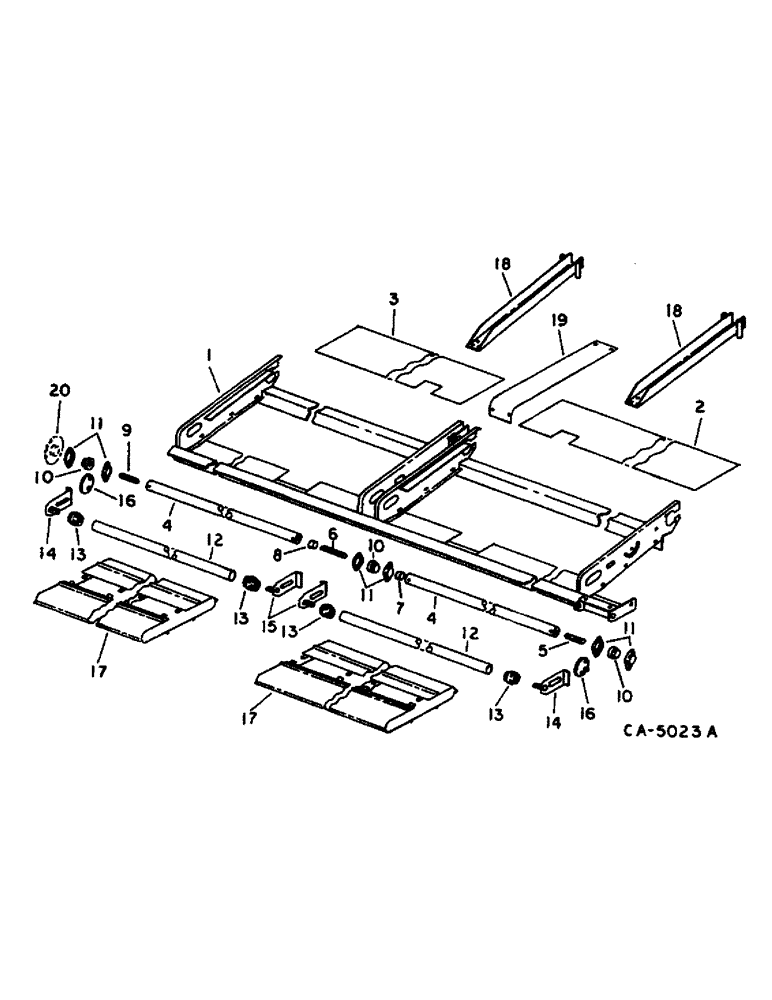

Запчасти Case IH 810 (B-06) - DRAPER HEADER, HEADER DRAPER EXTENSION (58) - ATTACHMENTS/HEADERS

1

180277C1

FRAME ASSY, draper

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

180291C1

CLAMP

SHEET, bottom LH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 znp slt-truss-hd

1шт.

3

180292C1

SHEET, bottom RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 znp slt-truss-hd

1шт.

4

180293C1

TUBE

ASSY, rear roller

2шт.

22981R1

ROLL PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

4шт.

5

180296C1

SHAFT

left rear roller

1шт.

6

180297C1

SHAFT

center rear roller

1шт.

7

514026R1

SPACER, 1.0 x 1.125 std pipe

1шт.

8

581329R1

SPACER, 1.0 x 1.250 std pipe

1шт.

9

180298C1

SHAFT

right rear roller

1шт.

10

548928R91

BALL BEARING,0.882" ID x 52 mm OD x 1"

hex.

3шт.

11

F9417

FLANGE

brg, replaces 612031R1

6шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

180300C91

TUBE,2.0462, 2.0477" ID, 2.375" OD, 94.39" Length

W/BRGS, front roller, includes ref. no. 13

2шт.

13

180302C91

BALL BEARING,22.28mm Hex x 52mm OD x 25.4mm W

BEARING, hex.

4шт.

14

180303C1

SLIDE

ASSY, front roller outer

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

15

180307C1

SLIDE

ASSY, front roller inner

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

16

180309C1

PLATE

ASSY, cam adjusting

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

17

184864C1

BELT

draper

2шт.

18

180322C1

BRACE

ASSY, center

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-turss-hd

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2 x 4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 1L ga

1шт.

19

180326C1

COVER

center

1шт.

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Hd, 1/4" x 1/2"

4шт.

20

SPROCKET ASSY, driven, 25T, refer to this section group 5 under header auger

1шт.

1307278C1

CURTAIN

PACKAGE, belt lacing, consists of, (10) clips, (10) pins

1шт.
