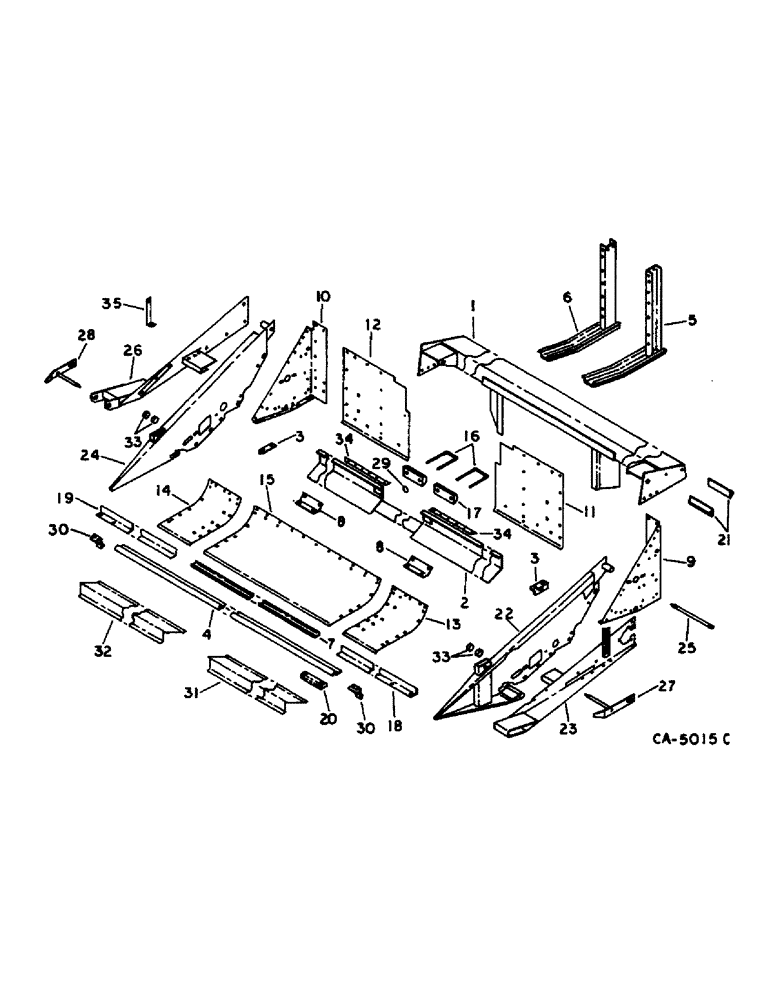

Запчасти Case IH 810 (B-04) - DRAPER HEADER, HEADER (58) - ATTACHMENTS/HEADERS

1

180260C1

BEAM ASSY, main

1шт.

2

197151C2

BEAM ASSY.

BEAM ASSY, lower

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 hex-hd flange lock

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

3

176685C2

ANGLE

stripper end

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

4

197165C1

CUTTER BAR

BAR, cutter

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

8шт.

5

176650C3

SUPPORT ASSY.

SUPPORT ASSY, J inner LH

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

2шт.

6

176651C3

SUPPORT ASSY.

SUPPORT ASSY, J inner RH

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

2шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

2шт.

7

180266C1

CHANNEL

stripper bottom

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

8

176655C1

ANGLE

bottom support

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

9

180264C4

PANEL

SHEET, LH end

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp slt-tr-hd

1шт.

10

180265C4

SHEET

RH end

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

197161C1

SHEET

BACKSHEET, left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

9шт.

12

197162C1

SHEET

BACKSHEET, right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

9шт.

13

197157C2

BOTTOM

left

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2 x 1 hex-hd flange lock

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

14

197158C2

BOTTOM

right

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

15

176683C2

BOTTOM

center

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

14шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

13шт.

16

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

17

177140C1

BAR

feeder latch u-bolt

2шт.

18

180267C1

ANGLE

stripper rear LH

1шт.

19

180268C1

ANGLE

stripper rear RH

1шт.

20

180269C1

SUPPORT

knife drive lower

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 hex-hd type 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

21

175311C1

REFLECTOR

red

2шт.

22

180270C3

DIVIDER

ASSY, LH

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

23

180312C2

SUPPORT

ASSY, end LH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

180276C3

DIVIDER

ASSY, RH

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

25

197959C2

AXLE PIN

PIN, upper pivot

2шт.

517843R1

COTTER PIN

PIN, 3/16 QA cotter

1шт.

27807R1

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

26

180319C1

SUPPORT

ASSY, end RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

5шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

5шт.

27

176830C2

BOLT

PIN ASSY, lower LH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 znd std-hd

1шт.

28

176832C2

PIN ASSY.

PIN ASSY, lower RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 znd std-hd

1шт.

29

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

30

180325C1

BRACE

center tie

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 znd

1шт.

31

180327C1

FILLER, rear roller LH

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, 8-18 x 1/2 cr-rec-pan-hd

1шт.

32

180328C1

FILLER, rear roller RH

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, 8-18 x 1/2 cr-rec-pan-hd

1шт.

33

872534R1

SPACER,1/2" Pipe x 3/8"

cylinder pivot pin

4шт.

34

NSS

NOT SOLD SEPARAT

STRIPPER, auger adjustable, order package 180583C91

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

12шт.

35

171954C1

SUPPORT, hose tie down

1шт.

436740

SCREW,Slotted Pan Hd, #10-24 x 2"

no. 10 x 2 znp p/hds mach

1шт.

22237R1

WASHER

.203 x .750 x .054

1шт.

180583C91

STRIPPER PACKAGE

PACKAGE, adjustable auger stripper bar, consists of (NSS) stripper, auger adjustable

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

12шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, (NSS) manual, installing

12шт.
