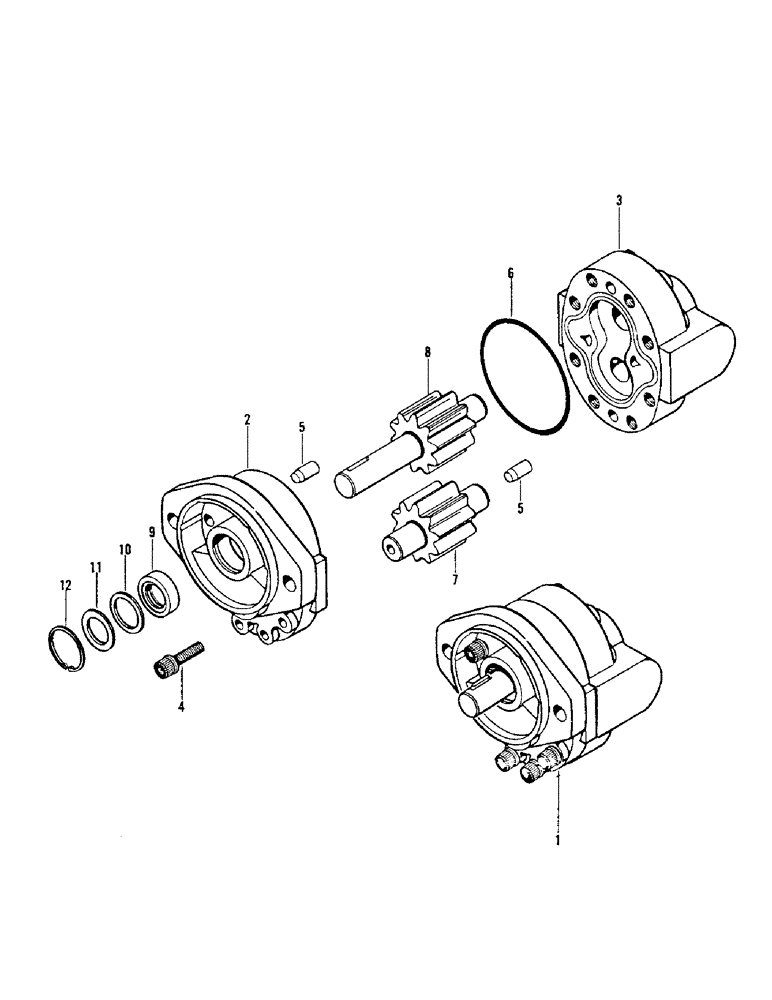

Запчасти Case IH 6500 (8-24) - HYDRAULIC GEAR MOTOR, DRAPER DRIVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1336841C1
MOTOR
ASSEMBLY - gear, draper drive
1шт.
2
NSS
NOT SOLD SEPARAT
PLATE ASSEMBLY - front
1шт.
3
NSS
NOT SOLD SEPARAT
BODY ASSEMBLY - motor
1шт.
4
NSS
NOT SOLD SEPARAT
BOLT - 12 pt. head, 5/16 NC x 1-1/2 inch
8шт.
5
NSS
NOT SOLD SEPARAT
PIN - dowel
2шт.
6
NSS
NOT SOLD SEPARAT
O-RING - 3 I.D. x 3/32 inch thick
1шт.
Part of Repair Seal Kit, P/N 1336842C1
1шт.
7
NSS
NOT SOLD SEPARAT
GEAR ASSEMBLY - idler, 2-3/4 inch long
1шт.
8
NSS
NOT SOLD SEPARAT
GEAR ASSEMBLY - drive, 4-3/4 inch long
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - oil, gear shaft
1шт.
Part of Repair Seal Kit, P/N 1336842C1
1шт.
10
NSS
NOT SOLD SEPARAT
RING - back-up, gear shaft
1шт.
Part of Repair Seal Kit, P/N 1336842C1
1шт.
11
NSS
NOT SOLD SEPARAT
WASHER - gear shaft
1шт.
Part of Repair Seal Kit, P/N 1336842C1
1шт.
12
NSS
NOT SOLD SEPARAT
RING - internal snap
1шт.
Part of Repair Seal Kit, P/N 1336842C1
1шт.
1336842C1
KIT
SEAL KIT - repair, Includes: ref. nos. 6, 9, 10, 11,12
1шт.
Выбрано товаров: 18
