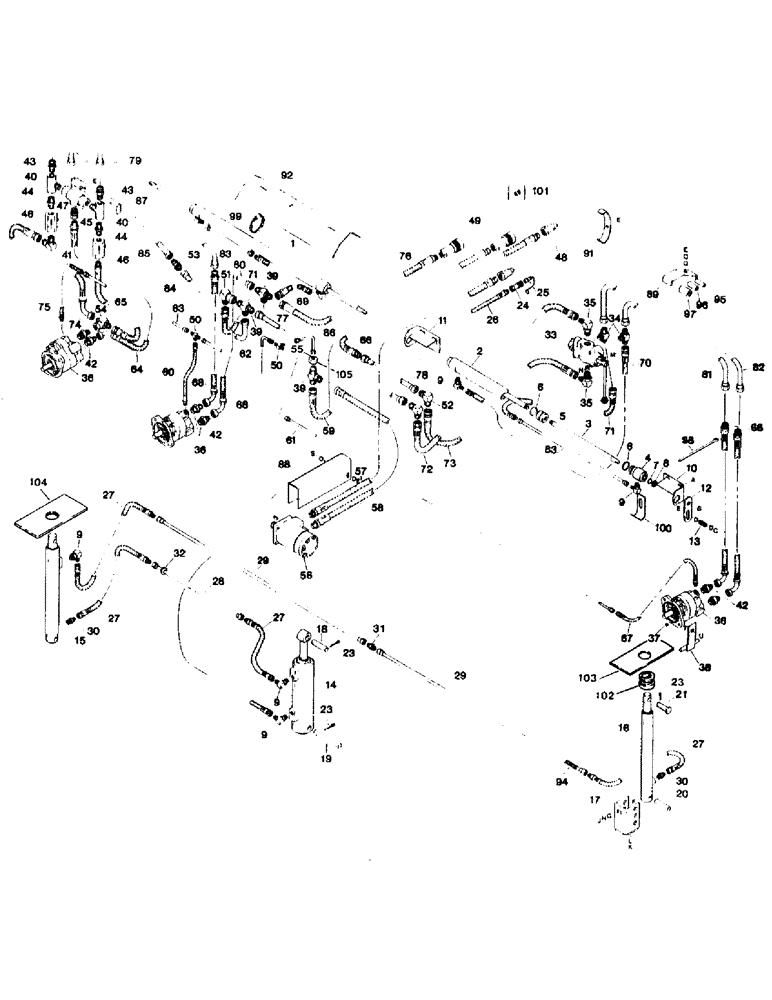

Запчасти Case IH 6500 (8-16) - HYDRAULICS, 36 FOOT HEADER (08) - HYDRAULICS

1

1336908C1

CYLINDER

ASSEMBLY - deck shaft (Includes items 2-8)

2шт.

2

1336909C1

ROD

BARREL - cylinder

2шт.

3

1336910C1

ROD

- cylinder

4шт.

4

1336700C2

PLUG

- cylinder

4шт.

5

1336699C1

PISTON

- cylinder

2шт.

6

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- piston

6шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- piston

4шт.

8

1336701C1

WIPER SEAL

- wiper

4шт.

9

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degrees male, 9/16 o-ring x 3/8 inch 37 degrees JIC tube

7шт.

10

1336705C1

BRACKET

- cylinder, L/H

2шт.

11

1336706C1

BRACKET

- cylinder, R/H

2шт.

a

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

8шт.

12

1336707C1

ANCHOR

- cylinder rod

4шт.

b

23260R1

NUT,1/2"-13, GB

- lock, 1/2 inch NC, nylon insert

4шт.

13

1336708C1

SPRING

- anchor

4шт.

c

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

8шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

4шт.

14

1337996C1

CYLINDER

- master (Center), see page 8-28 for seal kit

1шт.

15

1337009C1

CYLINDER ASSY.

CYLINDER - double-acting, (R/H), see page 8-28 for seal kit

1шт.

16

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

- single-acting, (L/H), see page 8-28 for seal kit

1шт.

17

1337007C1

CHANNEL

- cylinder mounting

2шт.

f

599584R1

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 1-1/2 inch

2шт.

g

NLS

NO LONGER SERVICED

- flat, 21/32 inch I.D.

2шт.

h

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

j

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

k

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

CAPSCREW - hex head, 5/8 NC x 2-1/2 inch, thread full length

2шт.

l

124847

COLLAR

- jam, 5/8 inch NC

2шт.

18

1337016C1

PIN

- master cylinder, upper

1шт.

19

1337015C1

PIN

- master cylinder, lower

1шт.

20

1337006C1

PIN

- cylinder, lower

2шт.

21

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 dia. x 1-7/8 inch

2шт.

23

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

6шт.

24

1336903C1

COUPLING

COUPLER - female, quick disconnct, 1/4 NPT

1шт.

25

1336904C1

PLUG

- dust

1шт.

26

1284366C1

HYDRAULIC HOSE

HOSE ASSEMBLY - to master cylinder

1шт.

26

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - 3/8 inch

1шт.

27

1251872C2

HYDRAULIC HOSE

HOSE ASSEMBLY- reel lift cylinder

4шт.

27

852175C1

REDUCER

UNION - reducer

4шт.

28

1337011C1

TUBE,9.53 mm OD

ASSEMBLY - from master cylinder

1шт.

29

1337008C1

TUBE,9.53 mm OD

ASSEMBLY - R/H cylinder to L/H cylinder

2шт.

30

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 9/16 o-ring x 3/8 inch 37 degrees JIC tube

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

31

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 3/8 inch 37 degrees JIC tube

1шт.

32

1337012C1

GROMMET

- tube

1шт.

33

1336923C1

VALVE

ASSEMBLY - 4-way, see page 8-28 for seal kit

1шт.

m

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

3шт.

n

26110R1

LOCK NUT,1/4"-20, GC

NUT - lock, 1/4 inch NC distorted thread

3шт.

r

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 inch I.D.

3шт.

34

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

- run, adjustable ORB, 5/8 inch 37 degrees JIC tube

2шт.

35

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degrees, adjustable ORB, 5/8 inch 37 degrees JIC tube

2шт.

36

REF

INSTRUCTION

MOTOR - hydraulic, draper drive, see page 8-24 ref. 1

3шт.

37

1336843C1

SET SCREW,Hex Skt, 5/16" - 18 x 9.53mm

- set

6шт.

38

1336918C1

ARM

- torque

3шт.

t

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 inch NC x 1 inch

3шт.

u

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

3шт.

39

9402983

TEE,7/8"-14, 37 Degree

- union, 5/8 inch 37 degrees JIC tube

3шт.

40

444138

TEE,1/2"-12 NPTF Fem Run x 1/2"-14 NPTF Male Br

- pipe, 1/2 NPT female x 1/2 NPT male

2шт.

41

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

- 90 degrees male, 1/2 NPT x 5/8 inch 37 degrees JIC tube

1шт.

42

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male ORB 1/2 x 5/8 inch 37 degrees JIC tube

6шт.

43

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR - male 1/2 NPT x 5/8 inch 37 degrees JIC tube

2шт.

44

443983

PIPE

NIPPLE - hex pipe

2шт.

45

1336930C1

VALVE

- shuttle

1шт.

46

1336934C1

VALVE

- check

2шт.

47

364890R91

CONNECTION

UNION - swivel adapter 1/2 NPT female x 1/2 NPT male

1шт.

48

1336545C1

COUPLING

COUPLER - male, quick disconnect, 1/2 NPT

2шт.

49

1336542C1

COUPLING

COUPLER - female, quick disconnect, 1/2 NPT

2шт.

50

9402979

TEE,7/16"-20, 37 Degree

- union, 1/4 inch 37 degrees JIC tube

2шт.

51

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degrees swivel, 5/8 inch 37 degrees JIC tube

1шт.

52

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degrees male, 5/8 inch 37 degrees JIC tube

2шт.

53

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 5/8 inch 37 degrees JIC tube

1шт.

54

9410307

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel outlet, 1/2 inch 37 degrees JIC tube

1шт.

55

9403401

REDUCER - 5/8 x 1/4 inch 37 degrees JIC tube

1шт.

56

REF

INSTRUCTION

MOTOR - hydraulic, reel drive, see page 8-26 ref. 1

1шт.

57

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Reel Drive Pressure 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

57

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

58

196584C2

HYDRAULIC HOSE

HOSE ASSEMBLY - reel drive return

1шт.

58

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

58

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

59

90878C1

HYDRAULIC HOSE

HOSE ASSEMBLY -, Serial Range: return-tractor

1шт.

59

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

59

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

60

1336937C1

HOSE

ASSEMBLY - R/H draper motor case drain

1шт.

61

1336939C1

TUBE,6.35 mm OD

ASSEMBLY - L/H draper motor case drain

1шт.

62

1336938C1

TUBE,6.35 mm OD

ASSEMBLY - R/H draper motor case drain

1шт.

63

1336936C1

TUBE,6.35 mm OD

ASSEMBLY - short deck draper motor case drain

1шт.

64

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Short Deck Motor 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

64

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

64

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees swivel, 1/2 inch

1шт.

65

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Short Deck Motor 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

65

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

65

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

66

196584C2

HYDRAULIC HOSE

HOSE ASSEMBLY, Serial Range: --tractor

1шт.

66

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

66

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

67

1337000C1

HOSE ASSY.

HOSE ASSEMBLY - L/H draper motor case drain

1шт.

67

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - 3/8 inch tube

1шт.

67

154606C1

UNION

- reducer

1шт.

68

1336917C1

HOSE

ASSEMBLY - L/H and R/H draper motor

4шт.

69

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSEMBLY - R/H shift cylinder

1шт.

69

852175C1

REDUCER

UNION - reducer

1шт.

70

1251872C2

HYDRAULIC HOSE

HOSE ASSEMBLY - L/H shift cylinder

1шт.

70

852175C1

REDUCER

UNION - reducer

1шт.

71

147888C1

HOSE ASSY.

HOSE ASSEMBLY- L/H and R/H shift cylinder

2шт.

71

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 3/8 inch tube

1шт.

71

852175C1

REDUCER

UNION - reducer

1шт.

72

1336924C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 4-way valve

1шт.

72

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

73

1336925C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 4-way valve

1шт.

73

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

2шт.

74

1336935C1

HOSE

ASSEMBLY - short deck motor

1шт.

75

1264580C1

HYDRAULIC HOSE,6.40 mm ID x 685.00 mm

HOSE ASSEMBLY - short deck motor case drain

1шт.

76

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

to Tractor 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

77

1336927C1

TUBE,15.88 mm OD

ASSEMBLY - center

1шт.

78

1336926C1

TUBE,15.88 mm OD

ASSEMBLY - center

1шт.

79

1336931C1

TUBE,15.88 mm OD

ASSEMBLY - motor to shuttle

1шт.

80

1336932C1

TUBE,15.88 mm OD

ASSEMBLY - motor to shuttle

1шт.

81

1336915C1

TUBE,15.88 mm OD

ASSEMBLY - valve to motor

1шт.

82

1336916C1

TUBE,15.88 mm OD

ASSEMBLY - valve to motor

1шт.

83

1336911C1

TUBE,9.53 mm OD

ASSEMBLY - shift cylinder

2шт.

84

1336928C1

TUBE,15..88 mm OD

ASSEMBLY - shuttle

1шт.

85

1336929C1

TUBE,15.88 mm OD

ASSEMBLY - shuttle

1шт.

86

1337001C1

TUBE,6.35 mm OD

ASSEMBLY - case drain

1шт.

87

1336933C1

CLAMP

- tube

1шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

p

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

CAPSCREW - hex head, 3/8 NC x 2-1/2 inch

2шт.

88

1337003C1

COVER

CHANNEL - hose

1шт.

s

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

CAPSCREW - hex head, 3/8 NC x 2-3/4 inch

1шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

2шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

89

1336919C1

CLAMP

- protector

13шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

13шт.

d

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

13шт.

q

120377

NUT,3/8" - 16, Gr 5

11шт.

91

1960371C1

CLAMP

- hose

1шт.

e

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

92

REF

INSTRUCTION

SHIELD - hydraulic lines, see 36' Main Frame & Shields

1шт.

94

1337010C1

KIT

PROTECTOR - tube

1шт.

95

1336857C1

HOSE

PROTECTOR - 1/4 inch tube

10шт.

96

1336920C1

HOSE

PROTECTOR - 1/2 inch tube

5шт.

97

1336921C1

HOSE

PROTECTOR - 5/8 inch tube

40шт.

98

1336064C1

CABLE TIE

TIE - cable

14шт.

99

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP - gear type

2шт.

100

1337017C1

BRACKET

- shift cylinder

2шт.

101

1337021C1

SHIM KIT

- for tractor control valve

1шт.

102

1337022C1

RETAINER

- cylinder, plastic

1шт.

103

1336157C1

INSULATOR

SHIELD - cylinder, L/H

1шт.

104

1336158C1

INSULATOR

SHIELD - cylinder, R/H

1шт.

105

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - tube, 5/8

1шт.
