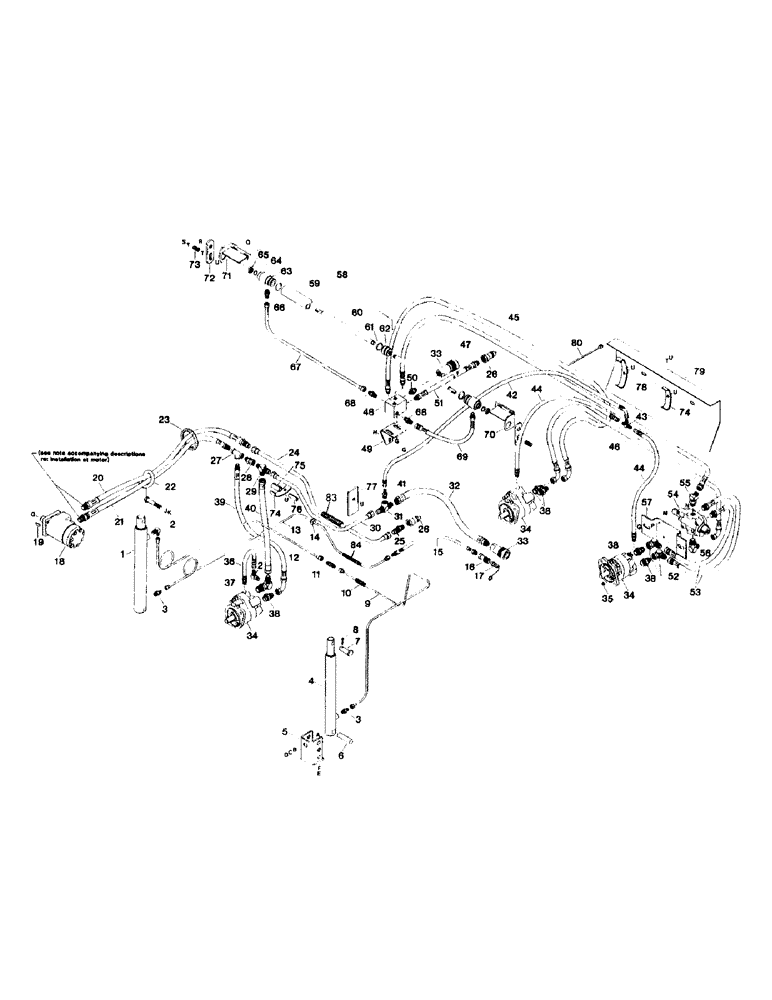

Запчасти Case IH 6500 (8-08) - HYDRAULICS, FIXED OPENING, 21, 25 AND 30 FOOT HEADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - master, reel lift, see page 8-28

1шт.

2

346737R1

ELBOW,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degrees male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

2шт.

3

317783R1

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

2шт.

4

REF

INSTRUCTION

CYLINDER - slave, reel lift, see page 8-28

1шт.

5

1336870C1

BRACKET

- cylinder

2шт.

a

467657R1

BOLT,Short NK, 5/8"-11 x 1 1/2", G5, Full Thd

- round head square neck, 5/8 NC x 1-1/2 inch

2шт.

b

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21/32 inch I.D.

2шт.

c

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

d

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

e

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

CAPSCREW - hex head, 5/8 NC x 2-1/2 inch thread full length

2шт.

f

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8 inch NC

2шт.

6

1336871C1

PIN

- cylinder, bottom

2шт.

7

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 dia. x 1-7/8 inch

2шт.

8

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

9

1336907C1

TUBE

ASSEMBLY - to slave cylinder

1шт.

10

1336912C1

HOSE

PROTECTOR - tube, 21' header

1шт.

10

1336913C1

HOSE

PROTECTOR - tube, 25' header

1шт.

10

1336914C1

HOSE

PROTECTOR - tube, 30' header

1шт.

11

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- 1/4 inch 37 degrees JIC tube

1шт.

12

1336875C1

TUBE

ASSEMBLY - from master cylinder, 21' header

1шт.

12

1336876C1

TUBE

ASSEMBLY - from master cylinder, 25' header

1шт.

12

1336877C1

TUBE

ASSEMBLY - from master cylinder, 30' header

1шт.

13

1336878C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 21' header

1шт.

13

1336879C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 25' header

1шт.

13

1336900C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 30' header

1шт.

14

1336065C1

GROMMET

- tube

1шт.

15

810604C1

HYDRAULIC HOSE

HOSE ASSEMBLY - reel lift

1шт.

16

1336903C1

COUPLING

COUPLER - female, quick disconnect, 1/4 NPT

1шт.

17

1336904C1

PLUG

- dust

1шт.

18

REF

INSTRUCTION

MOTOR - hydraulic, reel drive, see page 8-26 ref. 1 (Includes item 19)

1шт.

g

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Reel Drive Pressure 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

21

195869C2

HYDRAULIC HOSE

HOSE ASSEMBLY - reel drive return

1шт.

22

1336861C1

GUIDE

LOOP - hose

1шт.

j

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

k

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

1336860C1

HOSE

GROMMET - slit hose

1шт.

24

1336851C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 21' header

1шт.

1336852C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 25' header

1шт.

1336853C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 30' header

1шт.

25

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - male, 1/2 inch 37 degrees JIC tube x 1/2 NPT

1шт.

26

1336545C1

COUPLING

COUPLER - male, quick disconnect, 1/2 NPT

2шт.

27

120280

TEE,3/8" NPT, Fem

- straight, 3/8 inch NPT

1шт.

28

1336850C1

ADAPTER

UNION - swivel adapter, 3/8 NPT male x 3/8 NPT female. 1/16 inch dia. orifice

1шт.

29

9403099

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

- male, 3/8 NPT x 1/2 inch 37 degrees JIC tube

1шт.

30

1336847C1

TUBE,12.78 mm OD

ASSEMBLY - reel drive return, 21' header

1шт.

30

1336848C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive return, 25' header

1шт.

30

1336849C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive return, 30' header

1шт.

31

9403060

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- 1/2 inch 37 degrees JIC tube x 1/2 inch 37 degrees JIC tube male x 3/8 inch NPT female

1шт.

32

90875C1

HYDRAULIC HOSE

HOSE ASSEMBLY - reel drive, Serial Range: return-tractor

1шт.

33

1336542C1

COUPLING

COUPLER - female, quick disconnect, 1/2 NPT

2шт.

34

REF

INSTRUCTION

MOTOR - hydraulic, draper drive, see page 8-24 ref. 1

3шт.

35

1336843C1

SET SCREW,Hex Skt, 5/16" - 18 x 9.53mm

- set

6шт.

36

1336863C1

HOSE

ASSEMBLY - case drain, short neck motor

1шт.

37

1336862C1

ELBOW

- tapped

1шт.

38

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, 1/2 inch 37 degrees JIC tube x 7/8 o-ring

5шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

5шт.

39

91199C1

HOSE ASSY.

HOSE ASSEMBLY - short deck motor pressure

1шт.

40

91191C1

HOSE

ASSEMBLY - short deck motor return

1шт.

41

1336846C1

CONNECTOR, ELEC

CONNECTOR - male, 3/8 NPT x 1/4 inch 37 degrees JIC tube

1шт.

42

1336845C1

HOSE

ASSEMBLY - draper motor case drain

1шт.

43

9402979

TEE,7/16"-20, 37 Degree

- straight, 1/4 inch 37 degrees JIC tube

1шт.

44

1336844C1

HOSE

ASSEMBLY - draper motor case drain

2шт.

45

1336716C1

HOSE

ASSEMBLY - R/H/ draper motor to junction block

1шт.

46

1336719C1

HOSE

ASSEMBLY - R/H draper motor to 4-way valve

1шт.

47

1284368C1

HYDRAULIC HOSE

HOSE ASSEMBLY - junction block to 4-way valve

1шт.

47

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

47

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer

1шт.

47

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - 1/2 inch tube

1шт.

48

1336712C1

BLOCK

- junction

1шт.

49

1336713C1

ANGLE

- mounting

1шт.

g

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

h

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

2шт.

50

443992

REDUCER,1/2"-14 NPTF x 3/8"-18 NPTF

NIPPLE - hex pipe, 3/8 NPT x 1/2 NPT

1шт.

51

195504C2

HYDRAULIC HOSE

HOSE ASSEMBLY - junction block to tractor 4-way valve

1шт.

51

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 3/8 inch

1шт.

51

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR - 3/8 to 3/8 inch

1шт.

52

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

-90 degrees swivel, 1/2 inch 37 degrees JIC tube, male x female

2шт.

53

1336840C1

HYDRAULIC HOSE

HOSE ASSEMBLY - L/H draper motor to 4-way valve

2шт.

54

1960369C1

VALVE

4-WAY ASSEMBLY

1шт.

1336567C1

KIT

SEAL KIT - repair, for valve 1960369C1

1шт.

n

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

p

26110R1

LOCK NUT,1/4"-20, GC

NUT - lock, 1/4 inch NC distorted thread

3шт.

55

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degrees male, 3/4 o-ring x 1/2 inch 37 degrees JIC tube

1шт.

55

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

56

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degrees male, 3/4 o-ring x 1/2 inch 37 degrees JIC tube

1шт.

56

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

57

1336717C1

PLATE

- valve mounting

1шт.

m

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- serrated flange lock, 1/2 inch NC

2шт.

q

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

2шт.

58

1336702C1

CYLINDER

ASSEMBLY - deck shift, 21' header

1шт.

58

1336703C1

CYLINDER

ASSEMBLY - deck shift, 25' header

1шт.

58

1336704C1

CYLINDER

ASSEMBLY - deck shift, 30' header (Assembly includes items 59-66 inclusive)

1шт.

59

1336693C1

ROD

BARREL - cylinder, 21' header

1шт.

59

1336694C1

ROD

BARREL - cylinder, 25' header

1шт.

59

1336695C1

ROD

BARREL - cylinder, 30' header

1шт.

60

1336696C1

ROD

- cylinder, 21' header

2шт.

60

1336697C1

ROD

- cylinder, 25' header

2шт.

60

1336698C1

ROD

- cylinder, 30' header

2шт.

61

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- piston

3шт.

62

1336699C1

PISTON

- cylinder

1шт.

63

1336700C2

PLUG

- cylinder

2шт.

64

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- plug

2шт.

65

1336701C1

WIPER SEAL

- wiper

2шт.

66

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 3/8 o-ring x 3/8 inch 37 degrees JIC tube

1шт.

66

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

67

1336709C1

TUBE,9.56" OD, 708, 90 mm Length

ASSEMBLY - shift cylinder to junction block, 21' header

1шт.

67

1336710C1

TUBE,9.59 mm OD, 840, 90 mm Length

ASSEMBLY - shift cylinder to junction block, 25' header

1шт.

67

1336711C1

TUBE,9.59 mm OD, 1055, 90 mm Length

ASSEMBLY - shift cylinder to junction block, 30' header

1шт.

68

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR - male, 3/8 NPT x 3/8 inch 37 degrees JIC tube

2шт.

69

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

Shift Cylinder to Junction Block, 21' Header 6.35 mm ID x 482.60 mm, SAE 100 R1

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/8 inch

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch tube

1шт.

69

1336714C1

HYDRAULIC HOSE

HOSE ASSEMBLY - shift cylinder to junction block, 25' header

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch tube

1шт.

69

1336715C1

HOSE ASSY.

HOSE ASSEMBLY - shift cylinder to junction block, 30' header

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch tube

1шт.

70

1336705C1

BRACKET

- cylinder, L/H

1шт.

71

1336706C1

BRACKET

- cylinder, R/H

1шт.

q

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

4шт.

72

1336707C1

ANCHOR

- cylinder rod

2шт.

r

23260R1

NUT,1/2"-13, GB

- lock, 1/2 inch NC, nylon insert

2шт.

73

1336708C1

SPRING

- anchor

2шт.

s

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

t

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

4шт.

u

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC, distorted thread

2шт.

74

1336855C1

CLAMP

- short, (6 required for 30' header)

5шт.

u

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch, NC, distorted threaded (6 req'd for 30')

5шт.

75

1336856C1

HOSE

PROTECTOR - large (12 required for 30' header)

9шт.

76

1336857C1

HOSE

PROTECTOR - small (4 required for 30' header)

3шт.

77

1336854C1

PAD

- rubber

1шт.

78

1960371C1

CLAMP

- long

1шт.

u

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC, distorted thread

1шт.

79

1336906C1

SHIELD

- hydraulic lines

1шт.

t

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

4шт.

u

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC, distorted thread

2шт.

80

1336064C1

CABLE TIE

TIE - cable

13шт.

83

1336858C1

HOSE

PROTECTOR - large tube, 25' header

2шт.

83

1336859C1

HOSE

PROTECTOR - large tube, 30' header

2шт.

84

1336901C1

HOSE

PROTECTOR - small tube, 25' header

1шт.

84

1336902C1

PROTECTOR - small tube, 30' header

1шт.
