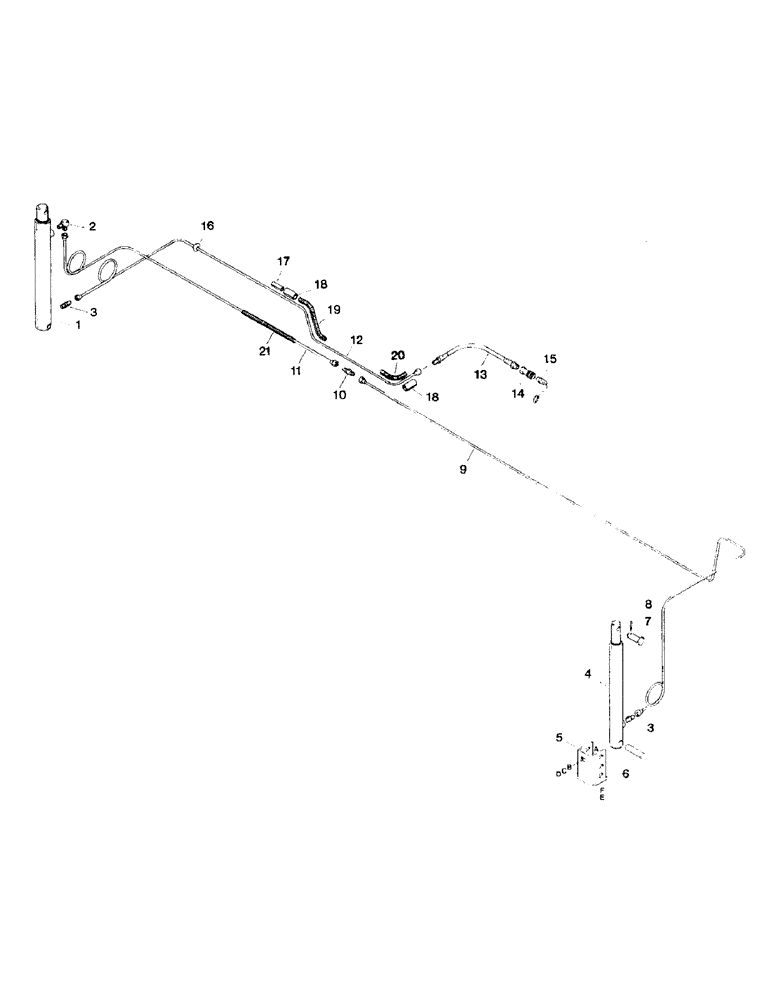

Запчасти Case IH 6500 (8-06) - REEL LIFT HYDRAULICS, ADJUSTABLE OPENING, 21, 25 AND 30 FOOT HEADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - master, reel lift, see page 8-28

1шт.

2

346737R1

ELBOW,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degrees male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

1шт.

3

317783R1

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

2шт.

4

REF

INSTRUCTION

CYLINDER - slave, reel lift, see page 8-28

1шт.

5

1336870C1

BRACKET

- cylinder

2шт.

a

599584R1

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 1-1/2 inch

2шт.

b

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- flat, 21-32 inch I.D.

2шт.

c

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

d

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

e

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

CAPSCREW - hex head, 5/8 NC x 2-1/2 inch thread full length

2шт.

f

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8 inch NC

2шт.

6

1336871C1

PIN

- cylinder, bottom

2шт.

7

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 dia. x 1-7/8 inch

2шт.

8

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

9

1336907C1

TUBE

ASSEMBLY - to slave cylinder

1шт.

10

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- 1/4 inch 37 degrees JIC tube

1шт.

11

1336875C1

TUBE

ASSEMBLY - from master cylinder, 21' header

1шт.

11

1336876C1

TUBE

ASSEMBLY - from master cylinder, 25' header

1шт.

11

1336877C1

TUBE

ASSEMBLY - from master cylinder, 30' header

1шт.

12

1960372C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 21' header

1шт.

12

1960373C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 25' header

1шт.

12

1960374C1

TUBE,6.35 mm OD

ASSEMBLY - to master cylinder, 30' header

1шт.

13

810604C1

HYDRAULIC HOSE

HOSE ASSEMBLY - reel lift

1шт.

14

1336903C1

COUPLING

COUPLER - female, quick disconnect, 1/4 NPT

1шт.

15

1336904C1

PLUG

- dust

1шт.

16

1336065C1

GROMMET

- tube

1шт.

17

1336857C1

HOSE

- protective (1 req'd for 30' header)

2шт.

18

1336856C1

HOSE

- protective

3шт.

19

1336901C1

HOSE

- protective (30' header only)

1шт.

20

1336426C1

GROMMET

HOSE - protective

1шт.

21

1336912C1

HOSE

- protective, 21' header

1шт.

21

1336913C1

HOSE

- protective, 25' header

1шт.

21

1336914C1

HOSE

- protective, 30' header

1шт.
