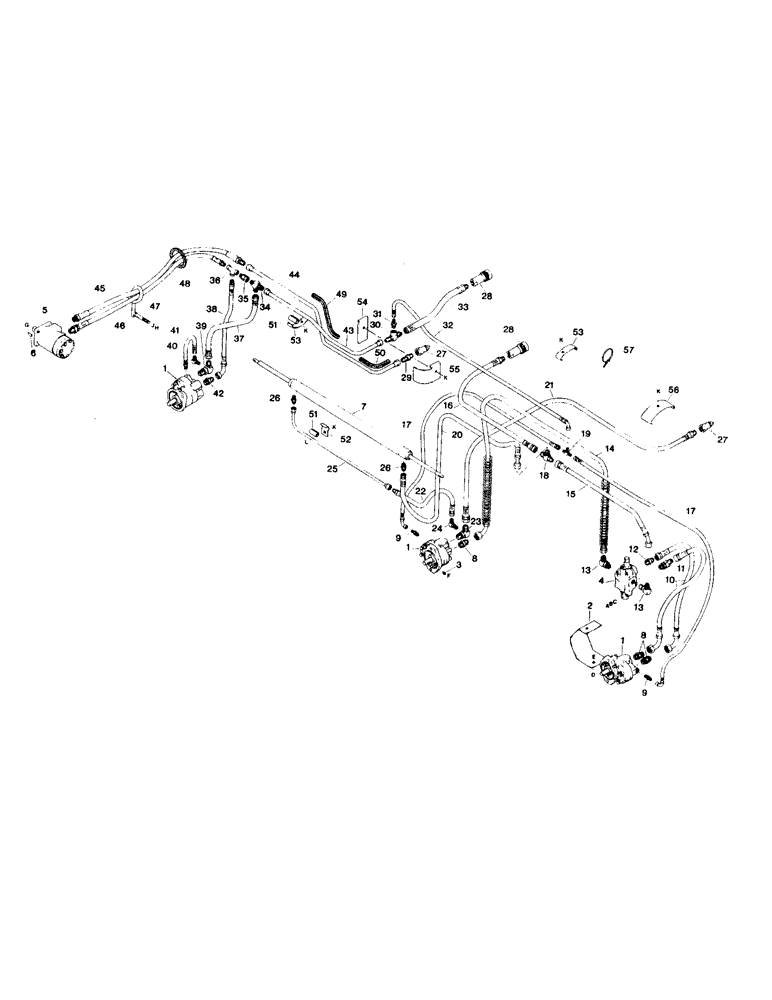

Запчасти Case IH 6500 (8-02) - DRAPER DRIVE, REEL DRIVE AND DECK SHIFT HYDRAULICS, ADJUSTABLE OPENING 21, 25 AND 30 FOOT HEADERS (08) - HYDRAULICS

1

REF

INSTRUCTION

MOTOR - hydraulic, draper drive, see page 8-24 ref. 1

3шт.

2

1960357C1

SHIELD

- left draper motor

1шт.

2

1960358C1

SHIELD

- right draper motor

1шт.

d

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

e

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

3

1336843C1

SET SCREW,Hex Skt, 5/16" - 18 x 9.53mm

- set

6шт.

f

425-145

JAM NUT,Jam, 5/16"-18, G5

6шт.

Ref F : The 5/16" jam nut is part # 425-145

1шт.

4

1960369C1

VALVE

- control, 4 way

1шт.

1336567C1

KIT

SEAL KIT - repair, for valve 1960369C1

1шт.

a

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

3шт.

b

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

c

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 inch I.D.

3шт.

5

REF

INSTRUCTION

MOTOR - hydraulic, reel drive, see page 8-26 ref. 1 (Includes item 6)

1шт.

g

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

4шт.

6

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

REF

INSTRUCTION

CYLINDER - deck shift, see page 8-30 ref. 1

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, 5/8 inch 37 degrees JIC tube x 7/8 o-ring

3шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

3шт.

9

317783R1

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

2шт.

10

1960388C1

HOSE ASSY.

HOSE ASSEMBLY - L/H draper motor to 4-way valve

2шт.

11

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 45 degrees male, 1/2 inch 37 degrees JIC tube x 3/4 o-ring

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, 1/2 inch 37 degrees JIC tube x 3/4 o-ring

1шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degrees male, 1/2 inch 37 degrees JIC tube x 3/4 o-ring

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

2шт.

14

1960382C1

HOSE

ASSEMBLY - with protective spring, valve to R/H draper motor

1шт.

15

1960389C1

HOSE

ASSEMBLY -, Serial Range: valve-tee

1шт.

16

1960386C1

HYDRAULIC HOSE

HOSE ASSEMBLY -, Serial Range: tee-coupler

1шт.

17

1960387C1

HOSE

ASSEMBLY - case drain

2шт.

18

9402982

TEE,3/4"-16, 37 Degree

- union, 1/2 inch 37 JIC tube

1шт.

19

9402979

TEE,7/16"-20, 37 Degree

- union, 1/4 inch 37 degrees JIC tube

1шт.

20

1960385C1

HOSE

ASSEMBLY -, Serial Range: tee-cylinder

1шт.

21

196584C2

HYDRAULIC HOSE

HOSE ASSEMBLY -, Serial Range: motor-coupler

1шт.

21

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - 1/2 to 1/2 inch

1шт.

21

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

22

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

HOSE ASSEMBLY -, Serial Range: cylinder-motor

1шт.

22

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 3/8 inch tube

1шт.

23

1960398C1

ELBOW

- tapped (9/16 o-ring), 5/8 inch 37 degrees JIC tube x 7/8 o-ring

1шт.

23

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degrees male, 3/8 inch 37 degrees JIC tube x 9/16 o-ring

1шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

25

1960381C1

TUBE,9.53 mm OD

ASSEMBLY - cylinder line

1шт.

26

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - male, 3/8 inch 37 degrees JIC tube x 9/16 o-ring

2шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

2шт.

27

1336545C1

COUPLING

COUPLER - male, quick disconnect, 1/2 NPT

2шт.

28

1336542C1

COUPLING

COUPLER - female, quick disconnect, 1/2 NPT

2шт.

29

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR - male, 1/2 inch 37 degrees JIC tube x 1/2 inch NPT

1шт.

30

9403060

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- 1/2 inch 37 degrees JIC tube x 1/2 inch 37 degrees JIC tube male x 3/8 inch NPT female

1шт.

31

1336846C1

CONNECTOR, ELEC

CONNECTOR - male, 1/4 inch 37 degrees JIC tube x 3/8 inch NPT

1шт.

32

1336845C1

HOSE

ASSEMBLY - draper motor case drain

1шт.

33

90875C1

HYDRAULIC HOSE

HOSE ASSEMBLY - reel drive, Serial Range: return-tractor

1шт.

34

9403099

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

- male run, 3/8 NPT to 1/2 inch 37 degrees JIC tube

1шт.

35

1336850C1

ADAPTER

UNION - swivel adapter (1/16 inch dia. orifice) 3/8 NPT male x 3/8 NPSM female

1шт.

36

120280

TEE,3/8" NPT, Fem

- straight, 3/8 inch NPT

1шт.

37

91191C1

HOSE

ASSEMBLY - short deck draper motor, return

1шт.

38

91199C1

HOSE ASSY.

HOSE ASSEMBLY - short deck draper motor, pressure

1шт.

39

1336862C1

ELBOW

- tapped (1/4 NPT) 1/2 inch 37 degrees JIC tube x 7/8 o-ring

1шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

40

346737R1

ELBOW,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degrees male, 1/4 inch 37 degrees JIC tube x 1/4 inch NPT

1шт.

41

1336863C1

HOSE

ASSEMBLY - case drain, short deck draper motor

1шт.

42

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, 1/2 inch 37 degrees JIC tube x 7/8 o-ring

1шт.

42

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

43

1960375C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive return, 21' header

1шт.

43

1960376C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive return, 25' header

1шт.

43

1960377C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive return, 30' header

1шт.

44

1960378C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 21' header

1шт.

44

1960379C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 25' header

1шт.

44

1960380C1

TUBE,12.7 mm OD

ASSEMBLY - reel drive pressure, 30' header

1шт.

45

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Reel Drive Pressure 12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

46

195869C2

HYDRAULIC HOSE

HOSE ASSSEMBLY - reel drive return

1шт.

47

1336861C1

GUIDE

LOOP - hose

1шт.

h

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

j

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

48

1336860C1

HOSE

GROMMET - slit hose

1шт.

49

1336858C1

HOSE

- protective, 30' header only

2шт.

50

1960342C1

HOSE

- protective

2шт.

51

1336856C1

HOSE

- protective (3 required for 30' header)

5шт.

52

1969053C1

CLIP

- hose

2шт.

k

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

l

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

53

1336855C1

CLAMP

- hose

3шт.

54

1336854C1

PAD

- rubber

1шт.

55

1960370C1

PLATE

CLAMP - hose

1шт.

k

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

56

1960371C1

CLAMP

- hose

2шт.

k

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

57

1336064C1

CABLE TIE

TIE - plastic

7шт.
