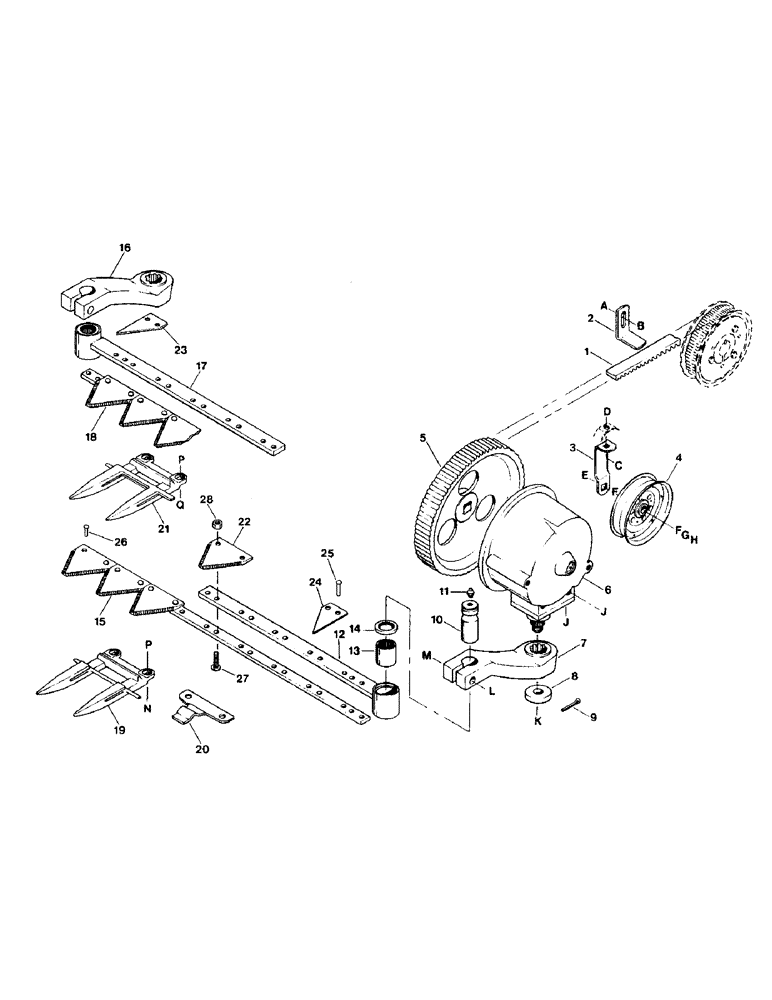

Запчасти Case IH 6500 (9-24) - KNIFE AND DRIVE GROUP, 36 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

1336671C1

BELT

Timing, Knife Drive

2шт.

2

1336676C1

ANGLE

SUPPORT - belt

4шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

b

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 NC prevailing torque

4шт.

3

1336678C1

SUPPORT

BAR - idler

2шт.

c

1336677C1

BOLT

- round head square neck, 3/8 NC x 2-1/4 inch, thread full length

2шт.

d

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

2шт.

4

219617C1

PULLEY

IDLER - flat

2шт.

e

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - round head square neck, 5/8 NC x 2 inch

2шт.

f

NLS

NO LONGER SERVICED

- flat, 21/32 inch I.D.

4шт.

g

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

h

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

5

1336672C1

SPROCKET ASSY.

SPROCKET - driven

2шт.

6

REF

INSTRUCTION

WOBBLE BOX - complete, see page 9-26

2шт.

j

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CAPSCREW - hex head, 5/8 NC x 2 inch, grade 8

8шт.

7

1336648C1

ARM

- drive, L/H

1шт.

8

1336649C1

WASHER

- flat

2шт.

k

272333

SEAL,3/4"-10, G5, Thk

- slotted hex, 3/4 inch NC

2шт.

9

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

10

1336650C1

PIN

- knife head

2шт.

l

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

CAPSCREW - hex head, 5/8 NC x 3 inch

2шт.

m

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

12

1336679C1

HEAD

ASSEMBLY - L/H, knife (Includes items 13 and 14)

1шт.

13

1336681C1

BEARING, NEEDLE

BEARING - needle

2шт.

14

324103R91

OIL SEAL

SEAL - bearing

2шт.

14

252050R91

SEAL

-, Serial Range: alternate-324103R91

1шт.

15

1337027C1

KNIFE

ASSEMBLY - L/H, less head

1шт.

16

1336675C1

ARM

- drive, R/H

1шт.

17

1336680C1

HEAD

ASSEMBLY - R/H, knife (Includes 13 and 14)

1шт.

18

1337028C1

KNIFE

ASSEMBLY - R/H, less head

1шт.

19

483500R3

GUARD

- (First 3 guards at each end)

6шт.

REF: #19 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

19

613838R2

GUARD

- knife

65шт.

REF: #19A - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

n

489243R1

BOLT,7/16"-14 x 1 1/4", G8

- plow, 7/16 NC x 1-1/4 inch (Thru guard only)

64шт.

n

489245R1

BOLT (SPREADER),7/16"-14 x 1 1/2", G8

BOLT - plow, 7/16 NC x 1-1/2 (Thru guard and clip)

78шт.

p

271501

SOCKET

NUT - hex, 7/16 inch NC

142шт.

20

613842R2

GUIDE

CLIP - hold down

35шт.

21

1960444C1

GUARD

- center

1шт.

p

NLS

NO LONGER SERVICED

NUT - hex, 7/16 inch NC

2шт.

q

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

- round head, square neck, 7/16 NC x 1-1/2 inch

2шт.

22

596321R3

KNIFE SECTION

SECTION - knife, over serrated

143шт.

23

1337029C1

CUTTER BAR

SECTION - half, R/H

1шт.

24

825277C1

KNIFE SECTION

SECTION - half, L/H

1шт.

25

14771R1

BOLT (SPREADER)

RIVET - round head, .208 dia. x 1 inch

22шт.

26

28611R1

RIVET,Oval Hd, .203" x 5/8"

- round head, .208 dia. x 5/8 inch

268шт.

27

1954815C1

BOLT

- ribbed neck, #12 NC x 1 inch

22шт.

28

1954816C1

LOCK NUT

NUT - lock #12 NC

22шт.
