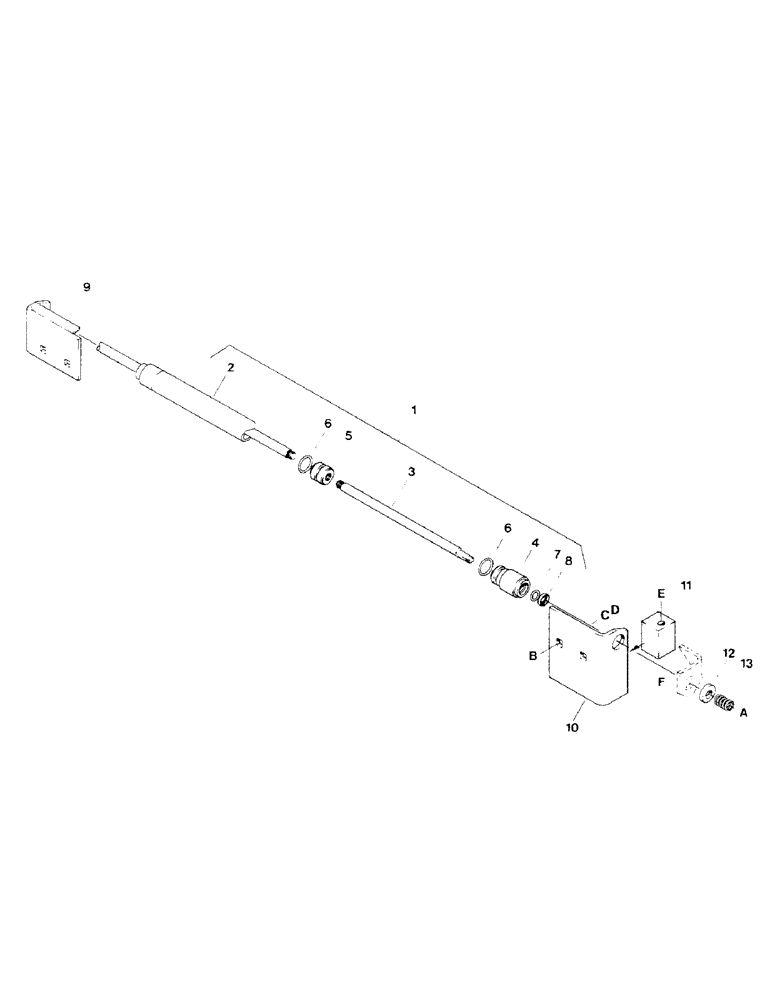

Запчасти Case IH 6500 (8-30) - DECK SHIFT CYLINDER, ADJUSTABLE OPENING, 21, 25 AND 30 FOOT (08) - HYDRAULICS

1

1336908C1

CYLINDER

ASSEMBLY - deck shift (Includes items 2-8)

1шт.

2

1336909C1

ROD

BARREL - cylinder

1шт.

3

1336910C1

ROD

- cylinder

2шт.

4

1336700C2

PLUG

- cylinder

2шт.

5

1336699C1

PISTON

- cylinder

1шт.

6

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 inch

3шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 x 3/4 inch

2шт.

8

1336701C1

WIPER SEAL

- wiper

2шт.

9

1960368C1

BRACKET

- cylinder, R/H

1шт.

10

1960367C1

BRACKET

- cylinder, L/H

1шт.

b

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

c

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

d

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

1960363C1

BLOCK

- rubber

1шт.

e

27453R1

BOLT,Short NK, 3/8"-16 x 3", G5

- round head square neck, 3/8 NC x 3 inch

1шт.

f

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

1шт.

12

1960365C1

WASHER

- flat

2шт.

13

1960366C1

SPRING

2шт.

a

23260R1

NUT,1/2"-13, GB

- lock, 1/2 inch NC, nylon insert

2шт.
