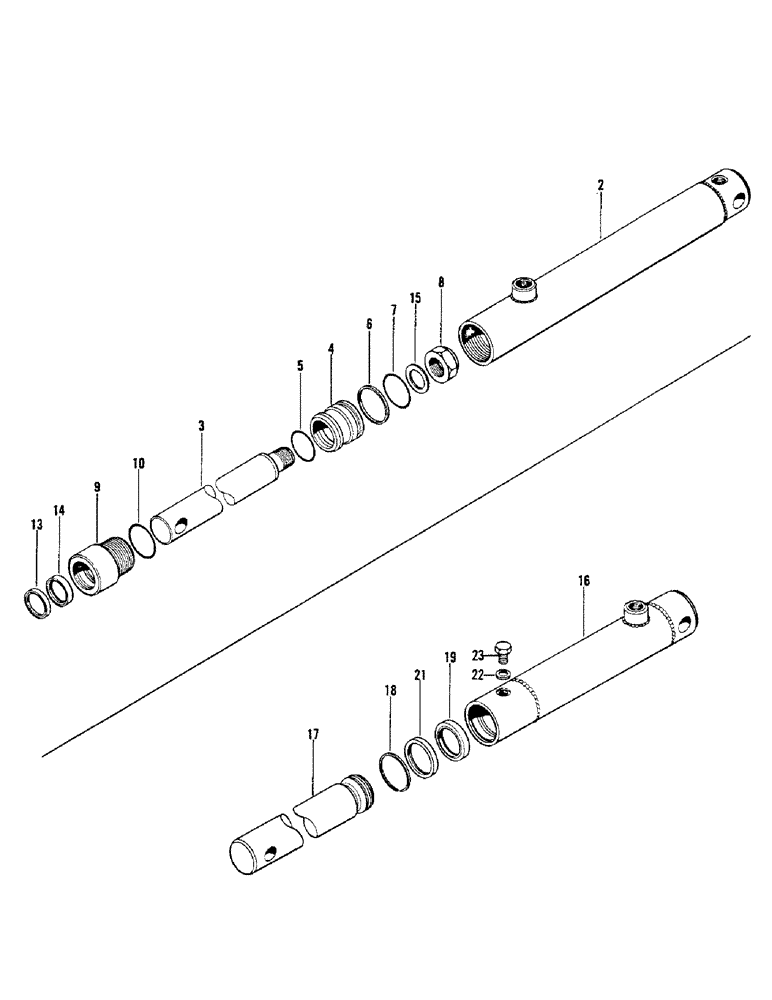

Запчасти Case IH 6500 (8-28) - HYDRAULIC CYLINDERS, 21, 25 AND 30 FOOT HEADERS (08) - HYDRAULICS

1336868C1

CYLINDER

ASSEMBLY - master

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL ASSEMBLY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1-1/8 I.D. x 1/16 inch thick

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

6

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 I.D. x 1/16 inch thick

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - hex, special, 3/4 inch NF

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-3/8 I.D. x 3/32 inch thick

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner, cylinder head

1шт.

Part of Master Cylinder Repair Seal Kit, P/N 823143C91

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

823143C91

SEAL KIT

KIT - repair, master cylinder, Includes: ref. nos. 5, 6, 7, 10, 13, 14

1шт.

1336869C1

CYLINDER

ASSEMBLY - slave

1шт.

16

NSS

NOT SOLD SEPARAT

BARREL ASSEMBLY

1шт.

17

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

18

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

Part of Slave Cylinder Repair Seal Kit, P/N 823144C91

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - inner, piston rod

1шт.

Part of Slave Cylinder Repair Seal Kit, P/N 823144C91

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

Part of Slave Cylinder Repair Seal Kit, P/N 823144C91

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

Part of Slave Cylinder Repair Seal Kit, P/N 823144C91

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - plug

1шт.

Part of Slave Cylinder Repair Seal Kit, P/N 823144C91

1шт.

823144C91

SEAL KIT

SEAL KIT - repair, slave cylinder, Includes: ref. nos. 18, 19, 21, 22, 23

1шт.

1336567C1

KIT

SEAL KIT - repair, for 4-way valve 1336923C1 SEAL KIT FOR 36 FOOT DRAPER HEADER

1шт.

1337997C1

KIT

SEAL KIT - repair, for master reel lift cylinder (Center) 1337996C1 SEAL KIT FOR 36 FOOT DRAPER HEADER

1шт.

823143C91

SEAL KIT

KIT - repair, for double-acting cylinder (R/H) 1337009C1 SEAL KIT FOR 36 FOOT DRAPER HEADER

1шт.

823144C91

SEAL KIT

SEAL KIT - repair, for single-acting cylnder (L/H) 1337004C1 SEAL KIT FOR 36 FOOT DRAPER HEADER

1шт.
