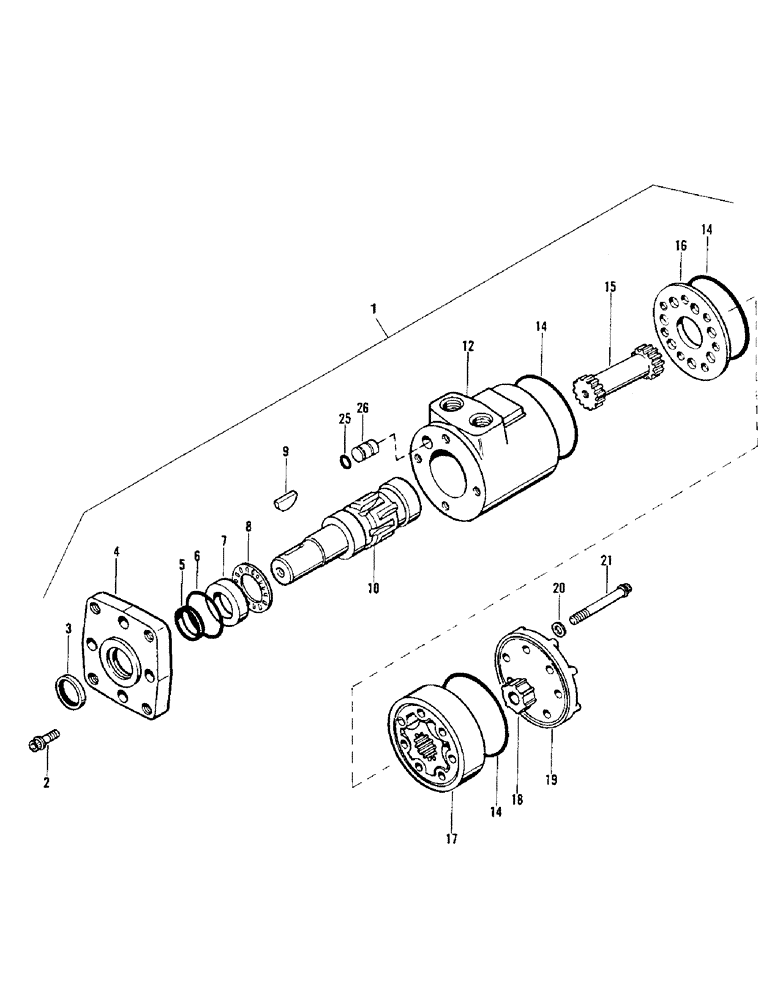

Запчасти Case IH 6500 (8-26) - HYDRAULIC MOTOR (08) - HYDRAULICS

1

1336864C1

MOTOR

ASSEMBLY - reel drive, manufacturer: Char-Lynn (Shown)

1шт.

1

1336866C1

MOTOR

ASSEMBLY - reel drive, manufacturer: Ross Gear (Not illustrated)

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - 12 pt. head, 5/16 NF x 7/8 inch

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL - dust, shaft end

1шт.

4

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - pressure, shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - oil, shaft end

1шт.

7

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE - bearing

1шт.

8

63780C91

THRUST BEARING

- needle

1шт.

9

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil

3шт.

15

NSS

NOT SOLD SEPARAT

DRIVE - shaft

1шт.

16

63791C1

PLATE

- wear

1шт.

17

NSS

NOT SOLD SEPARAT

GEROTOR SET - motor

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - drive

1шт.

19

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - sealing

7шт.

21

1413599R1

SCREW

- 12 point head cap

7шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 3/8 I.D. x 1/16 inch thick

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - housing

1шт.

1336865C1

SEAL PACKAGE

SEAL KIT - repair, Char-Lynn motor

1шт.

1336867C1

SEAL PACKAGE

SEAL KIT - repair, Ross Gear motor

1шт.
