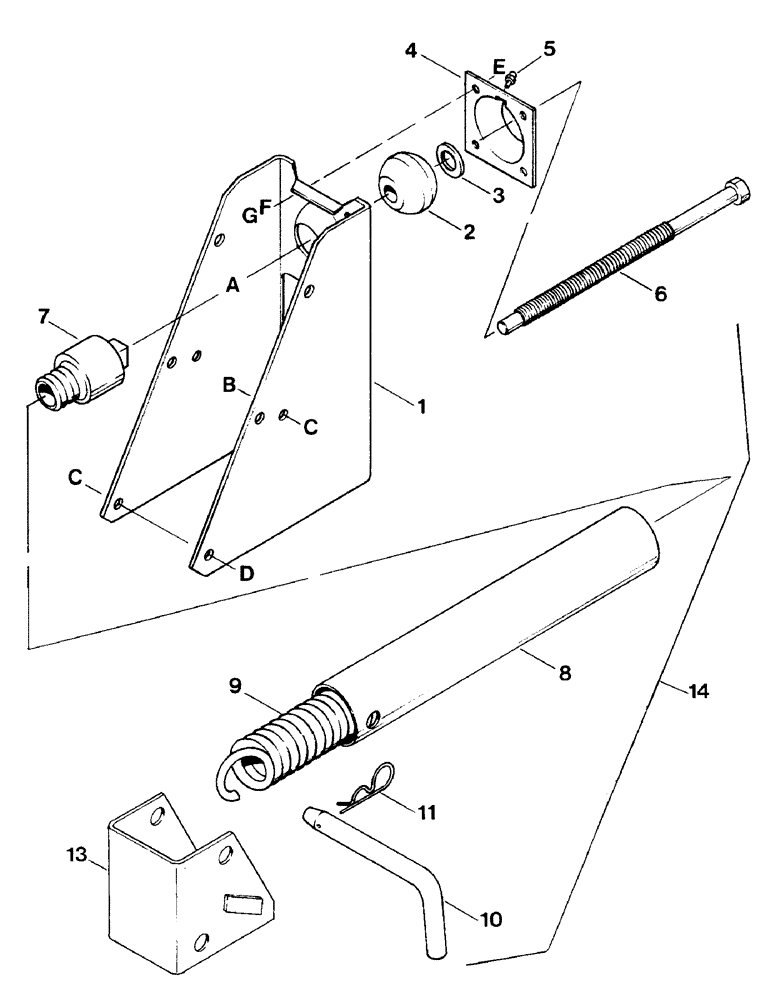

Запчасти Case IH 6000 (9-50) - AUXILIARY FLOAT SPRING, 30 AND 36 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1336252C1

ANCHOR

- float

2шт.

b

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

c

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

6шт.

d

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

CAPSCREW - hex head, 1/2 NC x 6 inch

2шт.

2

1336893C1

BALL

- pivot

2шт.

3

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- hardened

2шт.

4

1336894C1

FLANGE

- c/w grease fitting

2шт.

e

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

CAPSCREW - hex head, 5/16 NC x 3/4 inch

8шт.

f

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

g

120376

NUT,5/16"-18, G5

8шт.

5

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - lube

2шт.

6

1976274C1

BOLT

DRAWBOLT - spring

2шт.

a

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

7

1336255C1

PLUG

INSERT - spring

2шт.

8

1336256C1

PLASTIC-RUBBER TUBE

TUBE - plastic

2шт.

9

1336886C1

SPRING

- tension

2шт.

10

1954870C1

PIN

- securing

2шт.

11

591107R1

COTTER PIN

- hair

2шт.

13

1337804C1

ANCHOR

- (Not required for 36' header)

2шт.

14

1337805C1

KIT

auxiliary float spring, includes: Ref. 1-13 and A-G

1шт.

This kit is recommended when a pick-up reel is installed on 30' header.

1шт.
