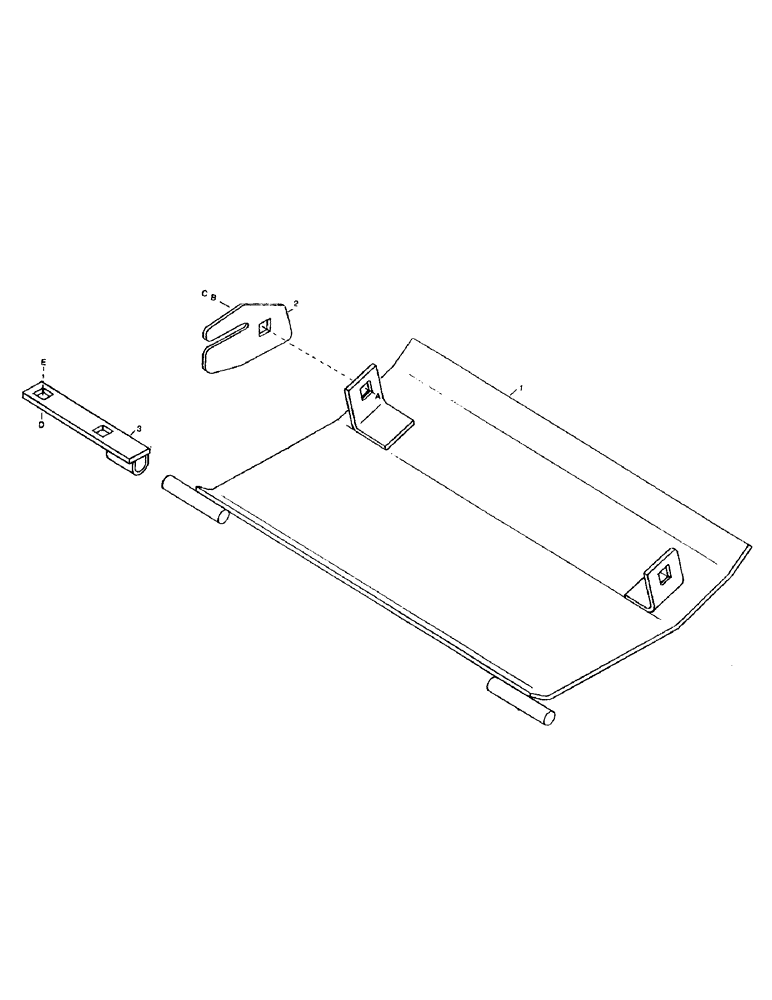

Запчасти Case IH 6000 (9-44) - FLOAT SHOES, 21, 25 AND 30 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1337141C1

SHOE

- float

2шт.

2

1337142C1

LUG

- stop

4шт.

a

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

b

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

c

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

1337143C1

HINGE

- shoe

4шт.

d

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

- round head square neck, 7/16 NC x 1-1/2 inch

8шт.

e

271501

SOCKET

NUT - hex, 7/16 inch NC

8шт.
