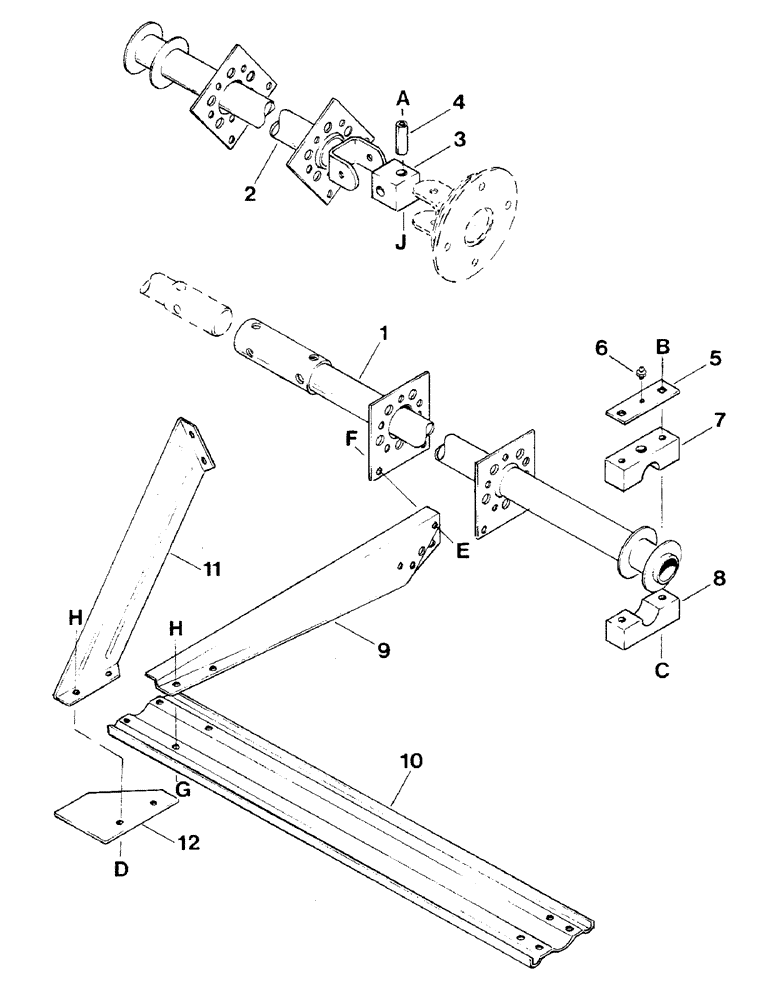

Запчасти Case IH 6000 (9-42) - BAT REEL, 36 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

1336276C2

SHAFT

- L/H reel

1шт.

2

1336277C1

SHAFT

- R/H reel

1шт.

3

1336278C1

BLOCK

- shaft

1шт.

4

1336279C1

SPACER

- block

2шт.

a

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

j

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, , Distorted thread 1/2"-13, GC

2шт.

5

1276524C1

CAP

- bearing, c/w grease fitting

2шт.

6

126098

FITTING

- lube

2шт.

7

1276522C1

BLOCK

WOODEN BEARING - upper, reel shaft

2шт.

8

1276523C1

BLOCK

WOODEN BEARING - lower, reel shaft

2шт.

b

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

4шт.

c

27124R1

BOLT,Short NK, 3/8"-16 x 4", G5

- round head square neck, 3/8 NC x 4 inch

4шт.

9

1276529C1

ARM

- reel

60шт.

e

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flange head, 3/8 NC x 3/4 inch

124шт.

f

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

124шт.

10

1336580C1

BAT

- reel, 18' section

10шт.

g

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- flange head, 5/16 NC x 1/2 inch

120шт.

h

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

120шт.

11

825976C2

GUARD

SHIELD - end

20шт.

d

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flange head, 5/16 NC x 3/4 inch

40шт.

h

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- serrated flange lock, 5/16 inch NC

40шт.

12

1336581C1

FLAP

- rubber

10шт.
