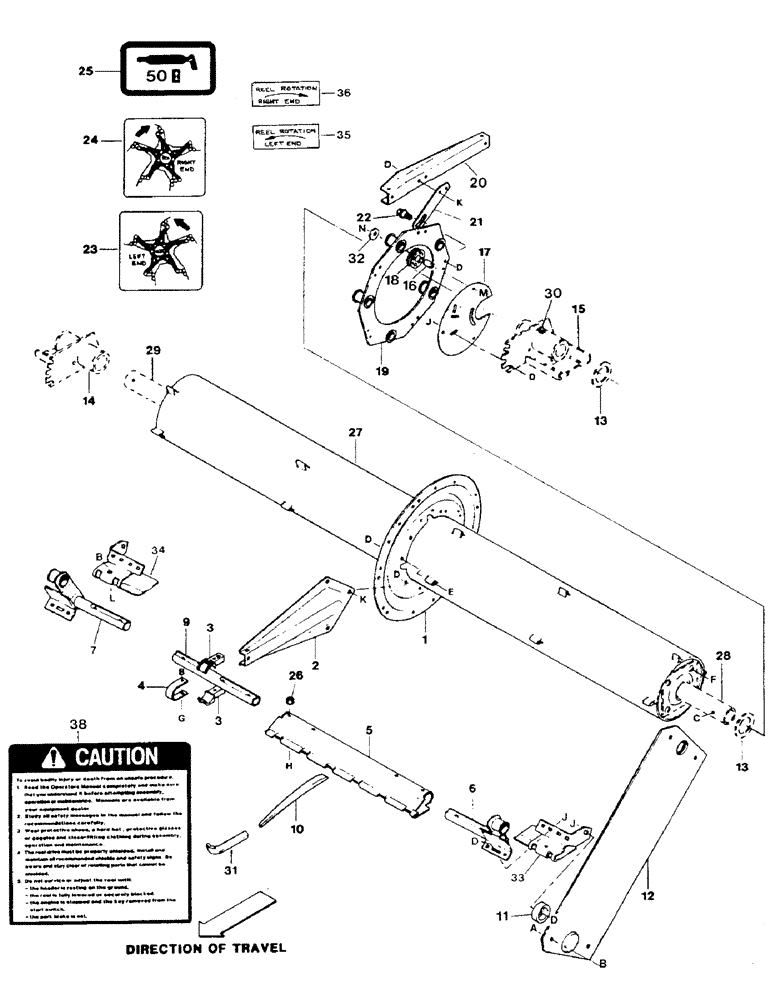

Запчасти Case IH 6000 (9-36) - PICK-UP REEL, 21, 25 AND 30 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

1

1337208C1

DISC

- arm

1шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

1шт.

e

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

2

1337209C1

ARM

- reel

1шт.

k

BOLT - flange head, 3/8 NC x 5/8 inch

1шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

1шт.

3

1337210C1

BEARING HALF

HALF - bat

1шт.

4

1337211C1

STRAP

- bearing

1шт.

b

483303R1

LOCK NUT

- lock, flange head, 5/16 inch NC prevailing torque

1шт.

g

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

CAPSCREW - hex head, 5/16 NC x 2 inch

1шт.

5

1337212C1

BAT

- 54 inch section

1шт.

5

1337213C1

BAT

- 66 inch section

1шт.

5

1337214C1

BAT

- 72 inch section

1шт.

6

1969222C1

SUPPORT

CRANK - reel, L/H

5шт.

7

1969223C1

SUPPORT

CRANK - reel, R/H

5шт.

9

1337217C1

TUBE,32 mm OD, 330 mm Length

- connector, bat

1шт.

h

156477

SCREW,Cross Flat Hd, 5/16" - 18 x 1 1/2"

CAPSCREW - flat Philips head, 80 degrees, 5/16 NC x 1-1/2 inch

1шт.

10

1337218C1

FINGER

- pick-up

1шт.

11

1969227C1

BEARING COVER,25 mm ID x 46 mm OD x 21 mm

- end shield

10шт.

j

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

10шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

10шт.

12

1337221C1

END

SHIELD - end

10шт.

a

77-56

SCREW,Truss, 5/16" - 18 x 3/8"

- machine, Philips truss head, 5/16 NC x 3/8 inch

20шт.

b

483303R1

LOCK NUT

- lock, flange head, 5/16 inch NC prevailing torque

20шт.

13

REF

INSTRUCTION

WASHER - see pick-up reel mounting group, page 9-40

4шт.

14

REF

INSTRUCTION

BEARING - main, R/H, see pick-up reel mounting group, page 9-40

1шт.

15

REF

INSTRUCTION

BEARING - main, L/H, see pick-up reel mounting group, page 9-40

1шт.

16

1969217C1

SPACER

- cam roller

6шт.

17

1969219C1

LARGE PLATE

PLATE - control

2шт.

j

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

4шт.

18

1969224C1

ROLLER

- cam

6шт.

m

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 2-1/4 inch

6шт.

n

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

6шт.

19

1969218C1

RING

- cam

2шт.

20

1969221C1

ARM

- control, bat

10шт.

21

1337226C1

LINK

- control, cam

10шт.

k

BOLT - flange head, 3/8 NC x 5/8 inch

20шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

30шт.

22

1337227C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 23mm, Gr 5

BOLT - shoulder, special

10шт.

23

1337228C1

PRODUCT GRAPHIC

DECAL - L/H cam monting

1шт.

24

1337229C1

DECAL

- R/H cam mounting

1шт.

25

1281424C1

DECAL

- 50 hour grease

2шт.

26

1969212C1

SPECIAL NUT

- special, 5/16 inch NC

1шт.

27

1337231C1

TUBE,5961 mm Length

- main, 21' header

1шт.

27

1337232C1

TUBE

- main, 25' header

1шт.

27

1337233C1

TUBE,8712 mm Length

- main, 30' header

1шт.

28

REF

INSTRUCTION

TUBE - end, L/H, see pick-up reel mount grp. p. 9-40

1шт.

29

REF

INSTRUCTION

TUBE - drive, R/H, see pick up reel mounting group, p. 9-40

1шт.

c

REF

INSTRUCTION

HARDWARE - mounting, see pick up reel mounting group, p. 9-40

1шт.

f

1969359C1

FLANGE BOLT

BOLT - flange head, 3/8 NC x 2-1/2 inch thread full length

8шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

31

1969220C1

ADJUSTER

TOOL - finger/adjuster

1шт.

32

1954844C1

WASHER

- flat

6шт.

33

1976561C1

BAT

- end, L/H

5шт.

34

1976562C1

BAT

- end, R/H

5шт.

j

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

20шт.

d

473371R1

FLANGE NUT

NUT - lock, flange head, 3/8 inch NC prevailing torque

20шт.

l

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

10шт.

b

483303R1

LOCK NUT

- lock, flange head, 5/16 inch NC prevailing torque

10шт.

35

1978762C1

DECAL

- reel rotation, left

3шт.

36

1978763C1

DECAL

- reel rotation, right

3шт.

38

1973031C1

DECAL

- CAUTION - general safety

2шт.
