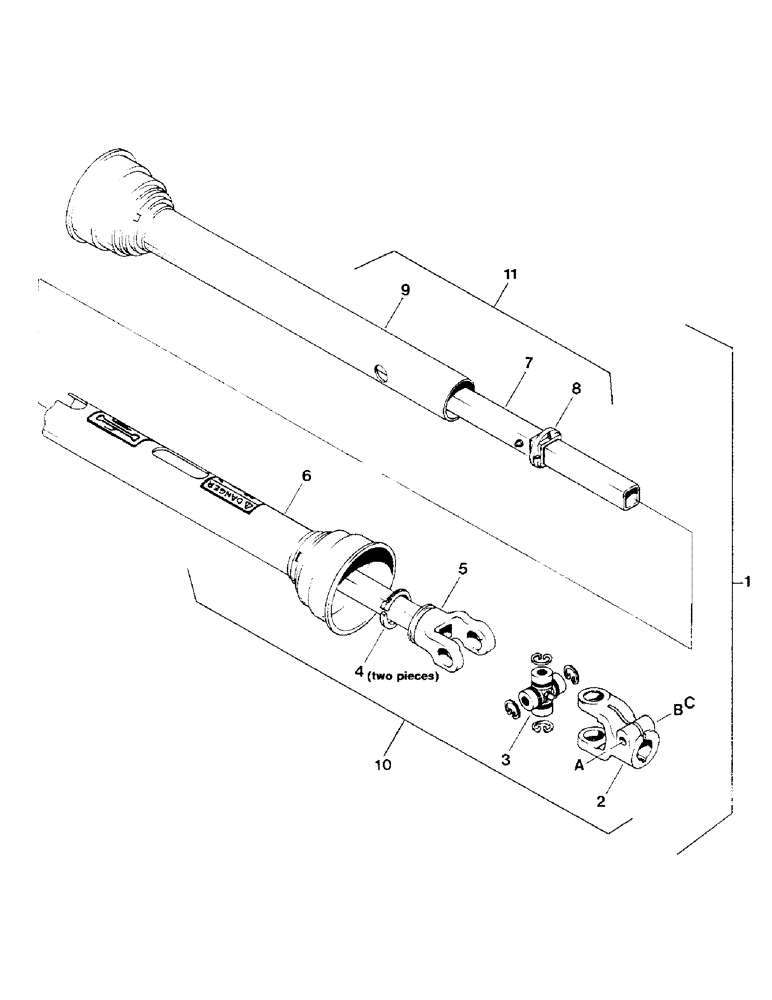

Запчасти Case IH 6000 (9-14) - DRIVE LINE (09) - CHASSIS/ATTACHMENTS

1

DRIVE LINE - complete, includes items 10 and 11

1шт.

2

1337984C1

FORK

YOKE - clamp

2шт.

a

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

CAPSCREW - hex head, 1/2 NC x 2-3/4 inch

2шт.

b

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

c

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

3

1337985C1

KIT

CROSS & BEARING KIT

2шт.

4

1337986C1

KIT

BEARING - shield (Consists of two pieces)

2шт.

5

1337983C1

JOINT ASSY.

YOKE WITH SHAFT

1шт.

6

1337987C1

SHIELD

- outer, c/w decal

1шт.

7

1337989C1

JOINT ASSY.

YOKE WITH TUBE - includes item 8

1шт.

8

1337999C1

SUPPORT

- shield

1шт.

9

1337990C1

SHIELD

- inner

1шт.

10

1337982C1

JOINT ASSY.

MALE ASSEMBLY - includes items 2-6

1шт.

11

1337988C1

JOINT ASSY.

FEMALE ASSEMBLY - includes items 2, 3, 4, 7 and 9

1шт.
