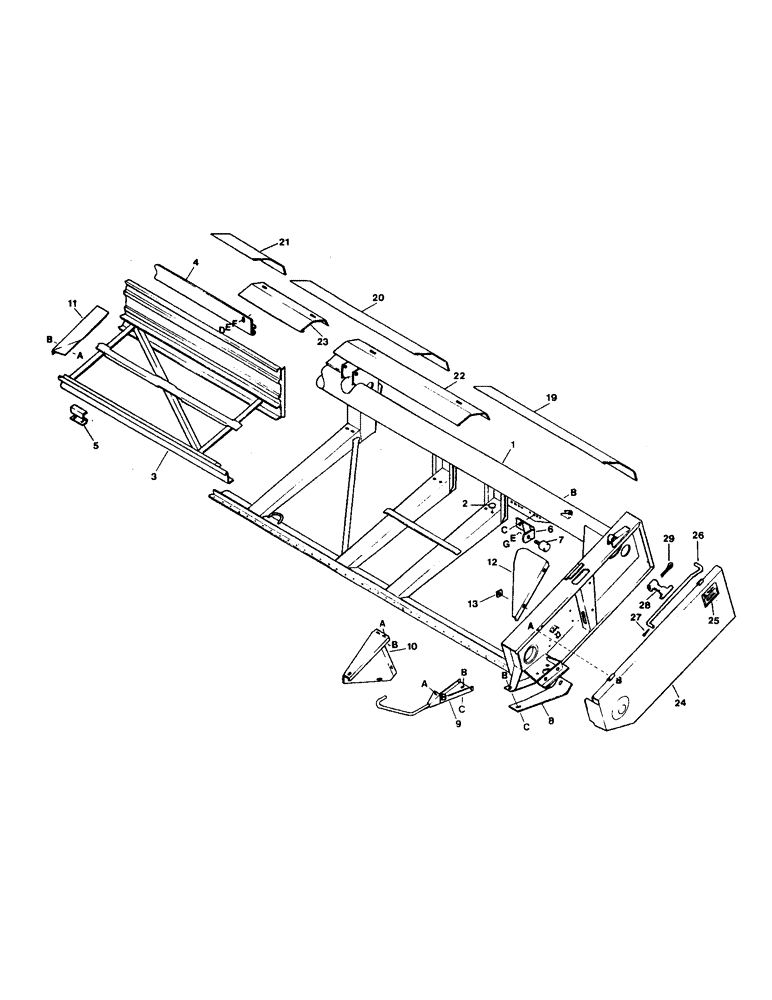

Запчасти Case IH 6000 (9-12) - MAIN FRAME AND SHIELDS, 36 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

1336033C1

FRAME

- main

1шт.

2

1336043C1

BUTTON

- wear

8шт.

3

1336049C1

PLATFORM

DECK - L/H

1шт.

3

1336053C1

PLATFORM

DECK - R/H

1шт.

4

1336148C1

SUPPORT

- rear deck

3шт.

d

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

CAPBOLT - hex head, 3/8 NC x 3/4 inch

6шт.

e

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

f

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 inch I.D.

6шт.

5

1336055C1

GUIDE

HOLD-DOWN - deck

4шт.

6

1336145C1

ANGLE

STOP - L/H deck

1шт.

6

1336146C1

ANGLE

STOP - R/H deck

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

7

1336147C1

BUMPER

- stop

2шт.

e

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

g

120377

NUT,3/8" - 16, Gr 5

2шт.

8

1336034C1

SHOE

- wear, L/H

1шт.

8

1336036C1

SHOE

- wear, R/H

1шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

9

1336039C1

DIVIDER

SHOE - divider

2шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

6шт.

c

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

10

1336037C1

DIVIDER

- L/H

1шт.

10

1336038C1

DIVIDER

- R/H

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

8шт.

11

1336042C1

DEFLECTOR

- R/H

1шт.

12

1336040C1

DEFLECTOR

- L/H

1шт.

13

1336041C1

WASHER

- square

2шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

19

1336149C1

SHIELD

- hydraulic line, L/H rear

1шт.

20

1336150C1

SHIELD

- hydraulic line, R/H rear

1шт.

21

1336151C1

SHIELD

- hydraulic line, extreme R/H rear

1шт.

22

1336152C1

SHIELD

- hydraulic line, L/H front

1шт.

23

1336153C1

SHIELD

- hydraulic line, R/H front

1шт.

24

1336154C1

SHIELD

- L/H end, c/w decal

1шт.

24

1336155C1

SHIELD

- R/H end, c/w decal

1шт.

a

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

b

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

8шт.

25

1334038C1

PRODUCT GRAPHIC

WARNING DECAL

2шт.

26

1336156C1

ROD

- latch

2шт.

27

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

494307C1

LATCH

- ruber

4шт.

29

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.
